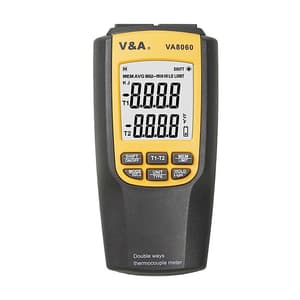

V&A Instrument -200°C ~ 1300°C 2 Channles Thermocouple Meter, VA8060

Shop all V&A Instrument

SKU: ME.TE.TH.00057

Model: VA8060

Roll over image to zoom zoom_in
  1. V&A Instrument -200°C ~ 1300°C 2 Channles Thermocouple Meter, VA8060

  • Weight: 180 Grams
  • Product Type: Thermometer
  • Measuring Range (°C): -200°C ~ 1300°C (K-Type) / -200°C ~ 1200°C (J-Type)
  • Measuring Range (°F): -328°F ~ 2372°F (K-Type) / -328°F ~ 2192°F (J-Type)
See all product information chevron_right
  • receiptGST Invoice
  • headphonesCustomer Service
  • lockSecure Payments
  • policyReturns & Warranty
  • home_pinOrder Tracking
  • paymentsBuy in Installments

2587.74 (Incl. of all taxes)

2193+ ₹394.74 GST (18%)

MRP ₹2580

SAVE 15%



7 Business Days

1 Set

90251910

picture_as_pdfDownload Product Leafletkeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right

Highlights

  • This 2 channles thermocouple meter is a rugged, easy to use thermometer with 4 digits dual LCD display. This thermocouple thermometer can match any standard type K or J sensor.
  • The 2 channles thermocouple meter has functions of data hold and backlight as well as MAX/MIN and low battery indicator.
  • This thermocouple thermometer can be used in HVAC trade to check air conditioners, heaters or furnaces. It is also great for science fair projects and whenever you need a precise measurement of two temperatures.


Applications:

  • Temperature jacks: standard small thermocouple jacks, the center spacing is 7.9mm (between the two prongs).
  • When the battery voltage is under proper operation requirement, the symbol will show on the LCD and the battery need to be replaced with new.
  • To keep the instrument clean, wipe the case with a dry cloth and detergent, do not use abrasives or solvents.
  • Name of parts: sensor cover, temperature input jack, LCD display, function key


General Maintenance:

  • Do not measure at a high temperature, high humidity places.
  • When not using the instrument for a long time, please remove the battery and avoid storing in high temperature and high humidity.


Package Content:

  • 1x Thermocouple Meter
  • 3x 1.5V AAA DC Batteries
  • 2x K-type thermocouple wire
  • 1x String
  • 1x Plastic box
  • 1x Users manual

Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.

Specifications

SKUME.TE.TH.00057
Product TypeThermometer
Model NoVA8060
Measuring Range (°C) -200°C ~ 1300°C (K-Type) / -200°C ~ 1200°C (J-Type)
Measuring Range (°F) -328°F ~ 2372°F (K-Type) / -328°F ~ 2192°F (J-Type)
Resolution 0.1°C/0.1°F (below 1000°C); 1°C/1°F (Above 1000°C)
Operating Environment 0°C~50°C (32°F ~ 122°F), 0 ~ 80% RH
Storage Environment -20°C ~ 60°C (-4°F ~ 140°F), 0 ~ 80% RH
Sample Rate 1 Time / Sec
Display 4 Digits LCD Display
Auto Power Off About 20 Minutes
Low Battery Indicator Yes
Data hold & MAX/MIN Function Yes
Dimension (mm) 121 x 60 x 30 mm
