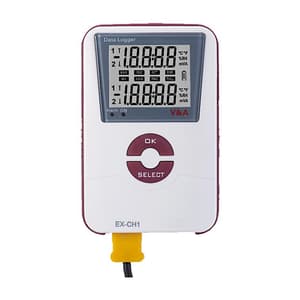

The Data logger is multifunction measurement data logger (such as temperature, humidity, AC/DC current, AC/DC voltage). It can use difference standard sensor for temperature measurement like Thermocouple and RTD. Data Logger have two measurement modes, one is the online mode and logger mode. Online Mode: you can use the USB to connect the computer with the Data Logger, according the software interface you can get the real-time measurement data and the wave curve online. Logger Mode: the software interface can set difference log operation after offline state. If the configuration is complete, it can be measured for offline state, and can keep 16,000 record data each 2 log bank in build-in memory without battery. After completing the measurement, you can connect to computer read the data on the software interface, also can get the curve and graph. The temperature & humidity data logger is widely used in cold-chain transportation field, HVAC refrigerator field, electrical industry, medical industry as well as laboratory fields.

Features:

• AC/DC Voltage & Current Measurement
• Using the built-in humidity sensor to measure humidity
• Using the built-in NTC sensor to measure temperature
• Using the external channel PT100 or PT1000 sensor to measure temperature
• Using the external channel thermocouple J-type or K-type sensor to measure temperature
• Composite indicator
• Environment temperature and humidity: -40 ~ 70°C, -40°F ~ 158°F (>80% RH, <0°C without consideration).
• Storage temperature and humidity: -40 ~ 80°C, 40°F ~ 176°F (<70% RH, removing its batteries).
• Battery type: ER14250 Lithium-thionyl Chloride Battery 1/2AA 3.6V 1200mAh.
• Fuse: 100mA fast fuse only DC mA type (R1 on PCB)
• Cable: Mini-USB cable, 1 meter
• Max./Min. Display, Alarm function, Low power indication, Real-time clock RTC, Auto dormancy/wake up

General Maintenance:

• To avoid electrical shock or damage to the Data Logger, not wet the internal meter. Please remove all the cable before open the case.
• Regular cleaning with a damp cloth and a small amount of detergent instrument case, do not use abrasives or chemical solvents. If dirty or wet input socket may affect the readings.

Replace the battery:

To avoid false readings caused by electric shock or personal injury, instrument displays, “” symbol, should be replace the battery immediately. Please remove all the cable before open the case.
Follow these steps to replace the battery	Remove all the connection from the input jack. Remove the screws on the case, and open the case. Replace with new ER14250 battery. Loaded on cover and lock the screws.

Packages Content:

• 1x Data Logger
• 1x Instrument manual
• 1x Lithium-thionyl Chloride Battery inside
• 1x PC-LINK software CD
• 1x Mini-USB data cable

Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
