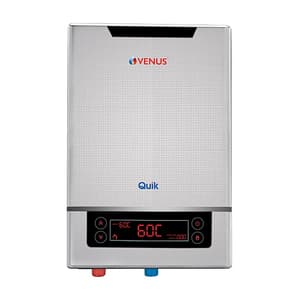

Venus Quik 24 kW Tankless Instant Water Heater, Q243

Shop all Venus Home Appliances

SKU: PO.HO.WA.00009

Model: Q243

Roll over image to zoom zoom_in
  1. Venus Quik 24 kW Tankless Instant Water Heater, Q243
  2. Venus Quik 24 kW Tankless Instant Water Heater, Q243
  3. Venus Quik 24 kW Tankless Instant Water Heater, Q243
  4. Venus Quik 24 kW Tankless Instant Water Heater, Q243
  5. Venus Quik 24 kW Tankless Instant Water Heater, Q243

  • Product Type: Water Heaters
  • Wattage (kW): 24 kW
  • Rated Voltage: 400V, 50/60Hz 3Phase, AC
  • Required Rating of Circuit Breaker: 40 amps
  • Cable Require: 6 Sq. mm (Three Phase)
See all product information chevron_right
  • receiptGST Invoice
  • headphonesCustomer Service
  • lockSecure Payments
  • policyReturns & Warranty
  • home_pinOrder Tracking
  • paymentsBuy in Installments

31128.4 (Incl. of all taxes)

26380+ ₹4748.4 GST (18%)

MRP ₹40585

SAVE 35%



7 Business Days

1 Pcs

85161000

picture_as_pdfDownload Product Leafletkeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right

Highlights

Quik Tankless instant 24 kw gives super fast hot water for a super fast lifestyle in the most safest way. Tankless water heaters work only when hot water is needed and therefore no energy losses, providing efficient heating while conserving energy.


Features:

3 Phase Model
12kw, 15kw,18kw & 24kw.
Leakage Protection
If the unit detects electricity leakage, the electricity will be cut off by the leakage protector.
Multi Point Usage
Designed for high usage and supply to multiple points - shower, kitchen, bath etc.
Flexi Mount
It can be fixed inside loft or above false ceilings and can be fixed Vertically or Horizontally, according to the space available.
Microprocessor Control
System adjusts heating power output to maintain the set temperature even when the water flow rate is altered.
Digital Temperature Display
The set and actual temperature are prominently displayed.
Wide Pressure Range
Enjoy a better shower as it works both in low and high pressure conditions.
Flow-based operation
Avoids dry heating as it senses the water flow and switches ON the heating element and switches OFF when there is no water flow.
6 Bars Pressure
High Working pressure suitable for connection to pressure pumps
ABS Plastic Outer Body
Compact. Corrosion-free & Shockproof.

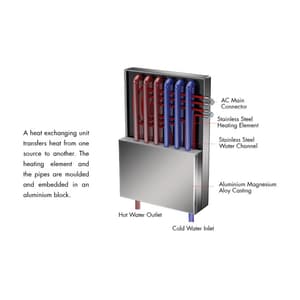

Unique Heat Exchanger Technology
The heating element and water pipe are molded together for quick transfer of heat from element to the water without contact. This ensures quick heating, long life & safety.
Overheat Protection
Super safe as it prevents the heat exchanger from over heating (i.e. more than 90°C).

Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.

Specifications

SKUPO.HO.WA.00009
Product TypeWater Heaters
Model NoQ243
Wattage (kW) 24 kW
Rated Voltage 400V, 50/60Hz 3Phase, AC
Wiring Size 4 x 6 mm²
Required Rating of Circuit Breaker 40 amps
Rated Pressure 0.02 - 0.6 Mpa
IP Protection IP25
Temperature Setting Range 30°C - 60°C
Rate of Flow 1.8 - 12 L/min
Temperature Rise 7 L/min (49°C), 10 L/min (34°C) & 12 L/min (29°C)
Dimensions (mm) 385 (A) x 260 (B) x 90 (C) mm
Cable Require 6 Sq. mm (Three Phase)
