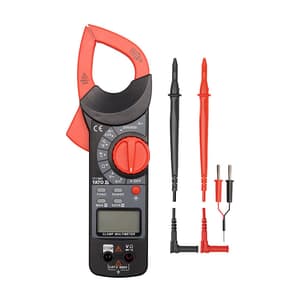

The universal clamp meter YT-73091 with automatic range for most indications allows you to perform basic electrical measurements. The meter is equipped with measuring clamps which allow for measuring the intensity of alternating current in a single conductor with the induction method.

The YT-73091 meter  does not have the true rms measurement function, therefore the above result is the real RMS voltage and AC current only for the correct sinusoidal waveform.The measurement takes place without the need to disconnect the circuit or disconnect it from the power source, and allows you to measure a much higher current than with conventional electric meters.

Features & Benefits:

• AC voltage measurement: AC 0-600V
• DC voltage measurement: DC 0-600V
• AC current measurement: AC 0-600A
• Resistance measurement: 0-20MΩ
• Test diody: IF 1mA, UR 1.48V
• Continuity test: 0-120Ω
• The accuracy of the measurement of the YT-73091 meter for this range is: ± (2.5% + 5), resolution 0.1A
• Calculation of measurement error formula: (measurement result x 2.5%) + 5 x resolution
• Calculation: (30 x 2.5%) + 5 x 0.1 = 0.75 + 0.5 = 1.25A
• The result taking into account the measurement error for the AC voltage measurement indication: 235V = 235 ± 8.525V *
• Result taking into account the measurement error for the DC voltage measurement indication: 12V = 12 ± 0.106V

Built-In Functions

• Auto - automatic adjustment of the measuring range take measurements sequentially from the largest range up to the range giving the most accurate result - otherwise you risk damaging the device. However, in the case of a multimeter with the Auto function, it is enough to take one measurement and the meter will automatically find the optimal range. By default, the meter starts in the Auto mode
• Range - manual change of the measuring range. A useful function when checking many of the same components with a known value, e.g. a series of resistors.Manual range setting will significantly reduce the time of such measurements
• Function. - changing the measurement mode, e.g. from temperature measurement from ° C to ° F, switching the diode test to the circuit continuity test
• Data Hold - saving the currently measured value on the display
• Max Hold - keeping the maximum value of the measurement on the display

Additional Information

• LCD display, the maximum displayed result: 1999
• screen backlight
• acoustic signal in the circuit continuity test for resistance below 50 Ω
• diode and continuity tests can be enabled separately
• The clamps open up to 37mm and allow you to measure a single wire with a maximum diameter of 37mm

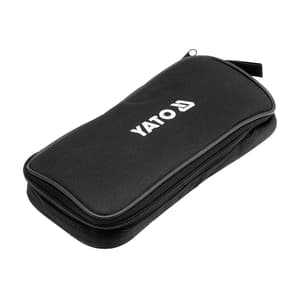

• the set includes measuring probes and a cover
• construction with overload protection
• automatic shutdown of the meter
• low battery indicator
• power supply: two 1.5V (AAA) batteries
