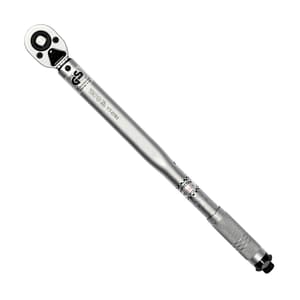

Yato 42-210 nm Torque Wrench (1/2 Inch Sq. Drive), YT-0760

The key is made of chrome-vanadium steel, which ensures its durability and strength. It has a mechanical tension of a torque ratchet, which jumps one notch after reaching the desired tightening force, making a characteristic sound. The scale of moments is placed in the handle of the key, its adjustment is made by turning it. After setting the desired torque, lock the key with a safety lock at the end of the handle.
The key has a GS certificate.


Comparison of moments in various units of length and force:

• 1 kG * cm = 13.887 OZ * IN (ounce x inch)
• 1 kG * cm = 0.867 LB * IN (pound x inch)
• 1 kG * m = 9.80665 N * m ( Newton x meter)
• 1 kg * m = 7.233 LB * FT (lb. x ft)
• 1 FT * LB = 12 LB * IN (lb. x inch)
• 1 dm*N = 14,16 OZ*IN (uncja x cal)



Intended use / Application

It is used to twist threaded fasteners so that the connection torque is known and appropriate to the type of material and strength of the bolt and nut.
Comparison of moments in various units of length and force:


How to use

• Select the appropriate scale in Nm or in-lbs. Unlock the micrometer knob.
• Set the micrometer knob so that the "0" on the scale of the knob aligns with the vertical line on the key's arm.
• Turn the micrometer knob clockwise until the desired torque is set.
• The desired torque is set when the graduation on the micrometer dial aligns with the vertical line on the key arm.
• Then lock the micrometric knob and set the appropriate direction of rotation of the ratchet, after which the key is ready for use.
• Put the appropriate cap on the driver of the key. When tightening, the set torque is reached when the key clicks. If you hear or feel a click, stop tightening.



Contents

• Torque wrench
• Factory calibration certificate (individual for each key, marked with the serial number of the key)
• User manual
• Warranty card

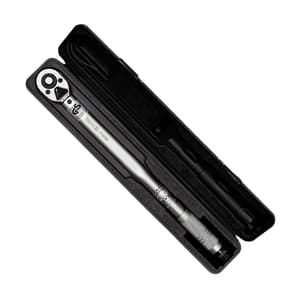

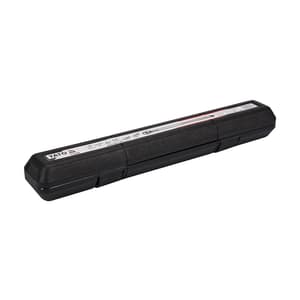

• Suitcase
