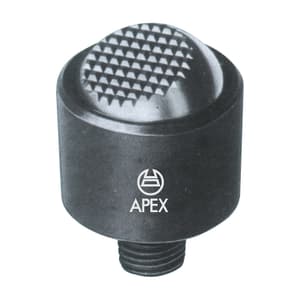

Apex 12 mm Self Aligning Pad with Ribbed Ball, 913-3

Shop all Apex

SKU: HA.VI.SE.00003

Model: 913-3

Roll over image to zoom zoom_in
  1. Apex 12 mm Self Aligning Pad with Ribbed Ball, 913-3
  2. Apex 12 mm Self Aligning Pad with Ribbed Ball, 913-3
Visit Apex Store keyboard_double_arrow_right
  • Weight: 40 Grams
  • Product Type: Self Aligning Pad
  • d1 (mm): 20 mm
  • d2: M12
  • d3 (mm): 10.5 mm
See all product information chevron_right
  • receiptGST Invoice
  • headphonesCustomer Service
  • lockSecure Payments
  • policyReturns & Warranty
  • home_pinOrder Tracking
  • paymentsBuy in Installments

₹869.66 (Incl. of all taxes)

₹737+ ₹132.66 GST (18%)

MRP ₹1134

SAVE 35%

5 Business Days

1 Pcs

73181900

picture_as_pdfDownload Product Leafletkeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right

Highlights

  • Useful for clamping the job from top or bottom.
  • The ball swivels and provides contact with no damage to uneven surfaces.


Application:

  • Used as stops, supports & thrust elements in jigs & fixtures. They can also be fitted to existing clamping elements.

Construction:

  • Body Steel Heat Treated - Ball Hardened.

Please Note that Products may differ eg. color, size from the product Image displayed on the website. Kindly check the specifications provided to make a better purchase decision.

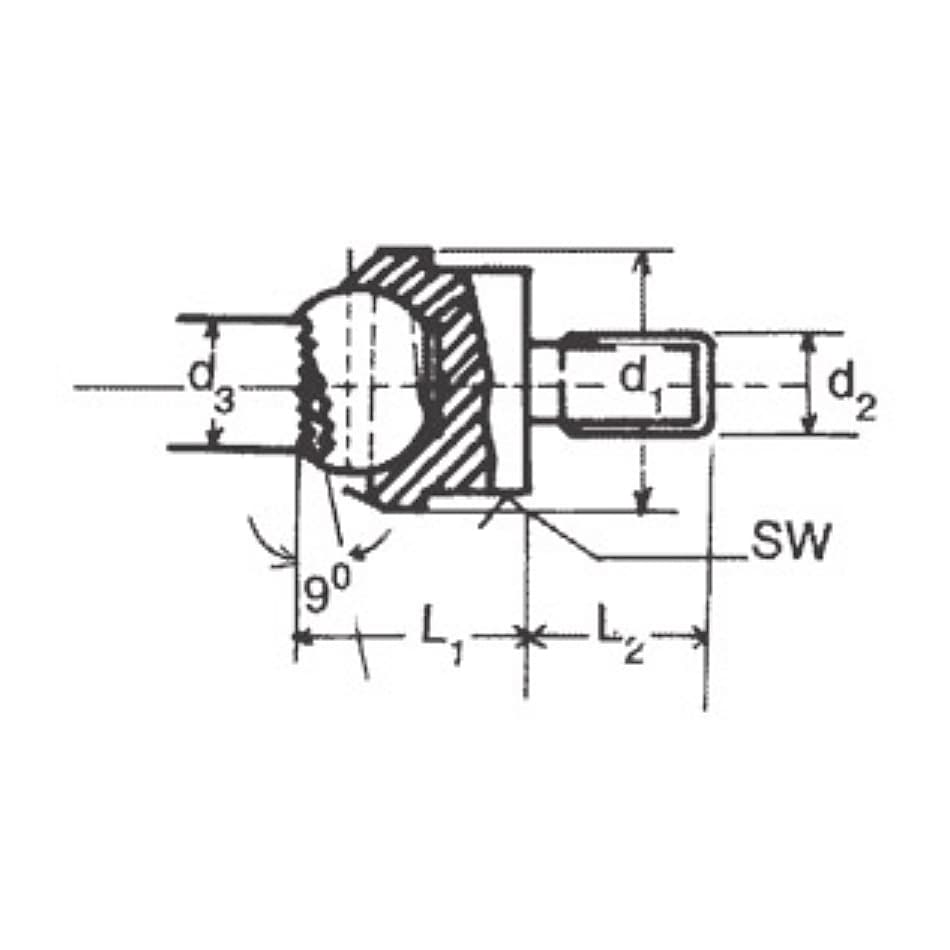

Specifications

SKUHA.VI.SE.00003
Product TypeSelf Aligning Pad
Model No913-3
d1 (mm) 20 mm
d2 M12
d3 (mm) 10.5 mm
L1 (mm) 18 mm
L2 (mm) 12 mm
Ball (mm) 16 mm
A/F SW (mm) 17 mm
Max. Load Cap. kN (For static load only) 25 kN
Finish Black Oxidized
