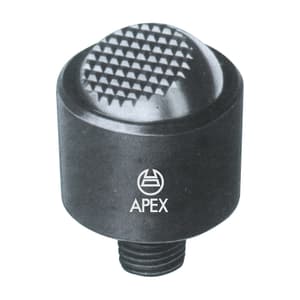

Apex 20 mm Self Aligning Pad with Ribbed Ball, 913-5

Shop all Apex

SKU: HA.VI.SE.00005

Model: 913-5

Roll over image to zoom zoom_in
  1. Apex 20 mm Self Aligning Pad with Ribbed Ball, 913-5
  2. Apex 20 mm Self Aligning Pad with Ribbed Ball, 913-5
Visit Apex Store keyboard_double_arrow_right
  • Weight: 550 Grams
  • Product Type: Self Aligning Pad
  • d1 (mm): 50 mm
  • d2: M20
  • d3 (mm): 34.5 mm
See all product information chevron_right
  • receiptGST Invoice
  • headphonesCustomer Service
  • lockSecure Payments
  • policyReturns & Warranty
  • home_pinOrder Tracking
  • paymentsBuy in Installments

₹2907.52 (Incl. of all taxes)

₹2464+ ₹443.52 GST (18%)

MRP ₹3790.8

SAVE 35%

5 Business Days

1 Pcs

73181900

picture_as_pdfDownload Product Leafletkeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right

Highlights

  • Useful for clamping the job from top or bottom.
  • The ball swivels and provides contact with no damage to uneven surfaces.


Application:

  • Used as stops, supports & thrust elements in jigs & fixtures. They can also be fitted to existing clamping elements.

Construction:

  • Body Steel Heat Treated - Ball Hardened.

Please Note that Products may differ eg. color, size from the product Image displayed on the website. Kindly check the specifications provided to make a better purchase decision.

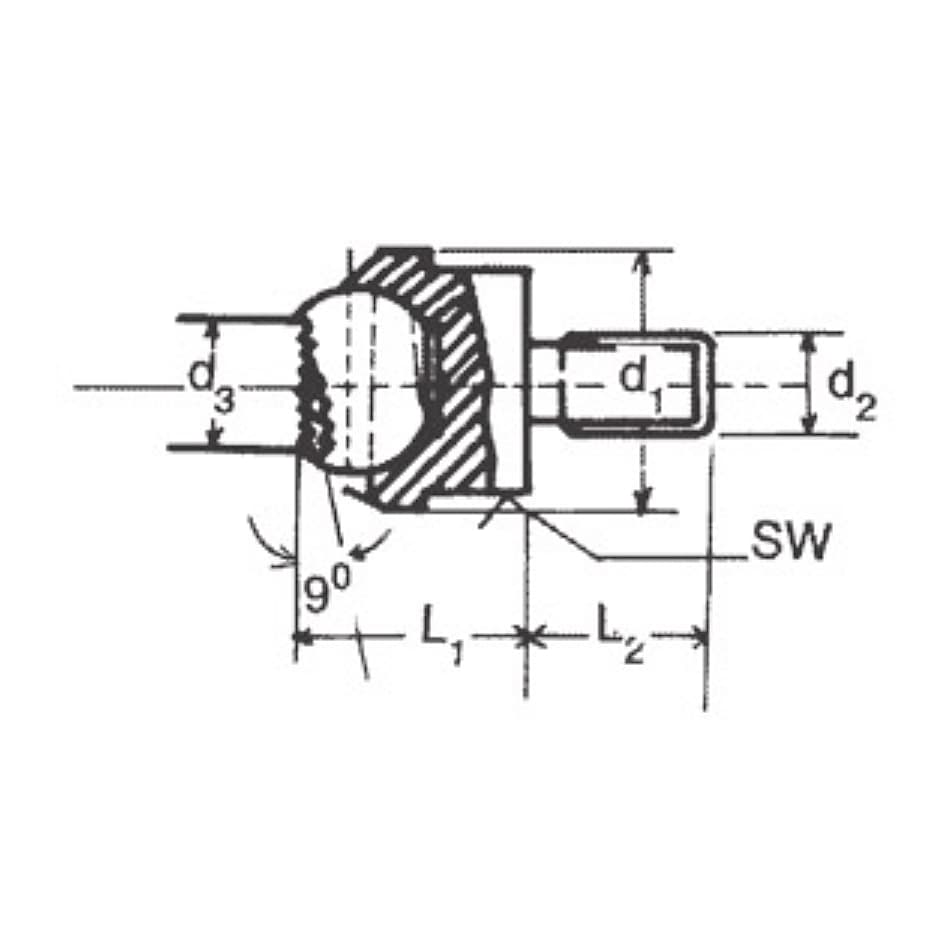

Specifications

SKUHA.VI.SE.00005
Product TypeSelf Aligning Pad
Model No913-5
d1 (mm) 50 mm
d2 M20
d3 (mm) 34.5 mm
L1 (mm) 35 mm
L2 (mm) 20 mm
Ball (mm) 40 mm
A/F SW (mm) 11 mm
Max. Load Cap. kN (For static load only) 165 kN
Finish Black Oxidized
