Self Aligning Pad (10 Products)

Self aligning pads are critical components in machine workholding, designed to provide a stable, even contact point when clamping irregular or non-parallel workpieces. By allowing the pad to pivot, these tools distribute clamping force evenly, which prevents surface damage and ensures the workpiece remains securely held during machining. They are widely used in jigs, fixtures, and machine vices to improve the consistency of the clamping process.

Types of Self Aligning Pads

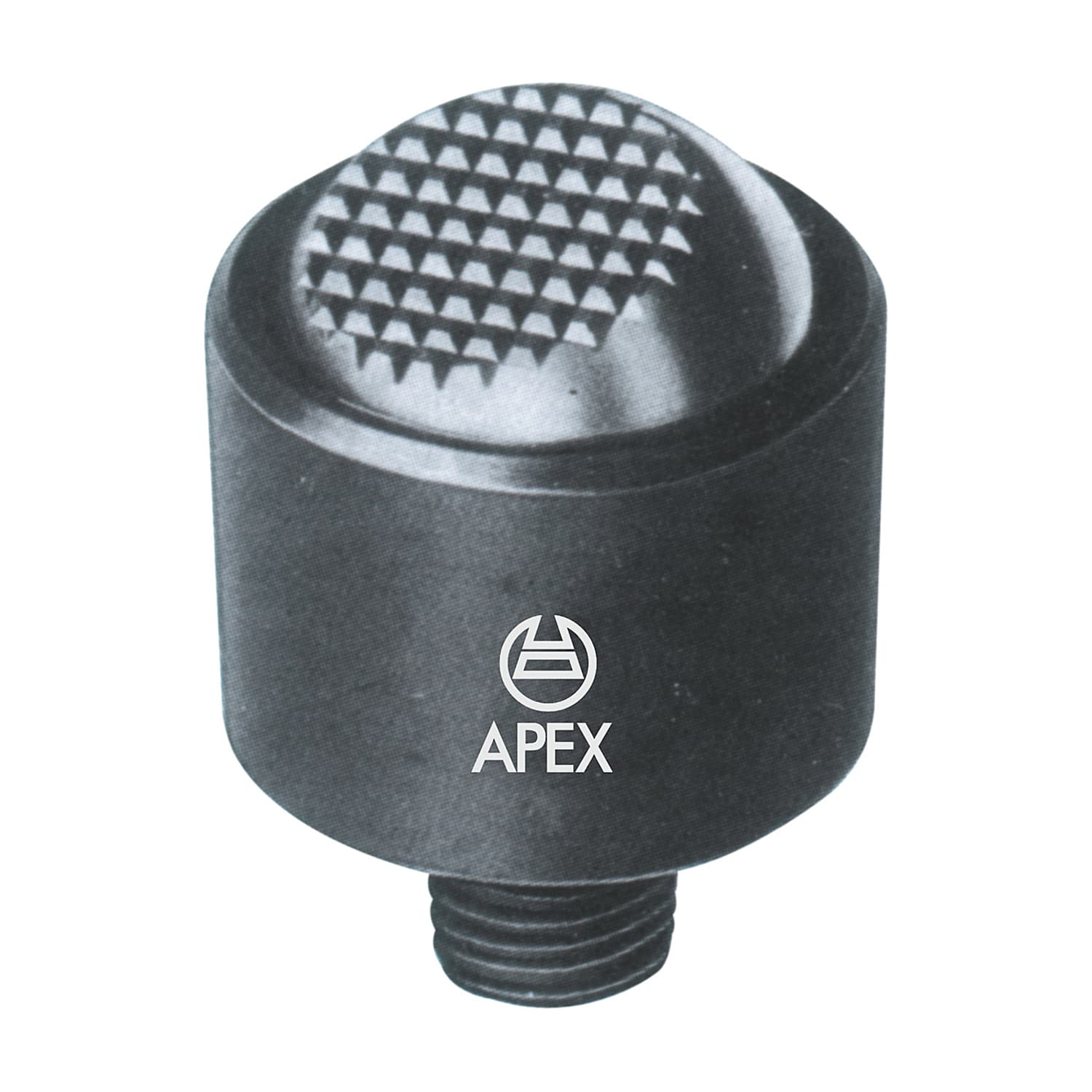

• Ribbed ball pads for enhanced grip

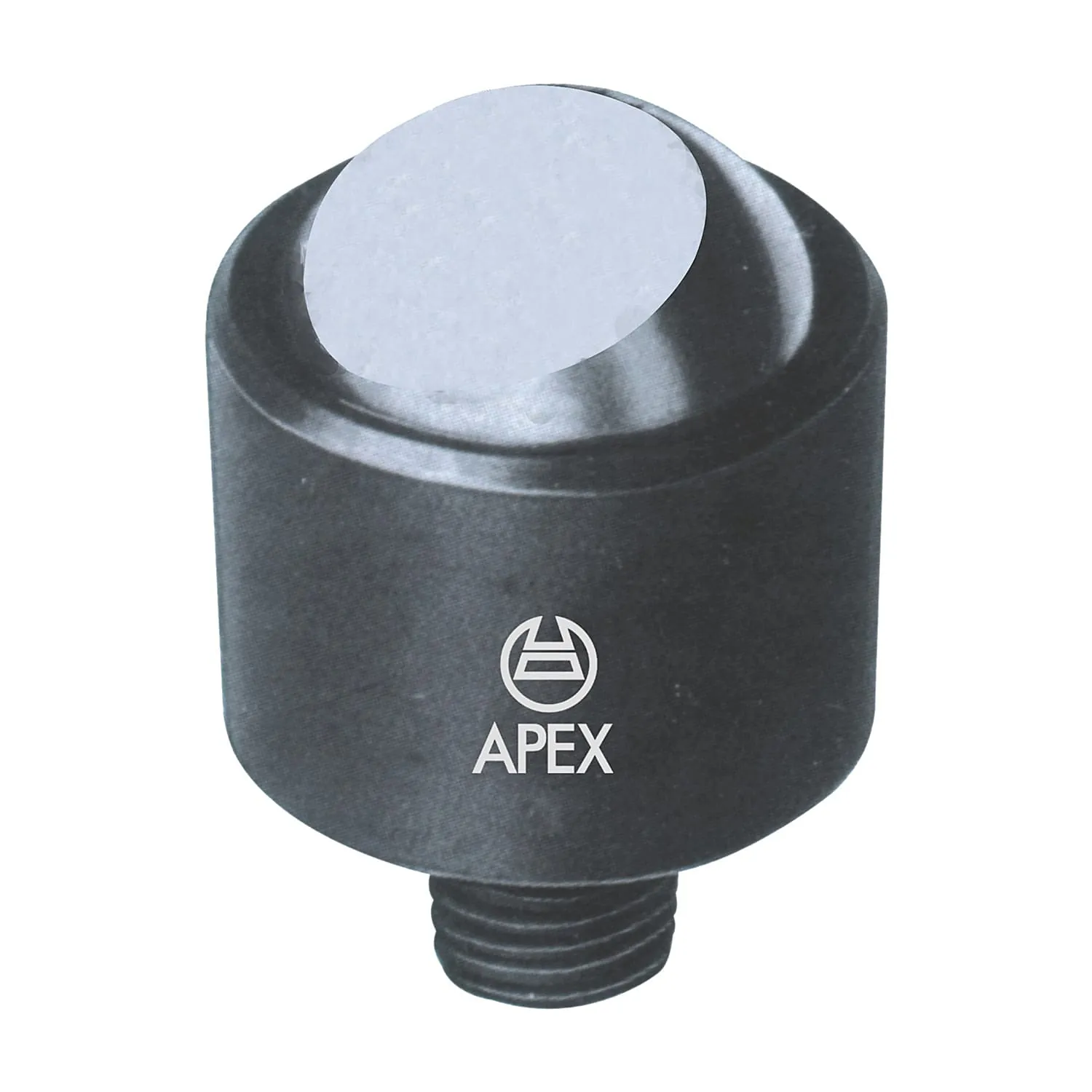

• Plain ball pads for delicate or finished surfaces
• Various diameters including 8 mm, 12 mm, and 20 mm

How to Select

When selecting a self aligning pad, consider the nature of the workpiece surface. Ribbed ball pads are ideal for applications where extra friction is required to prevent movement, while plain ball pads are suitable for protecting the finish of sensitive parts. Match the diameter of the pad to your existing clamping screw or fixture mechanism to ensure a correct fit. These small but essential parts are vital for maintaining the accuracy and safety of your machining operations.

ToolBuy features a range of high-quality self aligning pads manufactured by Apex, designed to meet the rigorous demands of professional workshops. We provide a GST invoice with every order, ensuring your purchases are fully documented for business use. Shop online with us to access reliable industrial components, backed by efficient delivery services across India.
