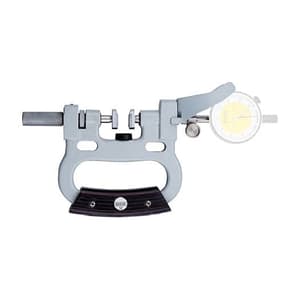

Baker 125 - 150 mm Dial Snap Gauge (Without Dial Gauge), DS150

Name: Baker 125 - 150 mm Dial Snap Gauge (Without Dial Gauge), DS150
Brand: Baker
SKU: ME.DI.DI.00130
Price: 9520 INR
Availability: InStock
Rating: 3.5 (55 reviews)

Shop all Baker

SKU: ME.DI.DI.00130

Model: D83059000, DS150

Roll over image to zoom zoom_in

Visit Baker Store keyboard_double_arrow_right

Key Features

Product Type: Snap Gauge
Range (mm): 125 - 150 mm

See all product information chevron_right

ToolBuy Benefits

receiptGST Invoice
headphonesCustomer Service
lockSecure Payments
policyReturns & Warranty
home_pinOrder Tracking
paymentsBuy in Installments

₹11233.6 (Incl. of all taxes)

₹9520+ ₹1713.6 GST (18%)

MRP ₹11610

SAVE 18%

Dispatch: 2 Business Days

Items in Pack: 1 Pcs

HSN Code: 90173029

picture_as_pdfDownload Product Leafletkeyboard_double_arrow_right

picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right

picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right

Highlights

Designed for quick GO/NOT-GO gauging of diameters of cylindrical parts either inprocess or post process
Measuring spindle and anvil spindle are manufactured out of graded steel
Spindles are hardened and ground including screw threads
Carbide ground and lapped tip of measuring faces ensures maximum wear resistance
For quick entry, chamfer provided on front edges
Constant measuring force, which is a result of an in-built spring, eliminates user error
Once the gauge is set to zero with a master, we can measure the size directly
For easy reading, the indicator can be rotated and locked
Best suited for inspection of Continuous / Batch production items
Setting is done with the help of Gauge Blocks / Cylindrical Setting Masters
Any standard Dial Indicator with ø8 h6 mm holding shank can be fitted easily
Also used with Electronic probe & digital dial gauge
