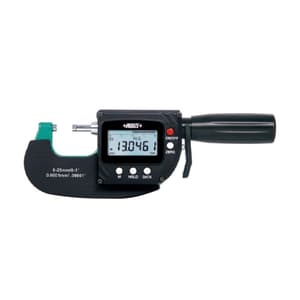

Insize 0 - 25 mm Wireless High Precision Digital Snap Gauge, 3359-25AWL
Roll over the image to zoom in
Key Features
- Product Type: Snap Gauge
- Range (mm): 0 - 25 mm
- Range (inches): 0 - 1 inch
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹43,471 (Incl. of all taxes)
₹36,840 + ₹6,631 GST (18%)
MRP was MRP ₹51,888
Save 29%
3 Business Days
1
–
Download Product LeafletNot available
Download Insize CatalogueNot available
Download Insize CatalogueNot available
Highlights
- Absolute encoder, the original data remains after power off
- One turn of sleeve makes 10mm spindle feed
- Measurement accuracy is not affected by the use of sleeve

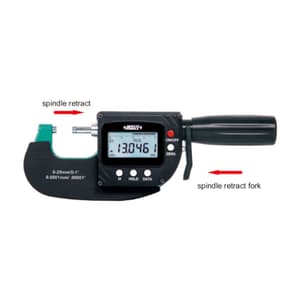

- Press the fork, the spindle retracts 3mm
- Carbide measuring faces

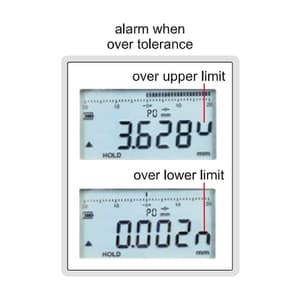

- Button function: data output, tolerance, data preset, data hold, measuring direction change, max./min./TIR, power off time, on/off, zero, mm/inch
- Power: rechargeable battery, for 24 hours continuous working
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
Specifications
| Range (mm) | 0 - 25 mm |
|---|---|
| Range (inches) | 0 - 1 inch |
| Accuracy | ±0.5μm |
| Repeatability | 0.3μm |
| Measuring Faces | 0.3μm (Flatness) / 0.6μm (Parallelism) |

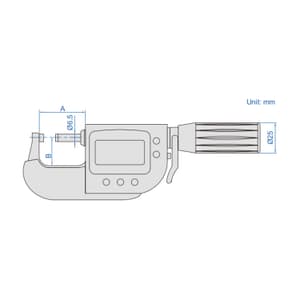

| Sizes (mm) | 38 mm (A) / 24 mm (B) |
| Resolution | 0.0001 mm / 0.00001 inch |
| Measuring Force | 5 - 10N |
| Protection | IP65 Waterproof |
| Spindle Type | Non-Rotating Spindle |
