Insize 0 - 25 mm Wireless Digital Snap Gauge (Basic Type), 3358-25AWL
Roll over image to zoom zoom_in
- Product Type: Snap Gauge
- Range (mm): 0 - 25 mm
- Range (inches): 0 - 1 inch
- receiptGST Invoice
- headphonesCustomer Service
- lockSecure Payments
- policyReturns & Warranty
- home_pinOrder Tracking
- paymentsBuy in Installments
₹18358.44 (Incl. of all taxes)
₹15558+ ₹2800.44 GST (18%)
MRP ₹23936
SAVE 35%
3 Business Days
1 Pcs
90173029
picture_as_pdfDownload Product Leafletkeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
Highlights
- Absolute encoder, the original data remains after power off
- One turn of sleeve makes 10mm spindle feed
- Measurement accuracy is not affected by the use of sleeve

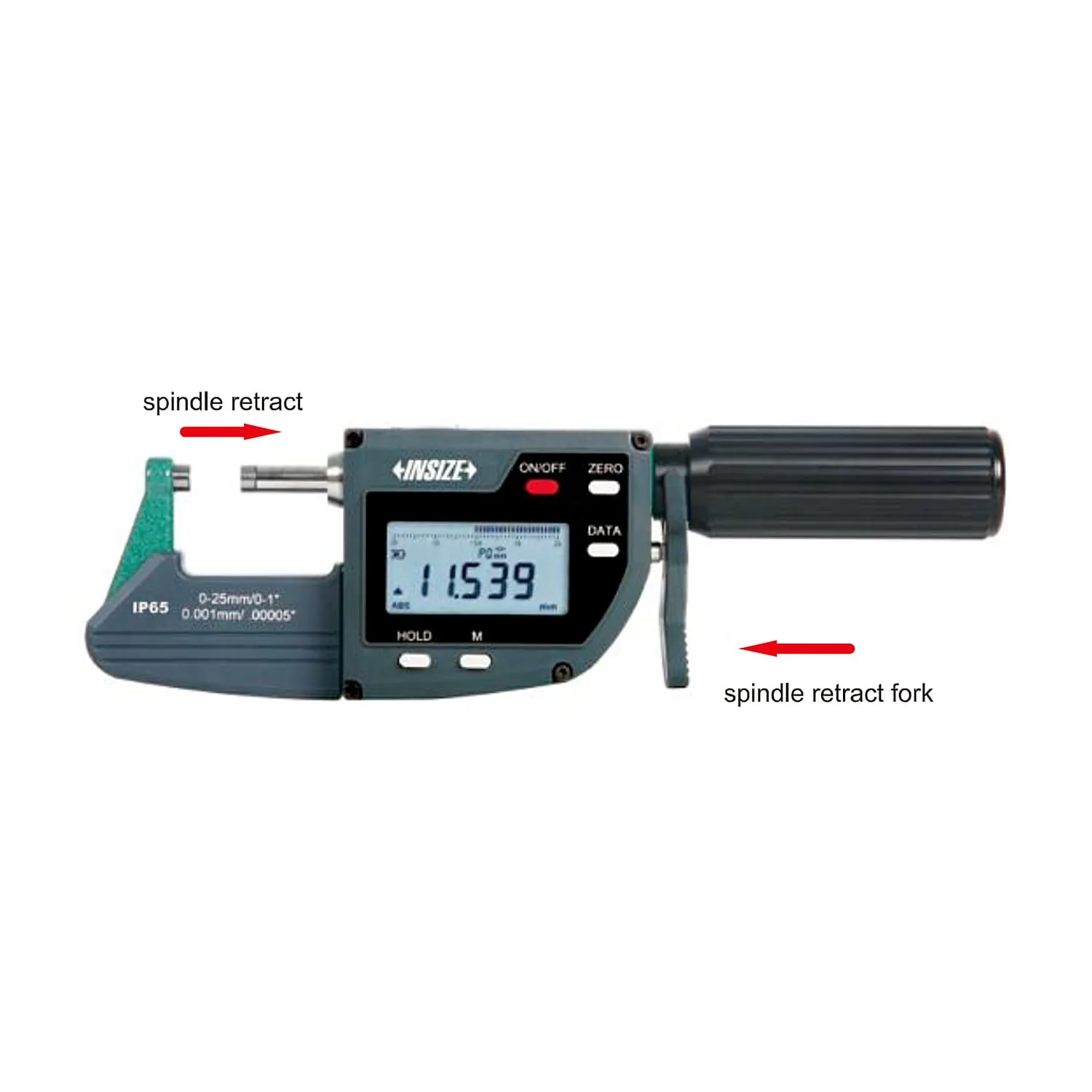

- Press the fork, the spindle retracts 3mm
- Carbide measuring faces

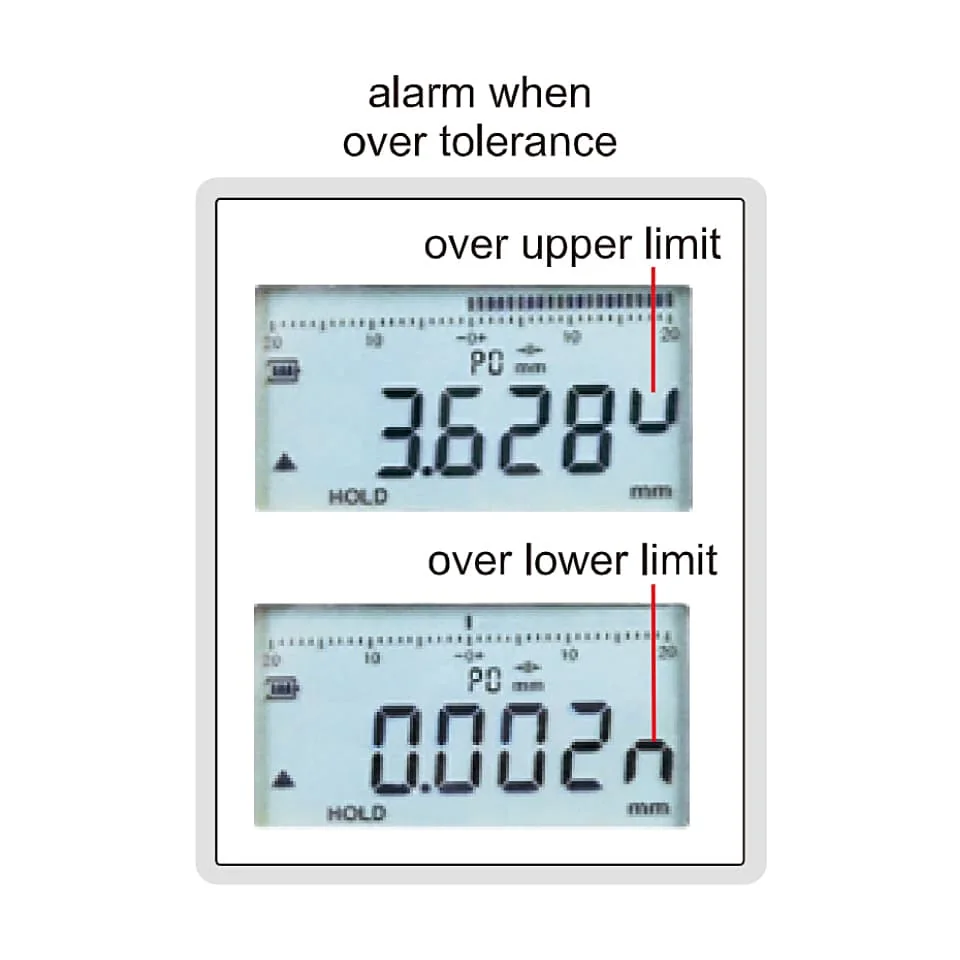

- Button function: data output, tolerance, data preset, data hold, measuring direction change, max./min./TIR, power off time, on/off, zero, mm/inch
- Power: rechargeable battery, for 24 hours continuous working
- Built-in wireless (receiver code 7315-2/3/6/7/8/9 is needed)
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
Specifications
| SKU | ME.DI.SN.00017 |
|---|---|
| Product Type | Snap Gauge |
| Model No | 3358-25AWL |
| Range (mm) | 0 - 25 mm |
| Range (inches) | 0 - 1 inch |
| Accuracy | 2µm |
| Repeatability | 1µm |
| Measuring Faces | 0.5µm (Flatness) / 1.2µm (Parallelism) |

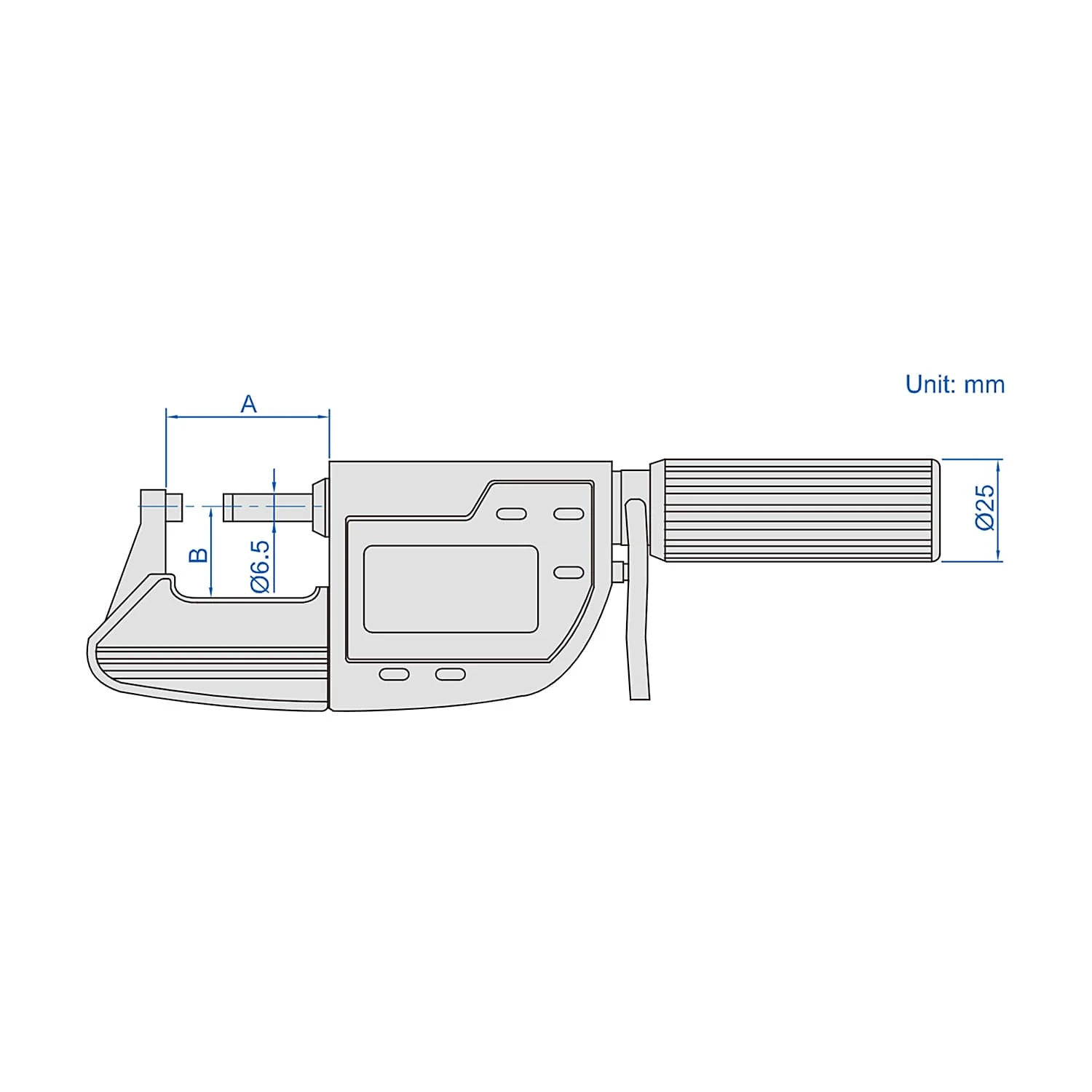

| Sizes (mm) | 38 mm (A) / 24 mm (B) |
| Resolution | 0.001 mm / 0.00005 inch |
| Measuring Force | 5 - 10N |
| Protection | IP65 Waterproof |
| Spindle Type | Non-Rotating Spindle |
