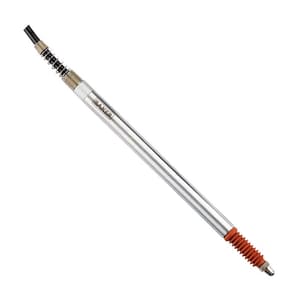

Baker 2.25 mm Half - Bridge Type Electronic Axial Probe, 2950
Roll over image to zoom zoom_in
- Product Type: Probes & Accessories
- Measuring Travel: ± 5 mm
- Total Travel: 2.25 mm
- Linearity: ± 1.5 % (of total measuring range)
- receiptGST Invoice
- headphonesCustomer Service
- lockSecure Payments
- policyReturns & Warranty
- home_pinOrder Tracking
- paymentsBuy in Installments
₹23028.88 (Incl. of all taxes)
₹19516+ ₹3512.88 GST (18%)
MRP ₹23800
SAVE 18%
3 Business Days
1 Pcs
38220090
picture_as_pdfDownload Product Leafletkeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
Highlights
Please Note that Products may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| SKU | ME.EL.PR.00040 |
|---|---|
| Product Type | Probes & Accessories |
| Model No | E433590003, 2950 |
| Measuring Travel | ± 5 mm |
| Total Travel | 2.25 mm |
| Linearity | ± 1.5 % (of total measuring range) |
| Repeatability | 0.15 µm |
| Measuring force | 2.5 N |
| Pre-travel | Variable |
| Application | Universal |
| Environmental Protection (IEC 529) | IP 64 |
| Cable support spring | Present |
| Total Length (with support spring) | 145 mm |
| Reference temperature | 20° C |
| Sealing bellow | Viton |
| Connection adaptor | 5-pin, Male DIN plug (240°) |
| Cable | 2 mtr Polyurethane |
| Plunger guide | Preloaded, caged linear ball bearing |
| Contact Tip | Tungsten carbide ball 3 mm Dia, M2.5 Thread. |
| Probe Body | Hardened and ground stainless steel (55HRC); Diameter 8h6 |
