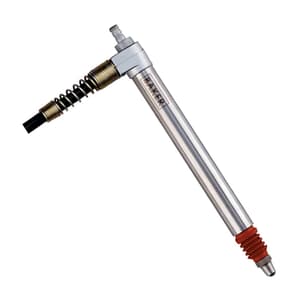

Baker 4.5 mm Half - Bridge Type Electronic Vaccum Retract Axial Probe, 2940 V
Roll over image to zoom zoom_in
- Product Type: Probes & Accessories
- Measuring Travel: ± 2 mm
- Total Travel: 4.5 mm
- Linearity: ± 0.3%
- receiptGST Invoice
- headphonesCustomer Service
- lockSecure Payments
- policyReturns & Warranty
- home_pinOrder Tracking
- paymentsBuy in Installments
₹17871.1 (Incl. of all taxes)
₹15145+ ₹2726.1 GST (18%)
MRP ₹18470
SAVE 18%
3 Business Days
1 Pcs
38220090
picture_as_pdfDownload Product Leafletkeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
Highlights
Please Note that Products may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| SKU | ME.EL.PR.00037 |
|---|---|
| Product Type | Probes & Accessories |
| Model No | E41229000, 2940V |
| Measuring Travel | ± 2 mm |
| Total Travel | 4.5 mm |
| Linearity | ± 0.3% |
| Repeatability | 0.02 µm |
| Measuring force | 0.45 to 0.75 N |
| Pre-travel | Variable |
| Sealing bellow | Viton |
| Application | Vacuum Lift |
| Environmental Protection (IEC 529) | IP 66 |
| Cable support spring | Present |
| Total Length (with support spring) | 114 mm |
| Reference temperature | 20° C |
| Connection adaptor | 5-pin, Male DIN plug (240 °) |
| Cable | 2 m (Axial) Polyurethane |
| Plunger guide | Pre-loaded, caged linear ball bearing |
| Contact Tip | Tungsten Carbide Ball 3 mm Dia, M2.5 Thread(240 °) with screw |
| Probe Body | Hardened & ground stainless steel (55HRC) (Diameter 8h6) |
