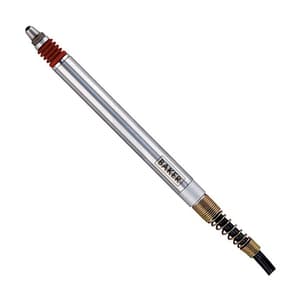

Baker 4.5 mm Half - Bridge Type Electronic Axial Probe, 2940

Name: Baker 4.5 mm Half - Bridge Type Electronic Axial Probe, 2940
Brand: Baker
SKU: ME.EL.PR.00035
Price: 10824 INR
Availability: InStock
Rating: 3.5 (55 reviews)

Shop all Baker

SKU: ME.EL.PR.00035

Model: E41149000, 2940

Roll over image to zoom zoom_in

Visit Baker Store keyboard_double_arrow_right

Key Features

Product Type: Probes & Accessories
Measuring Travel: ± 2 mm
Total Travel: 4.5 mm
Linearity: ± 0.3%

See all product information chevron_right

ToolBuy Benefits

receiptGST Invoice
headphonesCustomer Service
lockSecure Payments
policyReturns & Warranty
home_pinOrder Tracking
paymentsBuy in Installments

₹12772.32 (Incl. of all taxes)

₹10824+ ₹1948.32 GST (18%)

MRP ₹13200

SAVE 18%

Dispatch: 3 Business Days

Items in Pack: 1 Pcs

HSN Code: 38220090

picture_as_pdfDownload Product Leafletkeyboard_double_arrow_right

picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right

picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right

Highlights

Please Note that Products may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.

Specifications

SKU	ME.EL.PR.00035
Product Type	Probes & Accessories
Model No	E41149000, 2940
Measuring Travel	± 2 mm
Total Travel	4.5 mm
Linearity	± 0.3%
Repeatability	0.02 µm
Measuring force	0.6 N
Pre-travel	Variable
Application	Universal
Environmental Protection (IEC 529)	IP 64
Cable support spring	Present
Total Length (with support spring)	112 mm
Reference temperature	20° C
Connection adaptor	5-pin, Male DIN plug (240 °)
Cable	2 m (Axial) Polyurethane
Sealing bellow	Viton with the metal clips
Plunger guide	Pre-loaded, caged linear ball bearing
Contact Tip	Tungsten Carbide Ball 3 mm Dia, M2.5 Thread
Probe Body	Hardened & ground stainless steel (55HRC) (Diameter 8h6)
