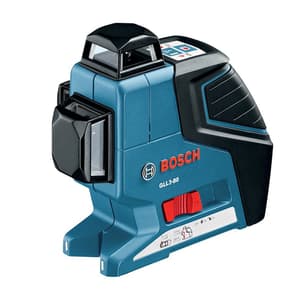

Bosch 120 Mtr Professional Line Laser, GLL3-80

Shop all Bosch

SKU: ME.NO.LI.00015

Model: GLL 3-80

Roll over image to zoom zoom_in
  1. Bosch 120 Mtr Professional Line Laser, GLL3-80
  2. Bosch 120 Mtr Professional Line Laser, GLL3-80
  3. Bosch 120 Mtr Professional Line Laser, GLL3-80
  4. Bosch 120 Mtr Professional Line Laser, GLL3-80
  5. Bosch 120 Mtr Professional Line Laser, GLL3-80
  6. Bosch 120 Mtr Professional Line Laser, GLL3-80
  7. Bosch 120 Mtr Professional Line Laser, GLL3-80
Video

  • Weight: 0.82 Kg
  • Product Type: Line Lasers
  • Laser Class: 2
  • Colour laser line: Red
  • Working Range Value: 30 m
See all product information chevron_right
  • receiptGST Invoice
  • headphonesCustomer Service
  • lockSecure Payments
  • policyReturns & Warranty
  • home_pinOrder Tracking
  • paymentsBuy in Installments

40829.18 (Incl. of all taxes)

34601+ ₹6228.18 GST (18%)

MRP ₹56500

SAVE 38.76%



3 Business Days

1 Pcs

90178090

picture_as_pdfDownload Product Leafletkeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right

Highlights

  • 3 x 360° for visibility on a new level
  • High visual clarity is provided by high-powered diodes.
  • 3 x 360° lines allow for simultaneous horizontal and vertical levelling applications for highly efficient work.
  • The intuitive user interface offers easy operation.
  • Pendulum lock for safe transport
  • 2 modes self-levelling mode and lock mode
  • Intuitive keypad for easy mode selection and receiver function activation
  • Receiver mode for high working range up to 120m (diameter). Compatible to new LR 7 and LR 6 Professional receivers
  • 1/4 inch and 5/8 inch tripod thread for compatibility with all accessories. Works additionally also with new RM 2 Professional


Product Highlights:

The line laser GLL 3-80 Professional projects 3 x 360° lines for next level visibility. High visual clarity is provided by high-powered diodes. This tool's 3 x 360° lines allow for simultaneous horizontal and vertical levelling applications around the entire room for highly efficient work, while the tool´s intuitive user interface offers easy operation.

Equipment & Application:

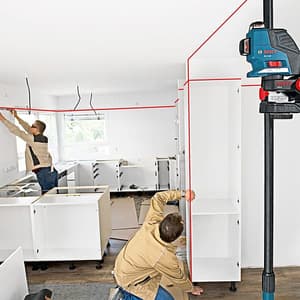

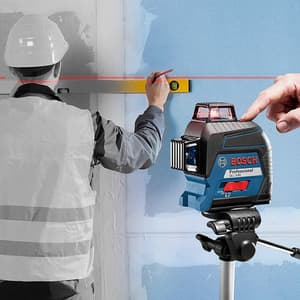

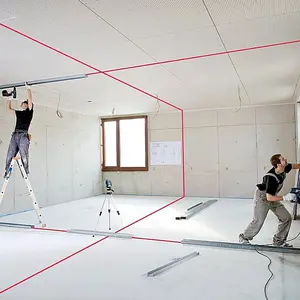

This line laser was developed for suspending drop ceilings, building floors, installing windows, mounting shelves, laying drainage pipes, building framework for drywall, and laying tiles.

Additional Information:

The GLL 3-80 Professional is perfect for fast self-levelling and it is capable of self-levelling on non-level surfaces up to +/- 4° in less than 4 seconds with excellent precision of ± 0.3 mm/m*/**. It has a working range of up to 120 m when using the optional LR 6 or LR 7 Professional receiver. This line laser is compact, easy to handle, and extremely robust (IP54).


Functions:

Laser class

Class 2 lasers are considered safe for normal operation. Please do not stare directly into the beam.

Higher working range

Working with reciever for higher working range.

Power supply

Power supply 4 x AA Batteries

Dust Protection

IP 54 Dust and Splash protection.

Tripod Mount

Tripod mount for 5/8 and 1/4" tripod thread.

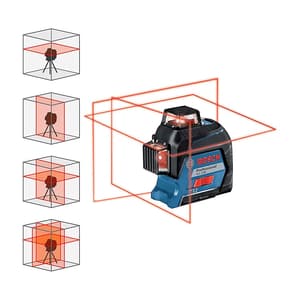

Projection

3 x 360° lines projection.

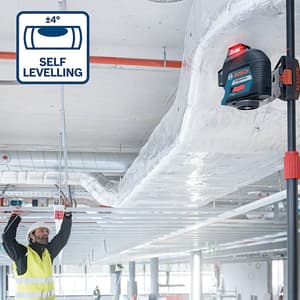

Self Levelling

Has a self levelling range of ± 4°.

Levelling Accuracy

Levelling accuracy.

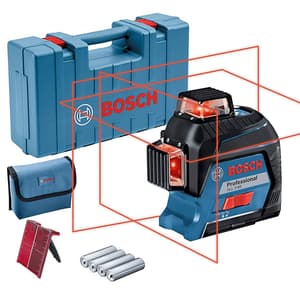

What’s Included in this Package:

GLL 3-80 Professional
Order number: 0 601 063 S00
4 Unit x 1.5 V LR6 battery (AA)
Laser target plate
Pouch
Carrying case

Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.

Specifications

SKUME.NO.LI.00015
Product TypeLine Lasers
Model NoGLL 3-80
Working Range with Receiver Value 120 m
Projection 3 x 360° line
Operating Temperature -10 – 40 °C
Storage Temperature -20 – 70 °C
Working Range with Receiver Up to 120 m
Working Range without Receiver Up to 30 m
Laser Diode Line: 630 - 650 nm, < 10mW
Power supply 4 x 1.5 V LR6 (AA)
Operating Time (max.) 4 h in 3-line mode
Working Range Up to 30 m
Laser Class 2
Self-levelling Range ± 4°
Levelling Time 4 s
Dust Splash Protection IP 54
Tripod Thread 1/4", 5/8"
Colour laser line Red
Compatible Laser Receivers LR 6 + 7
Working Range Value 30 m
Accuracy +/- 0.3 mm/m / (for the four horizontal intersection points ; plus use-dependent deviation)
