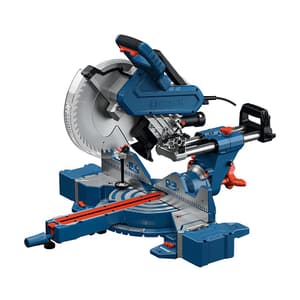

The heavy-duty, high-performance miter saw with long-lasting accuracy

Features:

• Long-term accuracy thanks to integrated LED light system with reliable cutting-line indication.
• Easy workpiece control for different material sizes due to detachable workpiece support and long extensions.
• Effortless cutting – even for large pieces of wood – thanks to strong cutting capacity driven by a powerful motor

User insights:

• The current laser cutting line indication loses accuracy after certain time of usage.
• Normal table extension is not long enough for 3-6m length workpiece, I have to make  workpiece for extra material support.
• Have to make multiple cuts when tackling with wide and thick workpiece.

Reason to believe:

• Integrated LED light system with reliable cutting-line indication.
• Detachable workpiece support and long extensions.
• Strong cutting capacity driven by powerful motor

Sales Arguments To Remember:

• LED job light with adjustment-free cutting line indication for long lasting accuracy
• Workpiece control thanks to detachable workpiece support and long-travel table extensions
• Powerful motor handles the toughest cuts  on large workpieces with ease.



Long-lasting accuracy in every cut Provides an adjustment-free cutting line indication that ensures accuracy for a long time to come thanks to integrated LED light system.

Easy cutting with less effort Makes workpiece control easy regardless of the size of the materials thanks to the detachable workpiece support with long table extensions.

Large cutting capacity for the toughest cut Effortlessly handles the toughest cut with powerful motor & large cutting capacity.

User Applications:

• Cabinet installer (Finish carpenter / Joiner)
• General Contractor Concrete / Temporary safety structure (Foundation / Structure)
• Rough woodworking mostly exterior including house frames and roof constructions, building of wood houses, etc. (Rough carpenter / Framer & Roofer)

Product Overview & USPs:

Corded Drive: Powerful motor handles the toughest cuts  on large workpieces with ease.

Health & Safety: Workpiece control: Workpiece control thanks to detachable workpiece support and long-travel table extensions. Dust management: Effective dust management with Click & Clean dust extraction adapter

Simplification: LED job light with cutting line indication - LED job light with adjustment-free cutting line indication for long-lasting accuracy. Easy to Use - Horizontal handle for left/right-handed usage for ease of use compatible with Bosch stand and vacuum cleaner

Versatile for different applications (Versatile for different applications thanks to dual bevel function with large bevel and miter cutting capacity) Max. Cutting capacity 0° miter / 0° bevel: 105 x 340 mm Max. Cutting capacity 45° miter / 0° bevel: 105 x 245 mm Max. Cutting capacity 0° miter / 45° L bevel: 70 x 340 mm Max. Cutting capacity 0° miter / 45° R bevel: 48 x 340 mm Max. Cutting capacity 45° miter / 45° L bevel: 70 x  245 mm Max. Cutting capacity 45° miter / 45° R bevel: 48 x 240 mm Miter Range Capacity: 52° L / 60° R Bevel range capacity: 47° L / 47° R



What’s Included In This Package:

1 x Mitre Saw 0 601 B60 0F0

Dust Bag 1 619 PB6 246

Measuring ruler 1 619 PB9 141

Mounting Clamp 1 619 PC5 274

Supporting block 1 619 PC5 276

Blade 2 608 846 526 (IN)

Vaccum adapter

Clamping Wrench

Extension table

Functions:

	Integral Dust Bag Dust extraction directly into the integral dust bag on the tool and/or using an all-purpose dust extractor.
	Rated Power Input 1800W Provides an adjustment-free cutting line indication that ensures accuracy for a long time to come.
	Click & Clean System Great benefits A clear view of the work surface: You work more precisely and faster Harmful dust is extracted immediately: Protects your health Less dust: Longer lifetime of tool and accessories.
	Soft Start Soft start as the load and torque of the motor are temporarily reduced during start-up.
	LED Cutting Indication Dust extraction directly into the integral dust bag on the tool and/or using an all-purpose dust extractor.

FAQ:

Question	Answer
Does the GCM 340-305 D fit on all GTA stands for GCM saws??	Yes, it can be mounted on the following GTA stands: ?GTA 2500W, GTA 2500 Compact, GTA 2600, GTA 3800
Are the material blocks suitable for all GCMs?	Yes, they can be attached to all Miter saw of Bosch
Are the material blocks included in the SoS?	Yes, the user gets 2 blocks and can buy more as spare part. The user can attach as many blocks as needed.
Will SDS tool free blade change work?	No, it doesn’t.
Will the dust bags fit from other tools?	Yes, if they are the click and clean mode which also works with the vacuum cleaner adapter.
Why some tools have some dust when I open the box?	We have decided to implement a fully recycling packaging. Now we use paper pulp inlays instead of Styrofoam which could bring some dust, however, dust can be easily removed with a cloth or towel.
