Suitable for alloyed and unalloyed steel up to a tensile strength of 900 N/mm², cast steel, gray cast iron, sintered iron, malleable cast iron, non-ferrous metals, hard plastics. Precision-ground HSS-G Steel drill bits allows up to 40% faster drilling progress, or up to 50% lower feed force than standard ground HSS drill bits with cone shaped section.

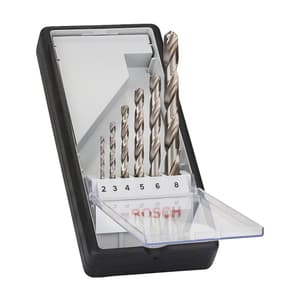

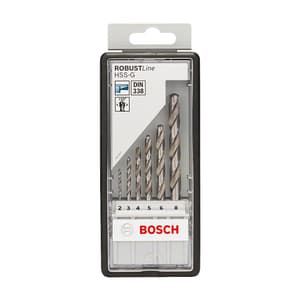

Self-centering cross-grinding drill bit, makes the vorkornen or pre-drilling up to 10 mm diameter is unnecessary. The HSS-G-drill bits are available in two qualities. The Topline drill bits for the highest requirements and the standard drill bits for professional use. 6 pcs. Robust Line metal drill bit set HSS-G, DIN 338, 135°. 2; 3; 4; 5; 6; 8 mm, 135°.

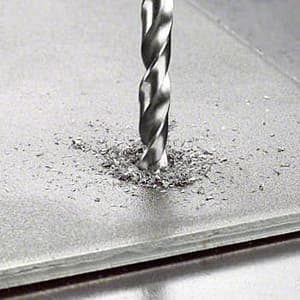

Drilling with High Precision

• Precision-ground bit made of HSS enables fast results
• No need to pre-punch or pilot drill up to 10 mm-diameter
• Manufactured to DIN 338, drill bit Type N (flute angle) with a 135-degree tip, diameter tolerance h8
• 135-degree self-centring split-point tip combines active cutting and perfect centring without wandering
• Precision-ground bit made of HSS enables fast results

Materials That Can Be Processed:

• Steel/ferrous metal
• Unalloyed/low-alloy steel
• Gray iron
• Copper
• Zinc
• Alloys
• Tin
• Aluminium

Functions :

Diameter mm	Working length mm
2.00	24
3.00	33
4.00	43
5.00	52
6.00	57
8.00	75
