Battery & Charger Are Not Included

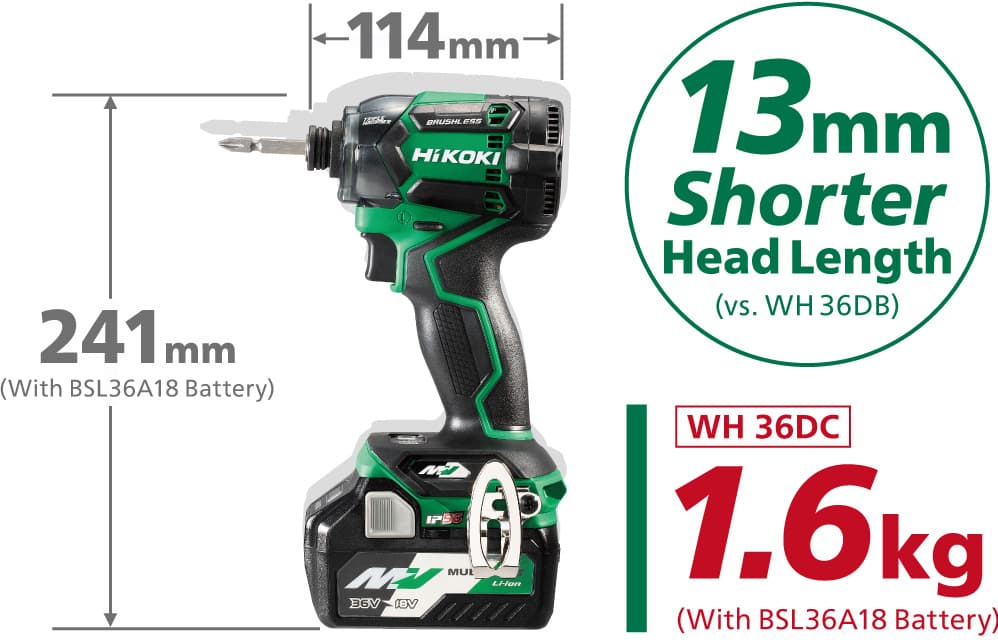

Industry’s Most Compact Head and Lightest Weight With the most compact head and lightest weight in its class*, the WH36DC is more compact yet as powerful as its predecessor (WH36DB). This makes the tool easy to use and ideal for limited space applications.

High Torque and High Speeds Help You Get the Job Done Quickly

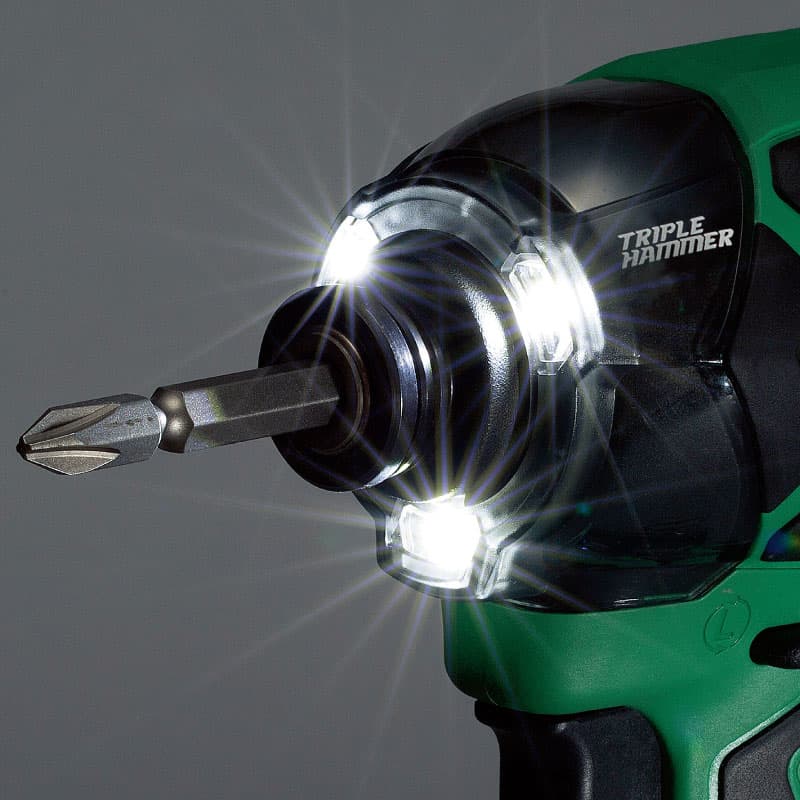

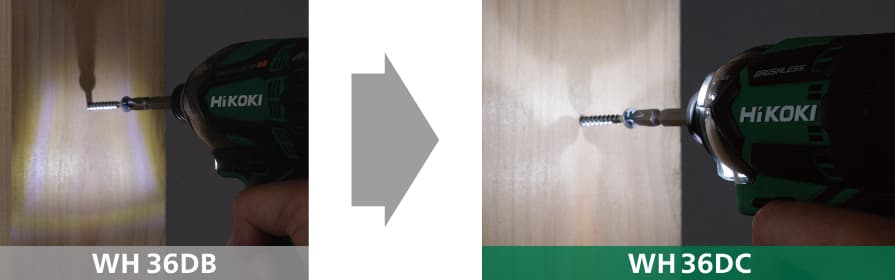

Triple LED Lights for Superior Visibility Three LED lights illuminate a wide area without shadows getting in the way.

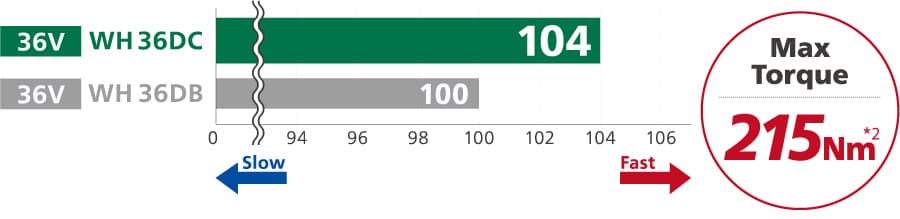

The speed of previous model, WH36DB, is indexed as 100. The values shown are for reference purposes and may vary according to the workpiece materials and other operating conditions. When tightening an M16 high-tension bolt (Grade 10.9) for three seconds with the socket adapter and the hexagon socket (40mm in overall length) attached.

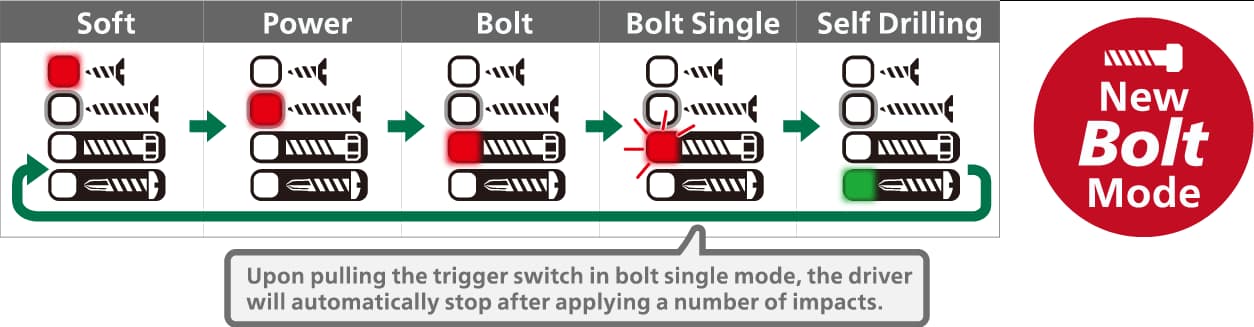

5 Tightening Modes for Various Applications

Fastening Speed Comparison When driving Dia. 7.0 × 120 mm wood screws into hard wood without pilot holes

Runtime Per Charge:

Work		Ah	Runtime per Charge
Wood Screws	ø4.3mm × 65mm	2.5Ah	Approx. 760 Screws
	ø6.0mm × 120mm	2.5Ah	Approx. 160 Screws

The values shown are for reference purposes and may vary according to the workpiece materials and other operating conditions. Wood screws into lauan without pilot holes, with the BSL36A18 battery.

IP56 Dust & Water Resistant:

Thanks to the unique design of dust-protective cooling windows and fully plastic coating on some important inner parts, this product conforms to IP56 protection class ratings (dust and water resistance) for electrical equipment as stipulated by the international IEC regulations.

The equipment has been designed to withstand the effects of dust and water, but there is no guarantee that it will not malfunction. Do not use or leave the equipment in locations where it is subject to excessive amounts of dust, or in locations where it is submerged in water or subject to rainwater. (Only the main unit conforms to the IP56 protection class ratings when equipped with a battery.)

Specification:

No Load Speed	Soft Mode	0 - 900/min
	Power Mode	0 - 3,400/min
	Bolt Mode	0 - 2,900/min
	Bolt Single Mode	0 - 2,900/min
	Self Drilling Screw Mode	0 - 3,700/min
Impact Rate	Soft Mode	0 - 2,000/min
	Power Mode	0 - 4,100/min
	Bolt Mode	0 - 4,100/min
	Bolt Single Mode	0 - 4,100/min
	Self Drilling Screw Mode	0 - 2,200/min

Note: Manufacturer reserves the right to change specifications of parts and accessories without notice. Specifications and standard accessories may vary from country to country.
