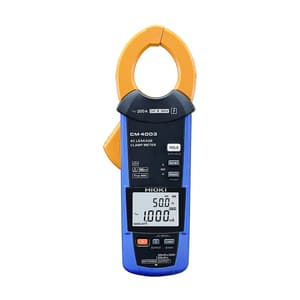

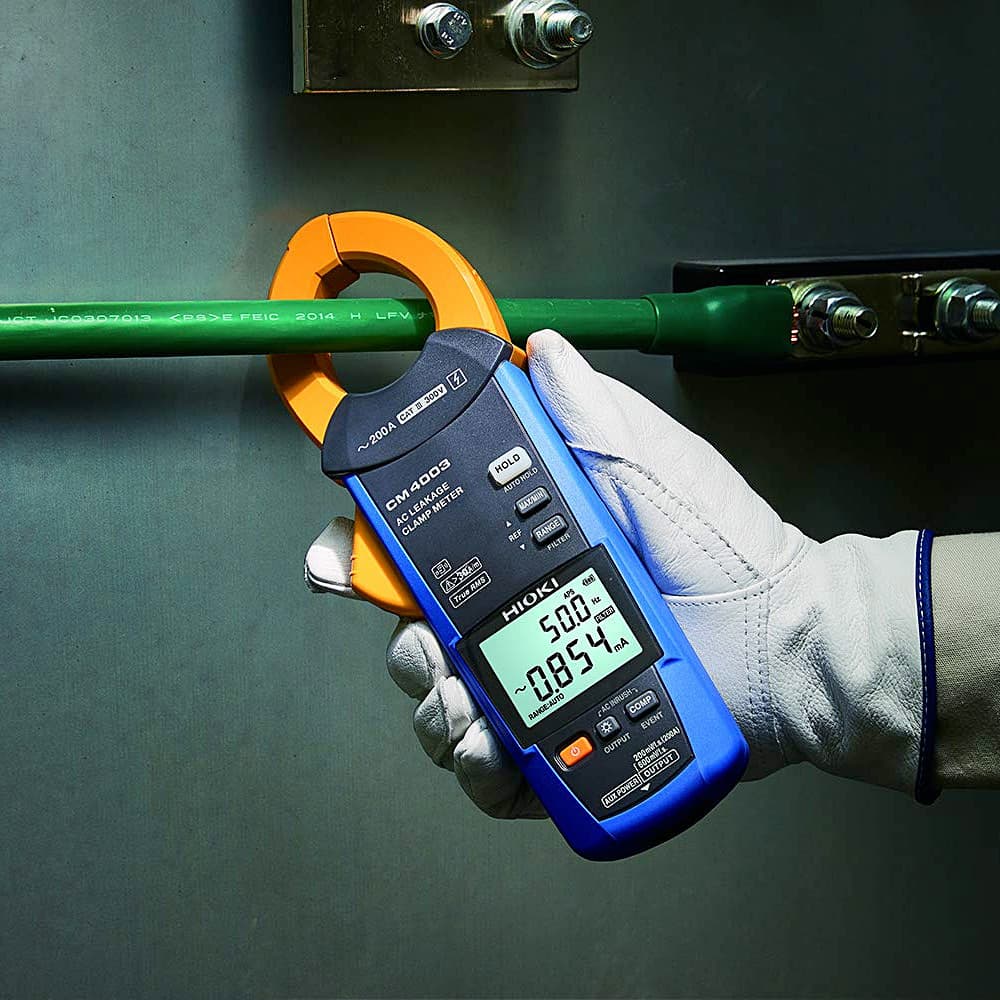

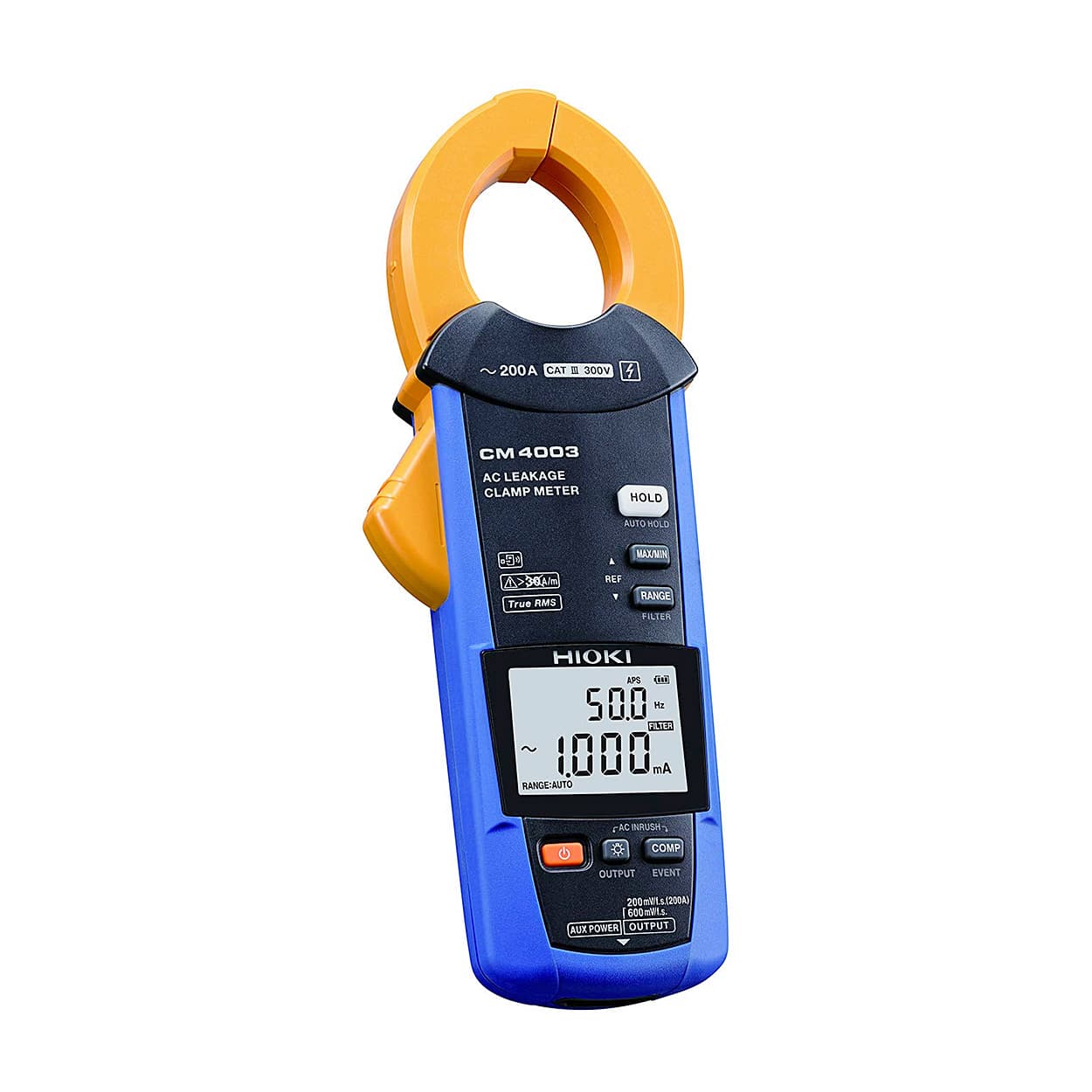

Hioki 0.060 mA - 200.0A AC Leakage Clamp Meter (Output & External Power Supply Function), CM4003

Shop all Hioki

SKU: ME.EL.LE.00011

Model: CM4003

Roll over image to zoom zoom_in
  1. Hioki 0.060 mA - 200.0A AC Leakage Clamp Meter (Output & External Power Supply Function), CM4003
  2. Hioki 0.060 mA - 200.0A AC Leakage Clamp Meter (Output & External Power Supply Function), CM4003
  3. Hioki 0.060 mA - 200.0A AC Leakage Clamp Meter (Output & External Power Supply Function), CM4003
  4. Hioki 0.060 mA - 200.0A AC Leakage Clamp Meter (Output & External Power Supply Function), CM4003
  5. Hioki 0.060 mA - 200.0A AC Leakage Clamp Meter (Output & External Power Supply Function), CM4003
Visit Hioki Store keyboard_double_arrow_right
  • Weight: 400 Grams
  • Product Type: Leakage Testers
  • Frequency range: 15.0 Hz to 2000 Hz
  • Core jaw diameter: 40 mm (1.57 in.)
  • Display: Display refresh rate: 5 times/s
See all product information chevron_right
  • receiptGST Invoice
  • headphonesCustomer Service
  • lockSecure Payments
  • policyReturns & Warranty
  • home_pinOrder Tracking
  • paymentsBuy in Installments

₹39439.14 (Incl. of all taxes)

₹33423+ ₹6016.14 GST (18%)

MRP ₹41779

SAVE 20%

5 Business Days

1 Pcs

930303390

picture_as_pdfDownload Product Leafletkeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right

Highlights

Hioki clamp on meters are best-in-class measuring devices incorporating Hioki’s expertise in current sensing technology. Use the CM4003 to Prevent unexpected downtime! Identify potential problems and avoid large problems

Key Features:

  • Easily transfer measurement data to your smartphone or tablet by using our free app GENNECT Cross or to an Excel® file. (Wireless Adapter Z3210 is necessary)
  • Detect minuscule leakage currents with a newly designed sensor. (Core jaw diameter up to φ 40 mm)
  • Broad measurement range extending from leakage currents to load currents
  • Complies with the performance standard set forth in IEC/EN 61557-13, an international standard on leak clamp meters
  • Solve GFCI and RCD problems quickly
  • Speed up pass/fail judgments with the built-in comparator function
  • Output function (waveform/RMS): use with a recorder to record waveforms and fluctuations
  • External power supply: use an optional AC adapter for continuous, long-term measurement
  • CAT III 300 V
  • Easy! Just connect the optional Z3210 Wireless Adapter to your Hioki compatible instrument, to make it Bluetooth® ready: Wirelessly connect Hioki-compliant instruments with a simple connection. Transmit measured values to your tablet or smartphone.
  • Easily transfer measurement data to an Excel® file: Excel® Direct Input function allows you to input measurement values directly and automatically into an Excel® file once the instrument's auto-hold function is activated. (Wireless Adapter Z3210 is necessary)

AC Current range6.000 mA, 60.00 mA, 600.0 mA, 6.000 A, 60.00 A, 200.0 A, 6 ranges, True RMS
Basic accuracy 45 Hz - 400 Hz: ±1.0% rdg ±5 dgt (6.000 mA to 6.000 A), ±1.5% rdg ±5 dgt (60.00 A, 200.0 A)
Basic accuracy 15 Hz - 45 Hz, 400 Hz - 2 kHz: ±2.0% rdg ±5 dgt
Defined accuracy range: 0.060 mA to 200.0 A
Other functionsMax/ Min/ AVG/ PEAK MAX/ PEAK MIN value display, Display value hold and auto hold; Backlight, Auto power save, Buzzer sound, Event count display, Comparator, Simple event recording, Rush current measurement
Power Supply- AA-size alkaline battery (LR6) × 2; Continuous operating time: 48 hr. (without Z3210 installed), 30 hr. (with Z3210 installed and using wireless communications)
- AC Adapter Z1013 (5 V DC, 2.6 A)



What's Included In This Package:

  • 1x Connection Cable L9097
  • 1x USB Cable
  • 1x Carrying case C0203
  • 1x Instruction manual
  • 1x Operating Precautions
  • 2x AA-size alkaline battery (LR6)

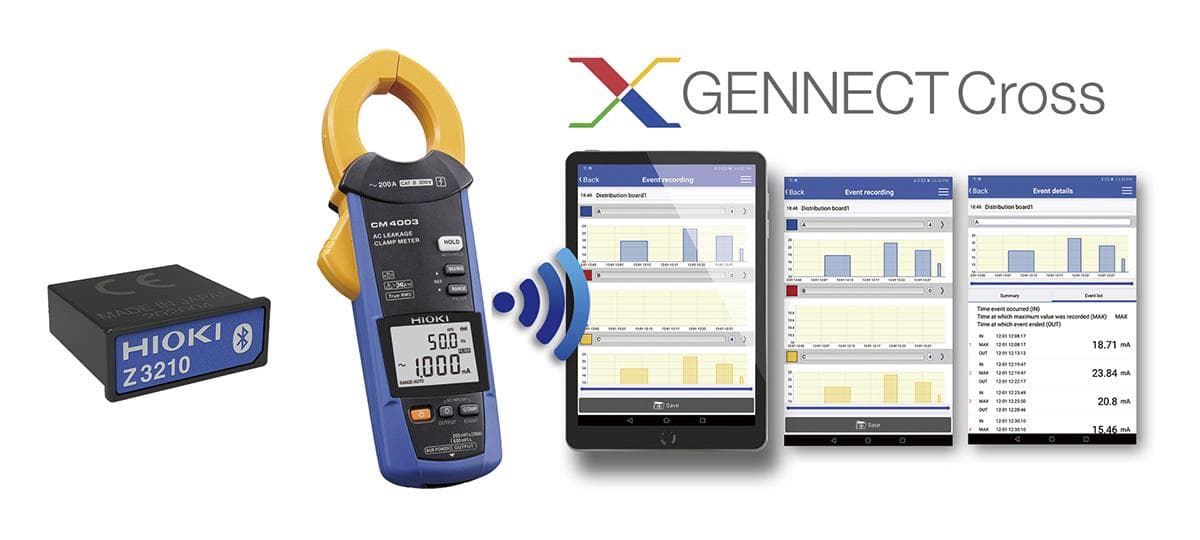

Connect the Z3210 for wireless communications. Easy visualization of intermittent trip events.

Connect the Wireless Adapter Z3210 (sold separately) for wireless communications. You can transfer the readings to your phone or tablet and check the location and time of leakage easily and efficiently.

Instantly create reports by a free app (GENNECT Cross)

  • GENNECT Cross, a free app designed specifically for use with Hioki measuring instruments, lets you check and manage measurement results and create reports.
  • The software provides a range of functionality that helps manage data in the field, including photographing measurement sites, placing measurement results on photographs, and saving hand written memos.(Optional Wireless Adapter Z3210 is necessary.)

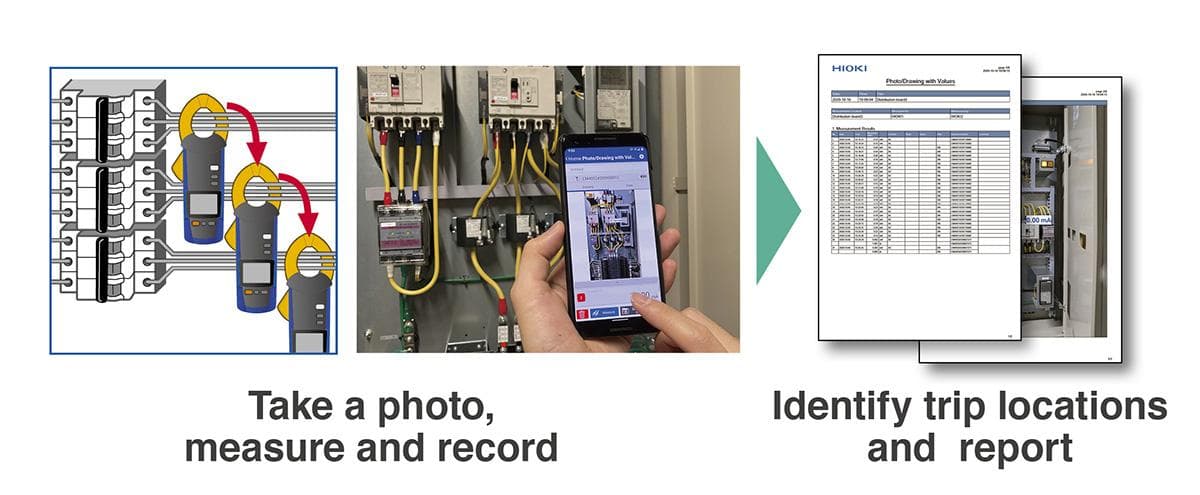

Regular inspections of GFCIs and RCDs [Photo drawing function]

Record measurement locations and measured values together. Identify trip locations quickly and reliably!

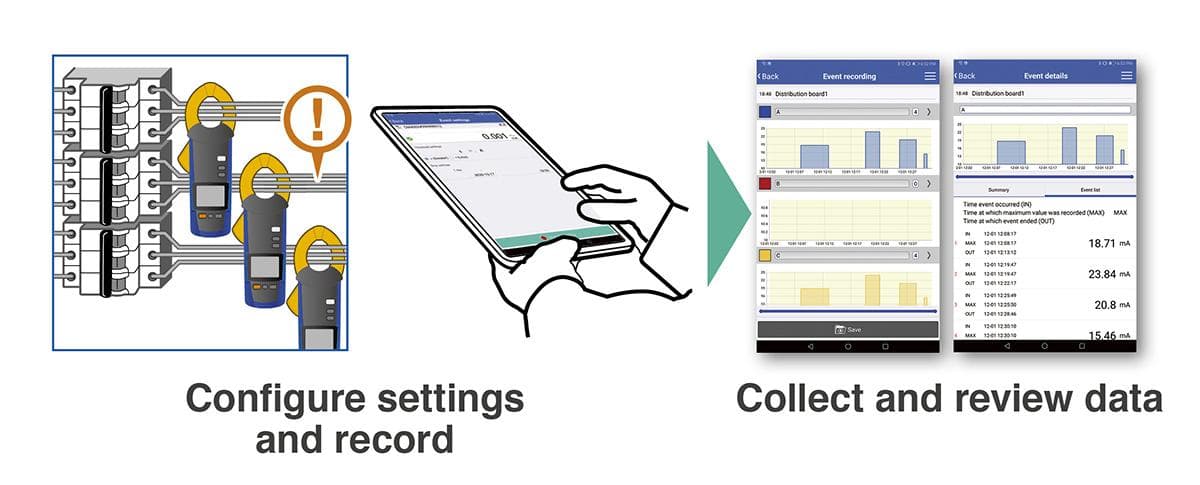

Identifying intermittent trip events [Event recording function]

The meter records event information (times and current values) in its internal memory. Collect data using a tablet and check for trips!

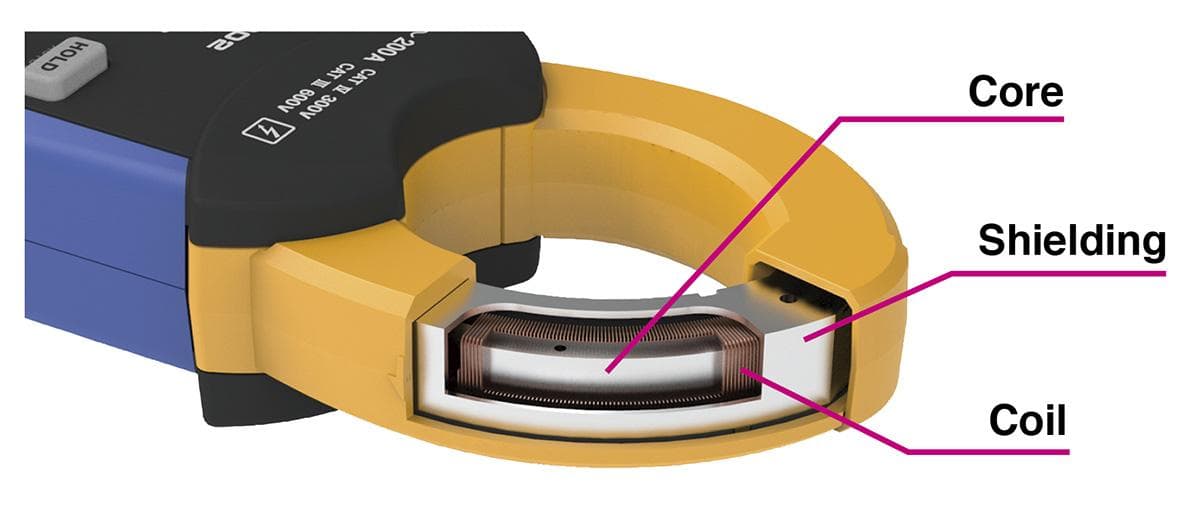

Detect minuscule leakage currents with a newly designed sensor (IEC/EN 61557-13 compliant)

  • The core and shielding are constructed from high-permeability magnetic materials.
  • The CT sensor features a uniform coil.
  • The CM4002/CM4003 complies with the performance standard set forth in IEC/EN 61557-13, an international standard on leak clamp meters.

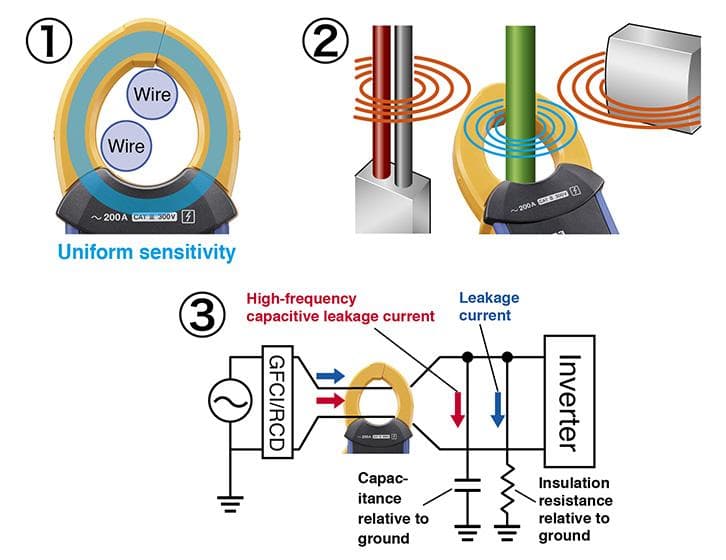

High-reliability leakage current measurement

  • Uniform measurement sensitivity inside jaws: When affixed around a wire, sensitivity is uniform regardless of the position of the conductor inside the jaws.
  • Resistance to the effects of external magnetic fields: Shielding made of high-permeability magnetic material blocks magnetic fields from the surrounding environment.
  • Elimination of the effects of highfrequency currents: A low-pass filter eliminates high-frequency capacitive leakage currents from inverters and other equipment.

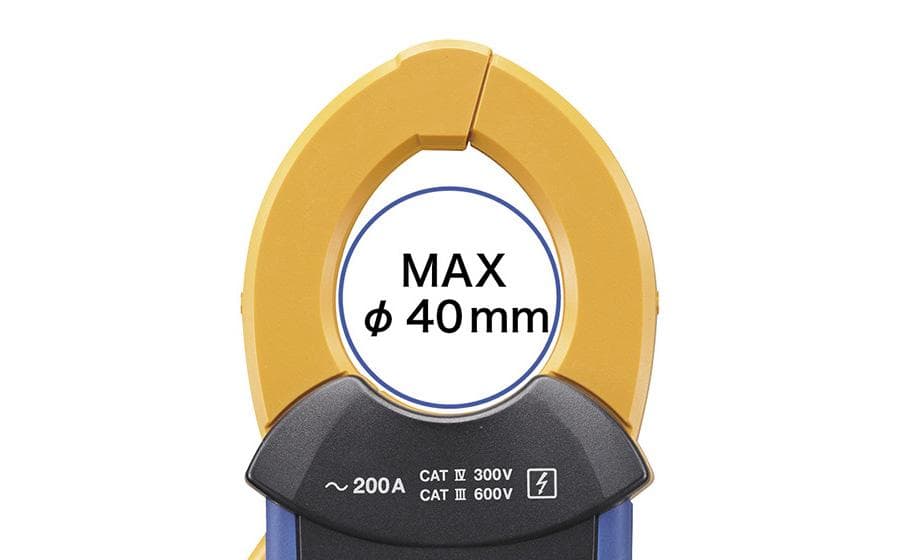

Measurable conductor diameter up to φ40 mm

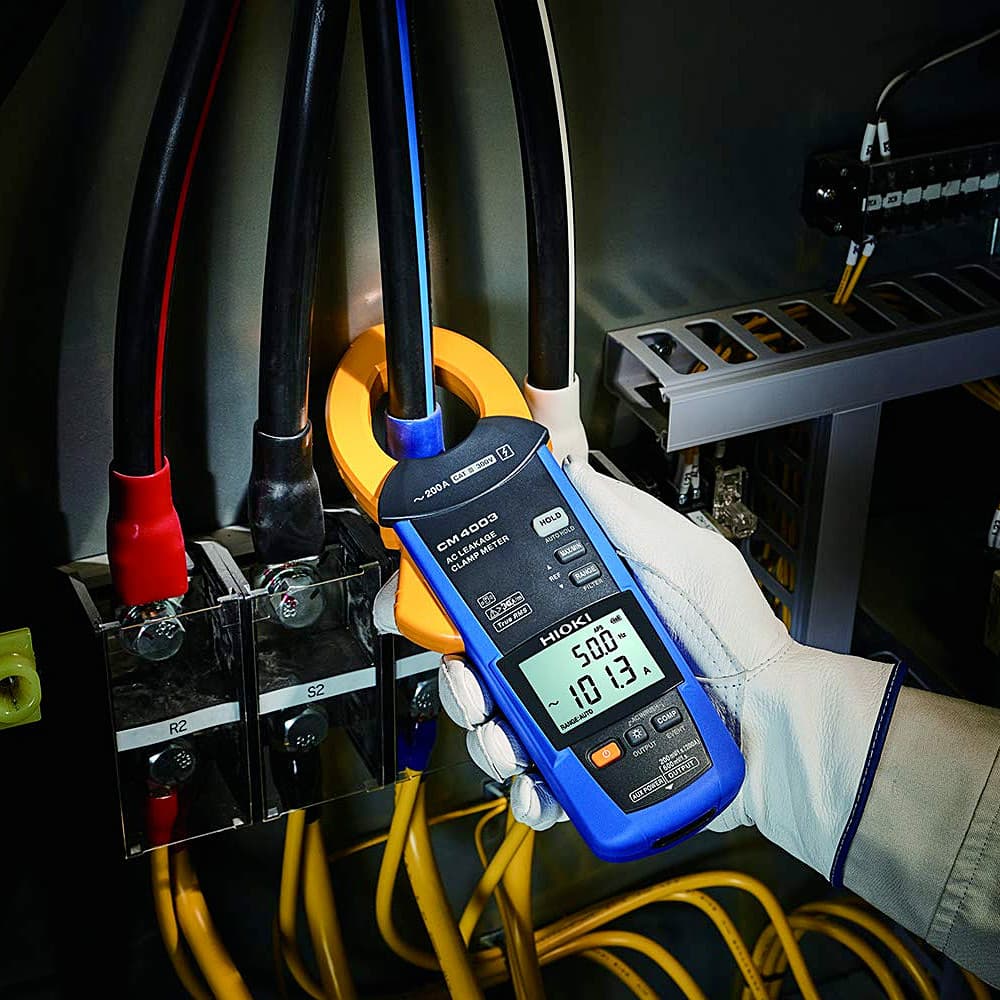

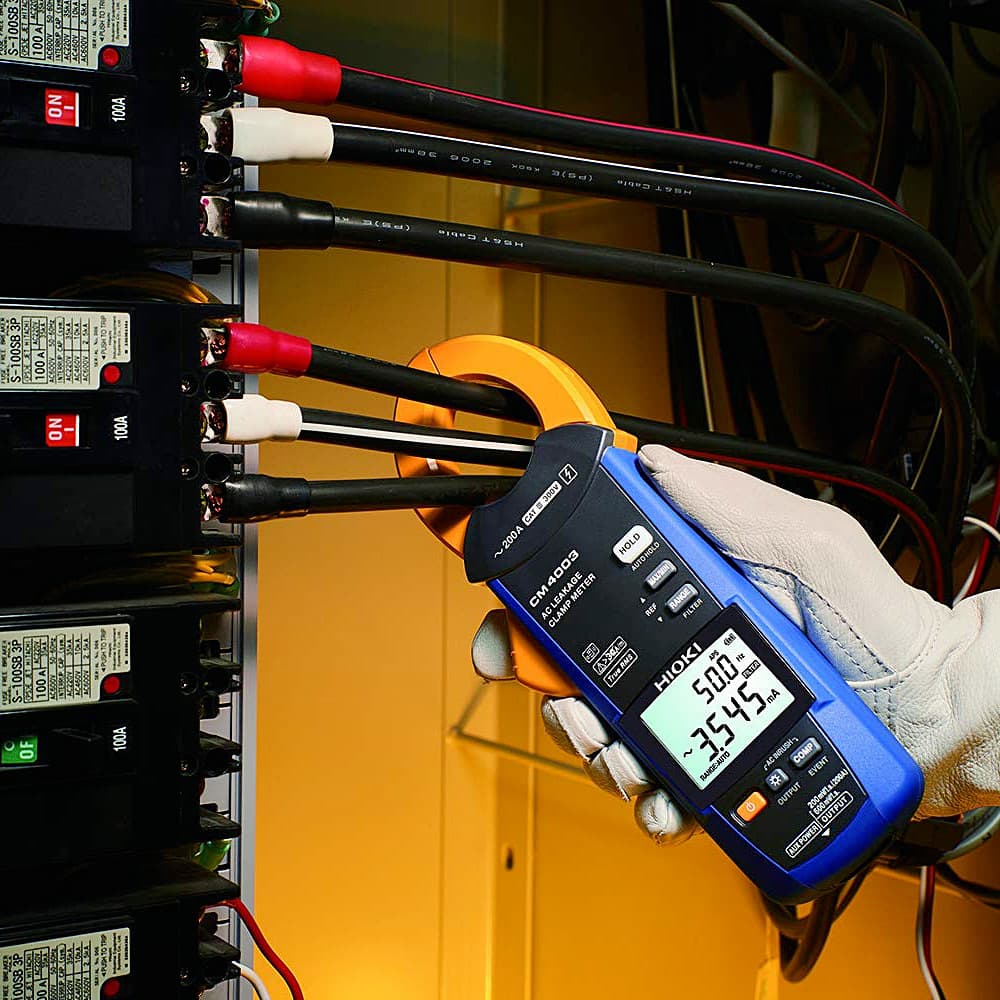

The jaws have a maximum diameter of φ40 mm and can be used to pinch thick cables or multiple cables at once.

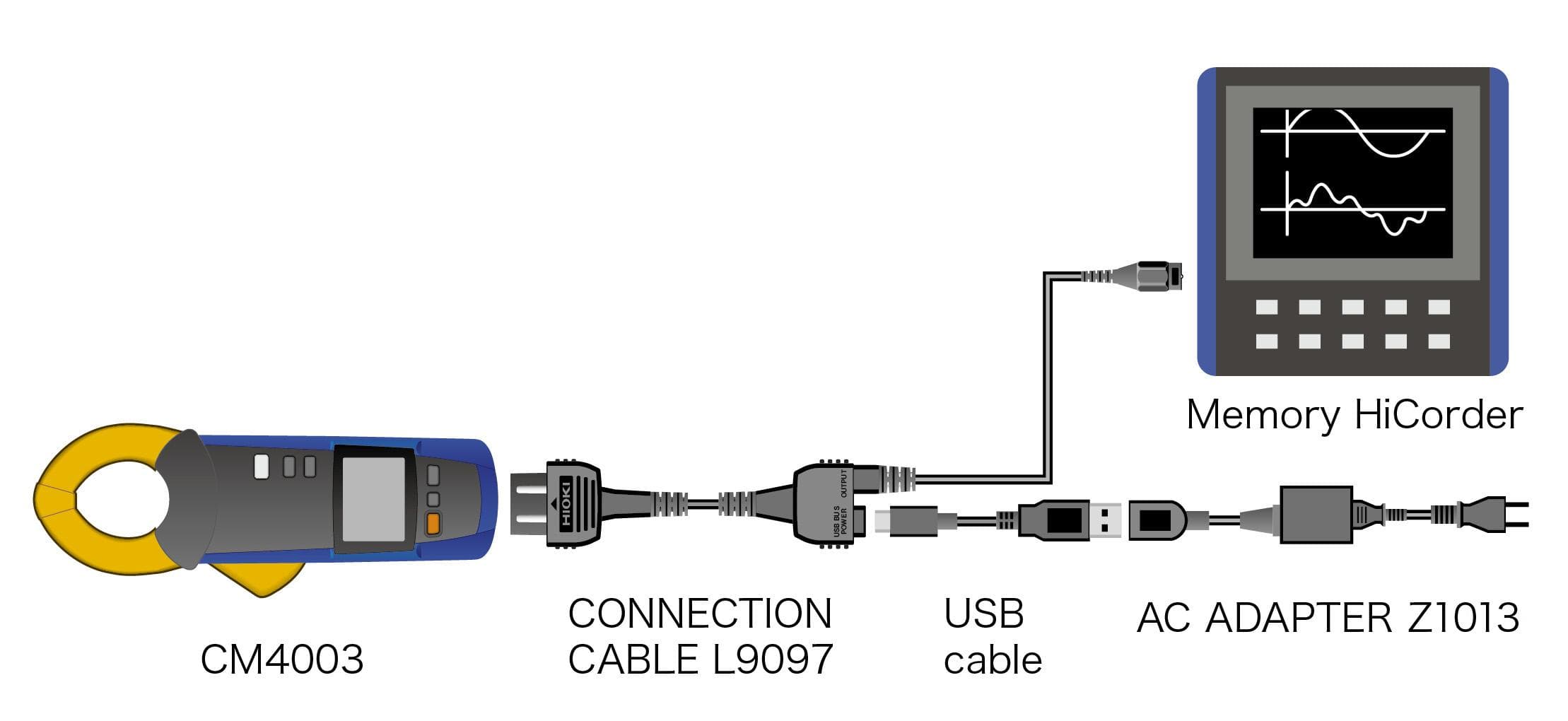

Long-time continuous measurement with output function and external power supply function

  • Waveform/RMS output function. Waveforms and fluctuations can be recorded in combination with a recorder.
  • External power supply function allows continuous measurement for a long period of time using an AC adapter (optional).

Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.

Specifications

SKUME.EL.LE.00011
Product TypeLeakage Testers
Model NoCM4003
Frequency range 15.0 Hz to 2000 Hz
Core jaw diameter 40 mm (1.57 in.)
Display Display refresh rate: 5 times/s
Crest factor 3 (other than 200.0 A range), 1.5 (200.0 A range)
Filter function Cut off frequency: 180 Hz ±30 Hz at filter ON (-3 dB)
Output function RMS (RMS value output), WAVE (waveform output)
Dimensions and mass 64 mm (2.52 in) W × 233 mm (9.17 in) H × 37 mm (1.46 in) D, 400 g (14.1 oz.)
