Metravi 0.00mA - 1200A Digital Leakage Current Clamp Meter With Harmonics, PRO HCM-65

Shop all Metravi

SKU: ME.EL.LE.00020

Model: PRO HCM65

Roll over image to zoom zoom_in
  1. Metravi 0.00mA - 1200A Digital Leakage Current Clamp Meter With Harmonics, PRO HCM-65
  2. Metravi 0.00mA - 1200A Digital Leakage Current Clamp Meter With Harmonics, PRO HCM-65
  3. Metravi 0.00mA - 1200A Digital Leakage Current Clamp Meter With Harmonics, PRO HCM-65

  • Weight: 0.48 Kg
  • Product Type: Leakage Testers
  • Jaw Size: 40 mm
  • Measurement Range: 0.00mA ~ 1200A
  • Distortion Rate: Yes (above 10mA)
See all product information chevron_right
  • receiptGST Invoice
  • headphonesCustomer Service
  • lockSecure Payments
  • policyReturns & Warranty
  • home_pinOrder Tracking
  • paymentsBuy in Installments

27081 (Incl. of all taxes)

22950+ ₹4131 GST (18%)

MRP ₹33750

SAVE 32%



5 Business Days

1 Set

90303100

picture_as_pdfDownload Product Leafletkeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right

Highlights

The Metravi PRO HCM-65 Leakage Current Clamp Meter is especially designed and manufactured for measuring AC leakage Current and Current. The meters adopt unique CT and digital integration technology, and is of small size, high precision and has perfect function.

Widely used in electric power, communications, meteorology, railway, oil field, construction, measurement, scientific research and teaching units, industrial and mining enterprises and other fields. The Clamp Jaws are made of permalloy and adopt magnetic shielding technology; so that they are almost not affected by external electromagnetic fields, ensuring high precision, high stability and high reliability for uninterrupted measurements.

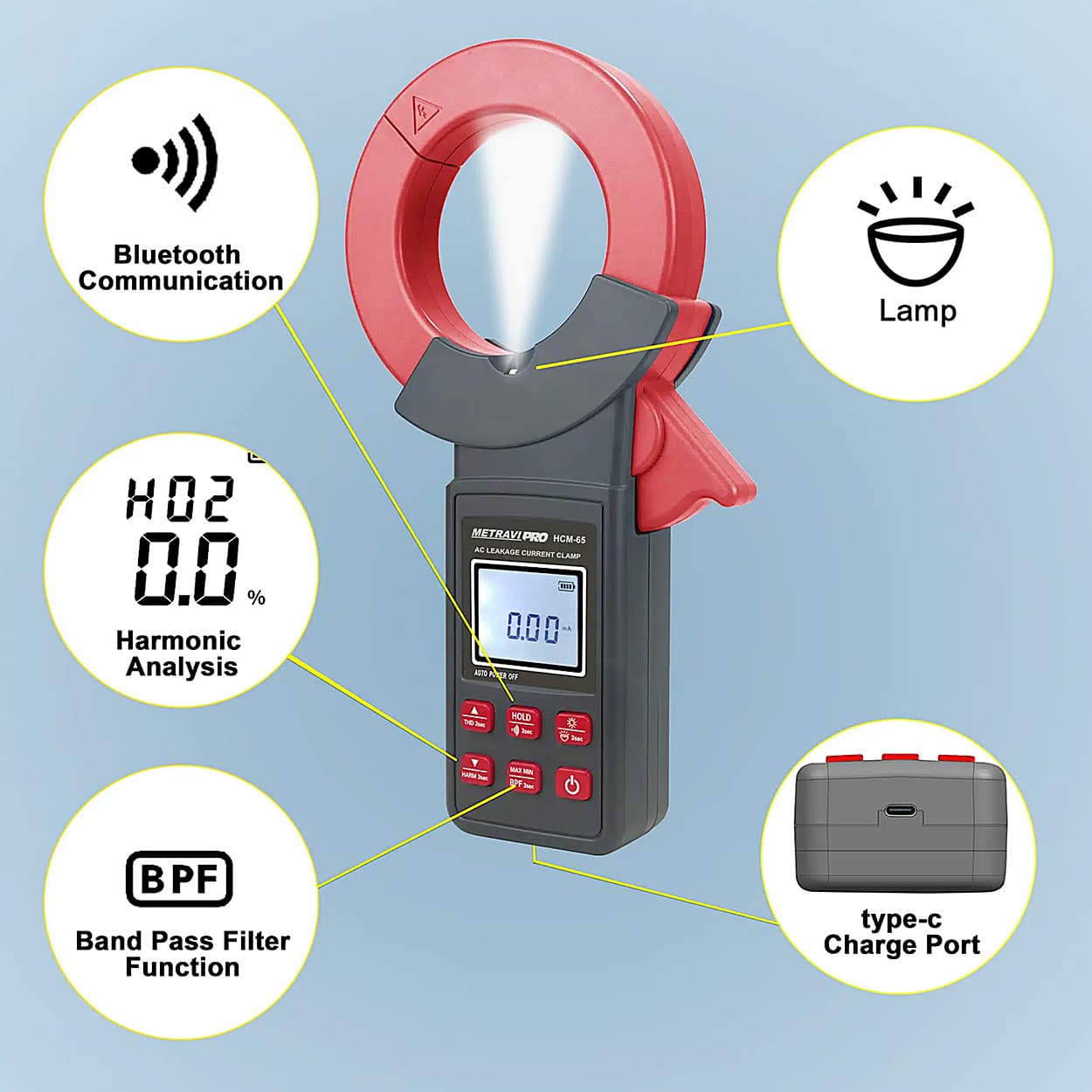

The PRO HCM-65 has test functions such as True Virtual Value measurement, Filtering Function, Maximum / Minimum / Average values, Harmonics, Distortion Rate, etc., which can test Current in the frequency range of 40Hz to 1kHz. It also features Backlight, Flashlight, Data Hold, Bluetooth communication and uses rechargeable, large-capacity, lithium batteries.


Functions:

  • Data Hold
  • Backlight
  • Distortion Rate
  • Values: Max, Min, Avg
  • Bluetooth Function: Yes, After installing the APP, can test or view the test results on mobile
  • Automatic Shutdown: After starting up about 5 minutes without any operation, the meter will automatically shuts down to reduce battery consumption


Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.

Specifications

SKUME.EL.LE.00020
Product TypeLeakage Testers
Model NoPRO HCM65
Jaw Size 40 mm
CT Size Ø 70 mm
Measurement Range 0.00mA ~ 1200A
Measurement Accuracy ±1.5%rdg ± 5dgt
Distortion Rate Yes (above 10mA)
Automatic Shutdown After 15 mins. of non-operation
Sampling Rate 2 times / second
Working Current 60mA (open flashlight 72mA)
Display Mode 4 digital LCD display, 47mm × 28.5mm
Working Environment -10°C – 50°C, Below 80%RH
Store Environment -20°C ~ 60°C
Insulation Strength AC3700V/rms (Between iron core and shell)
Data Store 2000 groups (store via App),
Filter Function Filter off: 40Hz ~ 1kHz, Filter on : 40Hz ~ 70Hz
Working Line Voltage Below AC 600V circuit line to test
Power Supply 3.7V/1000mAh rechargeable lithium battery
Battery Charger USB Type C
Harmonic 21 orders (above 10mA)
Meter Size 237 mm × 131 mm × 40 mm
Overflow Display Exceed measure range overflow function : “OL” symbol display
Suitable Safe Standard IEC1010-1, IEC1010-2-032, Pollution 2, CAT III (600V)
