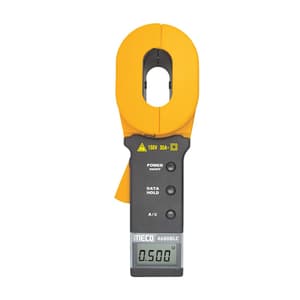

The faults in any Electrical System are unavoidable. Earthing plays an important role in Generation, Transmission & Distribution for safe and proper operation of any Electrical Installation. MECO 4680BL Clamp-On Earth / Ground Resistance Tester has long jaw suitable for Earthing Strip of 65mm x 32mm. It completely eliminates the use of ground and auxiliary rods thus saving lot of time and avoiding shutdown. Calibration check can be verified by using the Resistance Verification Plate provided. This is an extremely handy instrument especially at place where it is next to impossible to measure Earth / Ground Resistance by conventional methods. Substantial time saving and easy operating justify the investment in these instruments.

Features & Benefits:

• Non Contact Ground Resistance Measurement
• No Auxillary Electrodes Needed
• Data Storing Memory
• Data Hold, Noise Signal
• Ground Resistance Measurement 0.01 ~1000 V V
• Suitable for Earthing Strip of 65mm x 32mm
• Leakage Current (0.5mA~30.00A) (Model 4680BLC)
• Auto Ranging
• Continuity Loop Test
• Auto Power Off

Accessories:

• Resistance Verification Plate x 1
• Battery (installed) x 1
• User Manual x 1
• Carry Box x 1

Specifications:

Ground Resistance (Auto Range) (4680BL, 4680BLC)

Range	Resolution	Accuracy
0.010 ~ 0.099 V	0.001 V	± (1%+0.01 )
0.10 ~ 0.99 V	0.01 V	± (1%+0.01 )
1.0 ~ 49.9 V	0.1 V	± (1.5%+0.1 )
50.0 ~ 99.5 V	0.5 V	± (2%+0.5 )
100 ~ 199 V	1 V	± (3%+1 )
200 ~ 395 V	5 V	± (6%+5 )
400 ~ 590 V	10 V	± (10%+10 )
600 ~ 1000 V	20 V	± (20%+20 )

General Specifications:

Jaw Opening Size : 65 x 32 mm Approx.

Conductor Size : 65 mm * 32 mm

Battery Type : 1.5V (AA) x 4 (Alkaline)

Display : 4 Digit 9999 counts LCD

Range Selection : Auto

Memory : 99 Sets

Overload Indication : OL

Operating Environment : -10°C ~ 55°C

Configurable Alarm: Resistance : 1~199V Current : 1~499mA

Dimensions : 293 x 90 x 66 mm (approx.)

Weight : 1250gms including battery (approx.)

Accessories : Resistance Verification Plate x 1, Battery 1.5V (AA) x 4 (Installed), User Manual x 1, Carry Bag x 1
