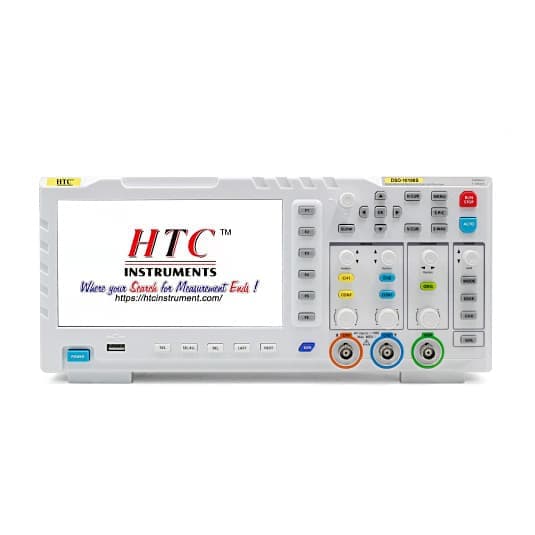

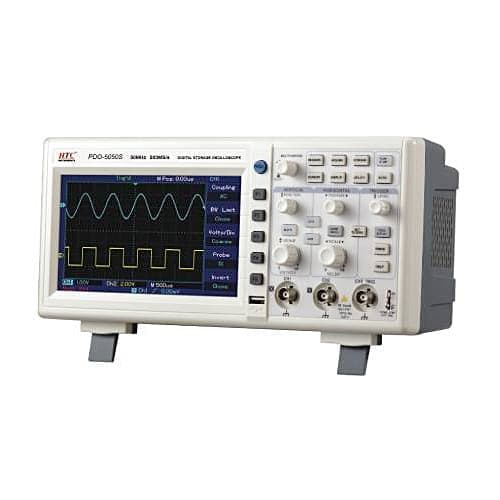

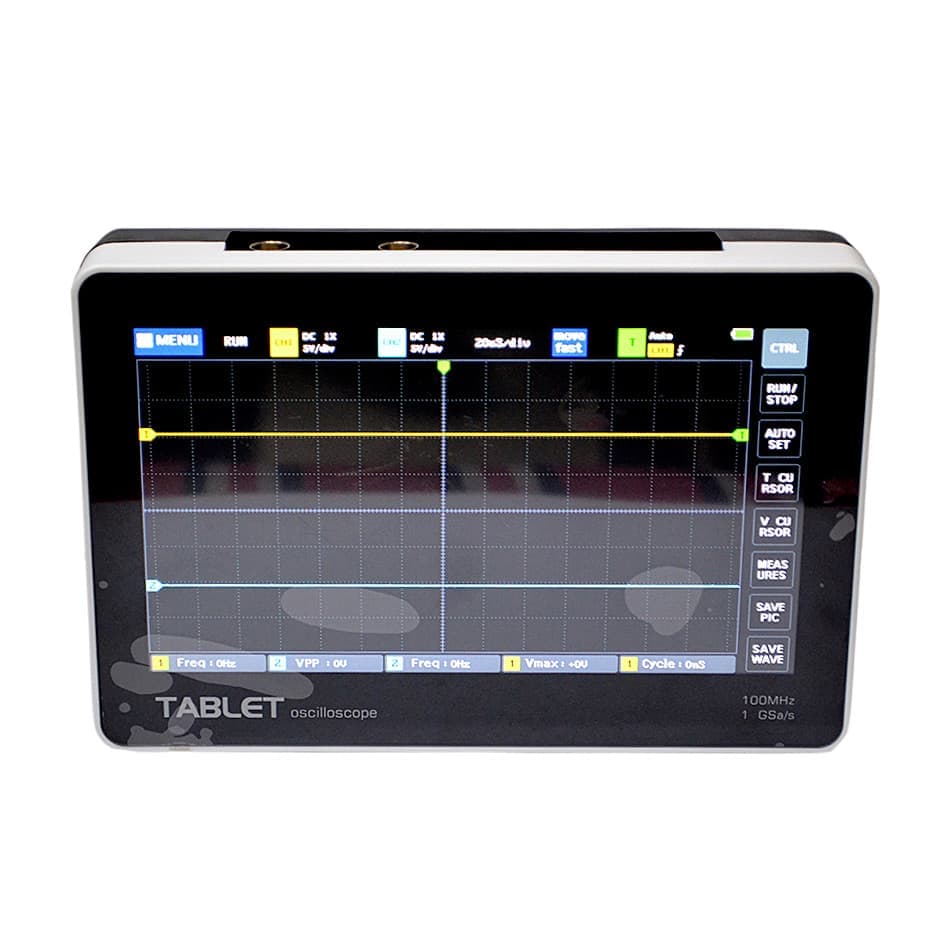

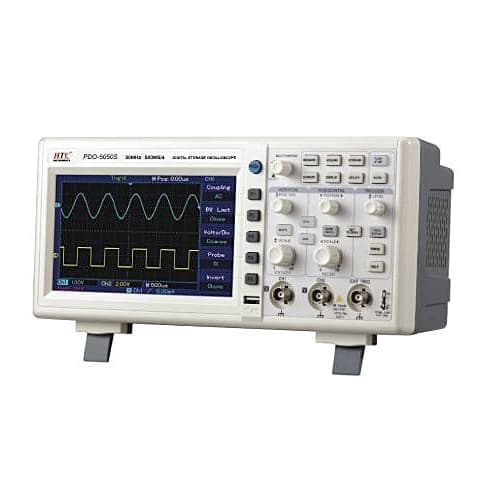

The digital oscilloscope has advanced features of storage, triggering and measurement. Also, it displays the signal visually as well as numerically. The digital oscilloscope digitises and stores the input signal.

Trigger:

Trigger sensitivity	≤1div
Trigger level scope
	Internal	±5div away from screen center
	EXT	±3V
	EXT/5*	±15V
(Typical) precision of trigger	Internal	±(0.3div V/div) (within scope of ±4div ± from screen center)
level for signal of which Rise	EXT	±(6% of set value + 40mV)
Time or Descend Time is	EXT/5*	±(6% of set value + 200mV)
not less than 20ns
Pre-trigger ability	Normal mode/scanning mode, pre-trigger/delay trigger with adjustable pre-trigger depth
Inhibition scope	PDO-50200S: 100ns-1.5s PDO-5025S/5050S/5070S/50100S : 80ns-1.5s
(Typical) level set to 50%	Operation if frequency of input signal is not less than 50Hz



Measurement:

Cursor	Manual mode	Voltage difference (V) between cursors;
		Time difference (T) between cursors;
		Reciprocal of T(1/)
	Tracing mode	Voltage and time of waveform point
		It is allowed to display cursor during automatic measurement
Automatic measurement	Peak value, amplitude, the maximum value, the minimum value, top value, bottom value, middle value, average value, root-mean-square, overshoot, preshoot, frequency, cycle Rise Time, Descend Time, positive pulse width, negative pulse width, positive duty cycle negative duty cycle and delay
Mathematical operation	+,-,x,%
Stored waveform	PDO-50200S/PDO-5025S/5050S/5070S/50100S: 20 groups of waveform and 20 kinds of setup
FFT	Window	Hanning, Hamming, Blackman, Rectangle
	Sampling point	1024 points
Lissajous’s figure	Phase location	±3degrees
	difference



Power:

Power Voltage	100-240VACRMS, 45-440Hz, CAT II
Power Consumption	To be less than 30VA
Fuse	F1.6AL 250V; Fuses are on Power board in the unit
Dimension	Width	320mm
	Height	150mm
	Depth	130mm
Weight	Not containing package	2.5kg
	Containing package	4.0kg
