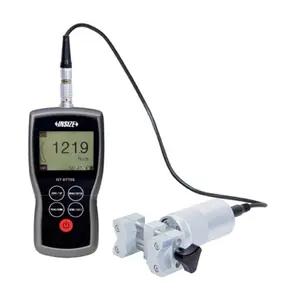

Insize 0.05 - 1 nm Digital Torque Tester (Type-B), IST-DTT1S
Roll over image to zoom zoom_in
- Weight: 1.4 Kg
- Product Type: Torque Testers
- Torque Value: 0.05 - 1 nm
- Resolution: 0.0001Nm
- receiptGST Invoice
- headphonesCustomer Service
- lockSecure Payments
- policyReturns & Warranty
- home_pinOrder Tracking
- paymentsBuy in Installments
₹144495.72 (Incl. of all taxes)
₹122454+ ₹22041.72 GST (18%)
MRP ₹188391
SAVE 35%
3 Business Days
1 Set
90318000
picture_as_pdfDownload Product Leafletkeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
Highlights

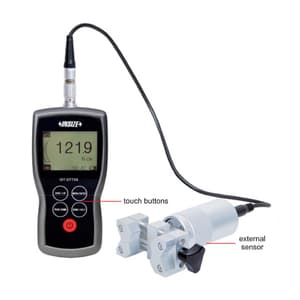

- External sensor
- Metal case, touch buttons
- Clockwise and counter-clockwise operation
- Test mode: track, peak, first peak, preset tolerance
- Unit: Ibf.in, Ibf.ft, N.m, N.cm, kgf.cm
- Set tolerance with judgement
- 1000 memories
- LCD display with backlight, can automatically turn 180°
- Overload alarm
- Automatic power off
Package Content:
| Main unit | 1 Pc |
| External Sensor | 1 Pc |
| AC/DC Adapter | 1 Pc |
| Transmission Cable (Keyboard Signal) | 1 Pc |
| Measuring Software | 1 Set |
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| SKU | HA.WR.TO.00377 |
|---|---|
| Product Type | Torque Testers |
| Model No | IST-DTT1S |
| Torque Value | 0.05 - 1 nm |
| Resolution | 0.0001Nm |
| Max. Clamping Diameter | Ø50 mm |
| Type | B |
| Sampling Frequency | 2000Hz |
| Accuracy | ±0.3% (of Load Capacity) |
| Output | USB, RS232, Alarm Signal |
| Power Supply | Built-in Rechargeable Battery |
| Dimension (mm) | 145 x 73 x 34 mm |
