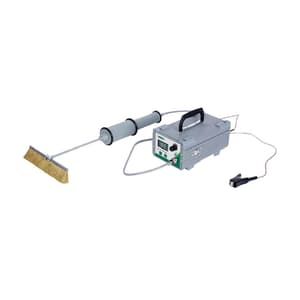

Insize 0.05 - 10 mm Holiday Detector, 9511-HA30

Shop all Insize

SKU: ME.NO.DE.00065

Model: 9511-HA30

Roll over image to zoom zoom_in
  1. Insize 0.05 - 10 mm Holiday Detector, 9511-HA30
  2. Insize 0.05 - 10 mm Holiday Detector, 9511-HA30

  • Weight: 2.5 Kg
  • Product Type: Detectors
  • Range (mm): 0.05 - 10 mm
  • Output Voltage: 0.6 ~ 30.0kV (Stepless Adjustable)
See all product information chevron_right
  • receiptGST Invoice
  • headphonesCustomer Service
  • lockSecure Payments
  • policyReturns & Warranty
  • home_pinOrder Tracking
  • paymentsBuy in Installments

67920.8 (Incl. of all taxes)

57560+ ₹10360.8 GST (18%)

MRP ₹94361

SAVE 39%



3 Business Days

1 Set

82054000

picture_as_pdfDownload Product Leafletkeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right

Highlights

  • Inspect anti-corrosion coating status of different thickness with adjustable pulse high-voltage, coating includes insulating paint, glass lining rubber lining, glass fiber reinforced plastic, coal tar epoxy, etc
  • When the brush with pulse high-voltage moves near the crack, pinhole or thin area on the coating surface, which results in gap gas breakdown and discharge spark, sound and light alarm will appear on the probe and the alarm sound can be heard with the headphone
  • LCD display with light-control backlight
  • Built-in rechargeable battery, easy to carry and suitable for outdoor inspection
  • Automatic power off
  • Arc brush and circular probe can be customized
  • Measuring Range: 0.05 ~ 10 mm (Customization for inspecting coating thicker than 10mm is available)


What's Included in this Package:

1x Holiday Detector
1x Probe

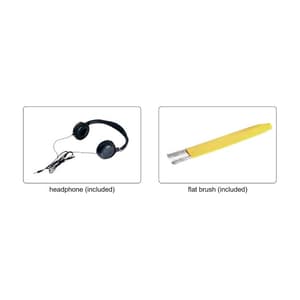

1x Strip Brush
1x Flat Brush
1x Ground Wire
1x Ground Rod
1x Headphone
1x AC/DC Adapter

Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.

Specifications

SKUME.NO.DE.00065
Product TypeDetectors
Model No9511-HA30
Range (mm) 0.05 - 10 mm
Output Voltage 0.6 ~ 30.0kV (Stepless Adjustable)
Resolution 0.1kV
Power < 5W
Power Supply 12V Rechargeable NI-MH Battery
Dimension 220 x 130 x 88 mm
