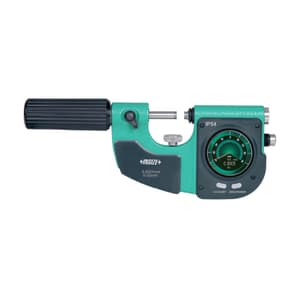

Insize 25 - 50 mm Bluetooth Digital Indicating Snap Gauge, 3509-50
Roll over the image to zoom in
Key Features
- Product Type: Snap Gauge
- Range (mm): 25 - 50 mm
- Range (inch): 1 - 2 inch
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹63,514 (Incl. of all taxes)
₹53,825 + ₹9,689 GST (18%)
MRP was MRP ₹79,154
Save 32%
3 Business Days
1
–
Download Product LeafletNot available
Download Insize CatalogueNot available
Download Insize CatalogueNot available
Highlights
- Absolute encoder, the original data remains after power off
- Reading in digital and analog

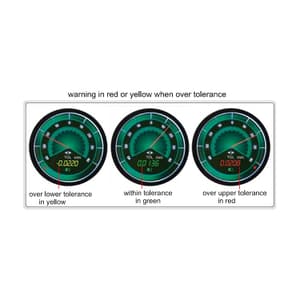

- Button function: on/off, zero setting, mm/inch, tolerance, display setting, bluetooth, signal mode setting, data output

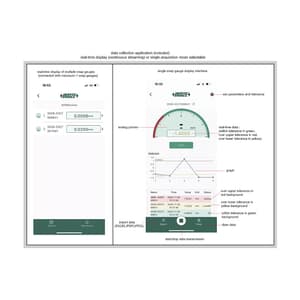

- Android and iPhone APP, USB type-C cable are included
- Carbide measuring faces
- Power: rechargeable Li-battery, for 20 hours continuous working (Bluetooth transmission reduce working hours)
- Optional accessory: gauge blocks grade 0 (4101-A series), for zero setting
- Setting Standards are not included

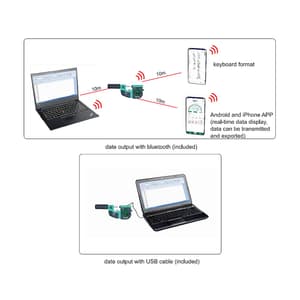

Data Output:
| Data output with Bluetooth (transmission distance is 10 meters) | Keyboard Format | Data can be transmitted to Excel, Word, txt, etc. | Single Transmission |
| Virtual Com Port | Data can be transmitted to Android and iPhone APP | real-time display, data can be transmitted and exported | |
| Data Output USB Cable (Cable Length 1.8 meters) | Keyboard Format | Data can be transmitted to Excel, Word, txt, etc. | Single Transmission |
| Virtual Com Port | Data can be transmitted to serial communication software | Single Transmission |
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
Specifications
| Range (mm) | 25 - 50 mm |
|---|---|
| Range (inch) | 1 - 2 inch |

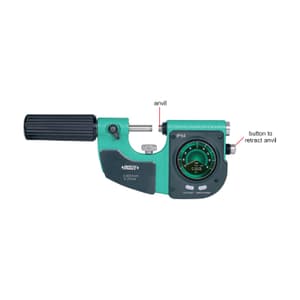

| Measuring Stroke of Anvil | 1 mm |
| Resolution | 0.0001 mm / 0.000005 inch |
| Accuracy | 1μm |
| Repeatability | 0.3μm |
| Protection | IP54 Waterproof |
