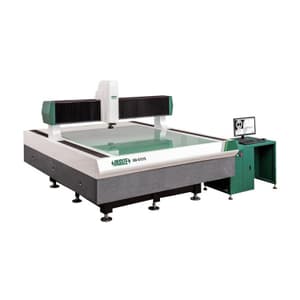

Insize 1000 x 1200 x 200 mm CNC Vision Measuring System with Computer, ISD-G1012
Roll over image to zoom zoom_in
- Weight: 2500 Kg
- Product Type: Optical Measuring
- Measuring Range (X x Y x Z): 1000 x 1200 x 200 mm
- Glass Stage Size (mm): 1100 x 1300 mm
- receiptGST Invoice
- headphonesCustomer Service
- lockSecure Payments
- policyReturns & Warranty
- home_pinOrder Tracking
- paymentsBuy in Installments
₹5100737.62 (Incl. of all taxes)
₹4322659+ ₹778078.62 GST (18%)
MRP ₹5471720
SAVE 21%
15 Business Days
1 Set
90318000
picture_as_pdfDownload Product Leafletkeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
Highlights
- Automatic edge-detection, focus, measuring, contour scanning, calibration, etc.
- Double close-loop motion control, with precise positioning performance in high-speed movement
- Granite body, more stable
- Servo motors for X, Y, Z axis
- SPC function for large quantity measurement

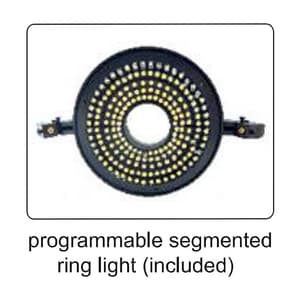

- Illumination: programmable segmented ring light (Contour), adjustable LED Light (Surface)
- Accuracy: ≤(3.5+L/200)µm (L is the measuring length in mm)
What's Included in this Package:
| Main unit | 1 pc |

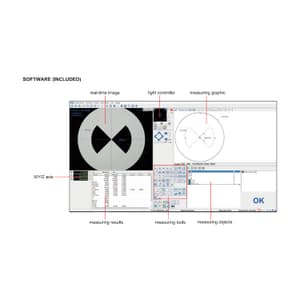

| Software | 1 pc |
| Dongle | 1 pc |
| Controller | 1 pc |
| Computer | 1 pc |
| Calibration Glass Chart | 1 pc |
| Clay | 1 pc |
| Inspection Certificate | 1 pc |
Once the Order is Placed, it can not be cancelled & Delivery time will be as per Stock Availiblity & it may take upto 25 days. Training & Installation will be charged extra if required.
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| SKU | ME.DI.OP.00030 |
|---|---|
| Product Type | Optical Measuring |
| Model No | ISD-G1012 |
| Measuring Range (X x Y x Z) | 1000 x 1200 x 200 mm |
| Glass Stage Size (mm) | 1100 x 1300 mm |
| Resolution of X/Y/Z Axis | 0.5µm |
| Repeatability of X/Y Axis | 3µm |
| Objective | 0.7X - 4.5X (zoom) |
| Working Distance | 92 mm |
| View Field (Diagonal Length) | 1.0 - 6.6 mm |
| Magnification | 37.2X - 236.0X (On 21.5" Monitor) |
| Camera | 1/2" Color CCD, 2M pixel |
| Max. Height of Workpiece | 200 mm |
| Max. Weigth of workpiece | 35Kg |
| Operation System | Windows 10/11 |
| Drive Method | Automatic |
| Power Supply | 220V, 50/60Hz |
| Dimension (L X W X H) | 1620 x 1920 x 1600 mm |
