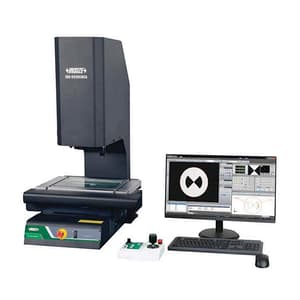

Insize 220 x 120 x 150 mm CNC Vision Measuring System with Computer and Without Desk, ISD-V220CNCA
Roll over the image to zoom in
Key Features
- Product Type: Optical Measuring
- Weight: 146 kg
- Stage size: 450 x 280 mm
- Objective: 0.7X~4.5X (zoom)
- Operation System: Windows 7/8/10
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹16,79,822 (Incl. of all taxes)
₹14,23,578 + ₹2,56,244 GST (18%)
Out of Stock
3 Business Days
1
90319000
Download Product LeafletNot available
Download Insize CatalogueNot available
Download Insize CatalogueNot available
Product Information
Highlights
- Automatic edge-detection, focus, measuring, contour scanning, calibration, etc.
- Servo motors for X, Y, Z axis
- SPC function for large quantity measurement

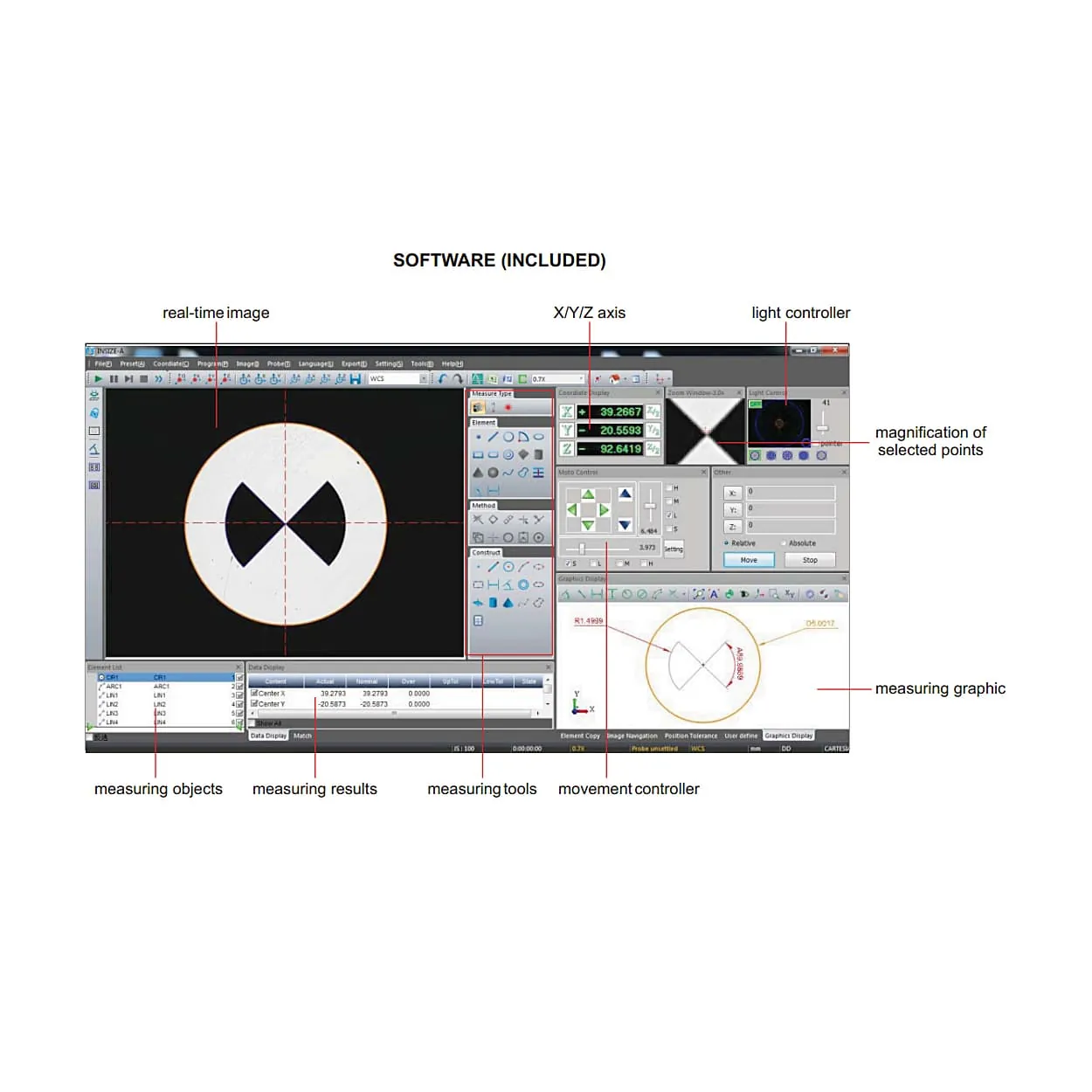

- Measuring software is included
What's Included in this Package:
| Main unit | 1 pc |
| Software | 1 pc |
| Computer | 1 pc |
| 24-inch Display | 1 pc |

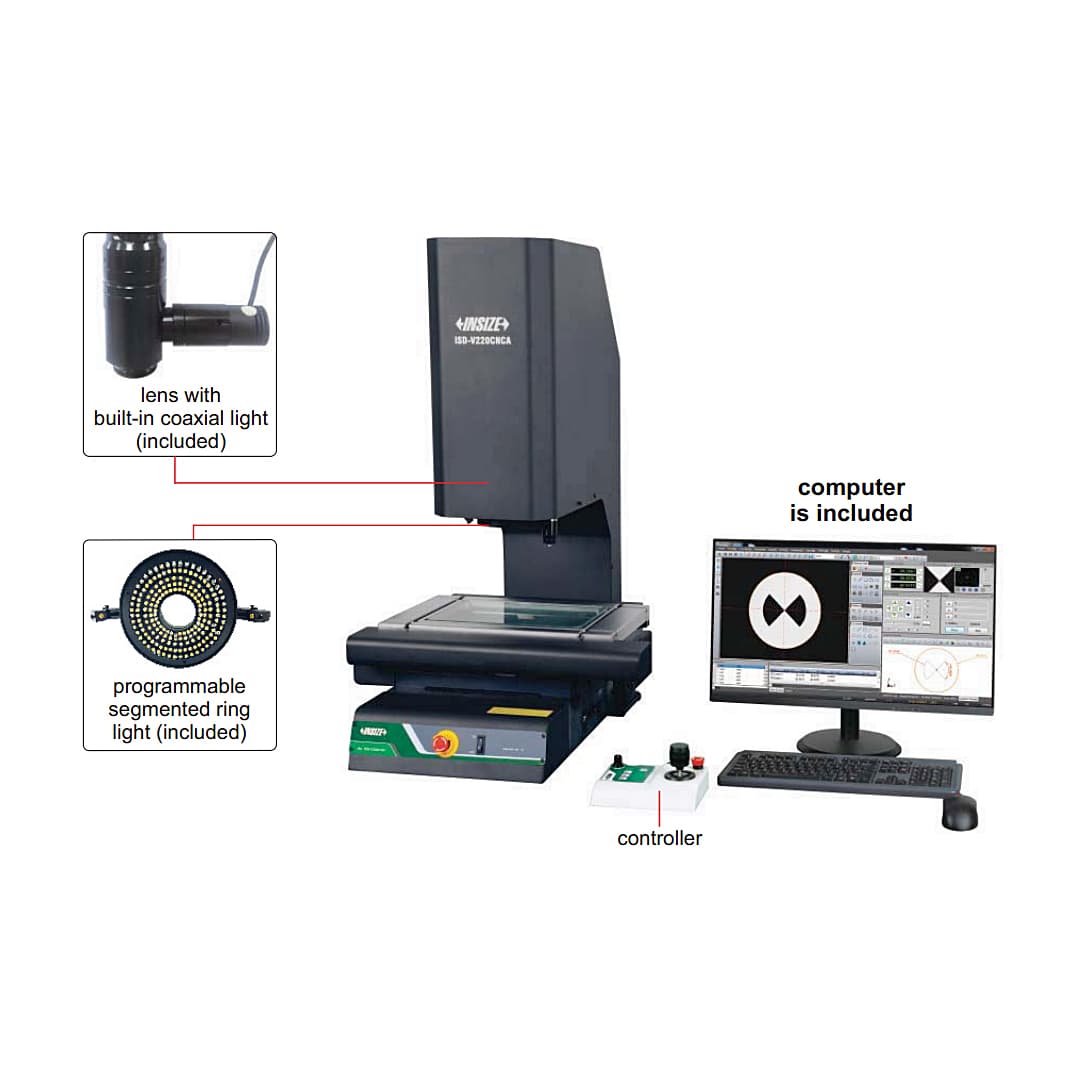

| Len with Coaxial Light | 1 pc |
| Controller | 1 pc |
| Calibration Glass Chart | 1 pc |
| Laser Positioner | 1 pc |
| Clay | 1 pc |
| Anti-dust Cover | 1 pc |
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
Specifications
| Measuring Range (X x Y x Z) | 220 x 120 x 150 mm |
|---|---|
| Stage size | 450 x 280 mm |
| Glass stage size | 306 x 196 mm |
| Resolution of X/Y/Z axis | 0.5μm |
| Accuracy of X/Y axis | <(3.5+L/100)μm (L is the measuring length in mm) |
| Repeatability of X/Y axis | 2μm |
| Objective | 0.7X~4.5X (zoom) |
| Working distance | 92 mm |
| Magnification (With Manual Zoom Lens) | 33.0X~208.6X (on 24'' monitor) |
| Magnification (With Motorized Zoom Lens) | 31.9X ~ 188.7X (On 24" monitor) |
| Camera | Giga-bit Network Camera |
| Illumination (Surface) | Coaxial Light, Programmable Segmented Ring Light |
| Illumination (Contour) | Adjustable LED Light |
| View Field (Diagonal Length) | 1.5 ~ 10.8 mm |
| Max. Height of Workpiece | 150 mm |
| Max. Weigth of workpiece | 30Kg |
| Operation System | Windows 7/8/10 |
| Drive Method | Automatic |
| Power Supply | 220V, 50/60Hz |
| Dimension (L X W X H) | 760 x 600 x 900 mm |
