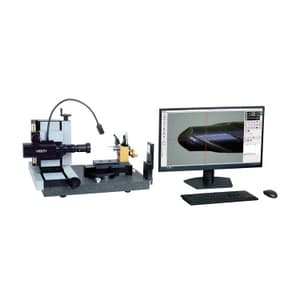

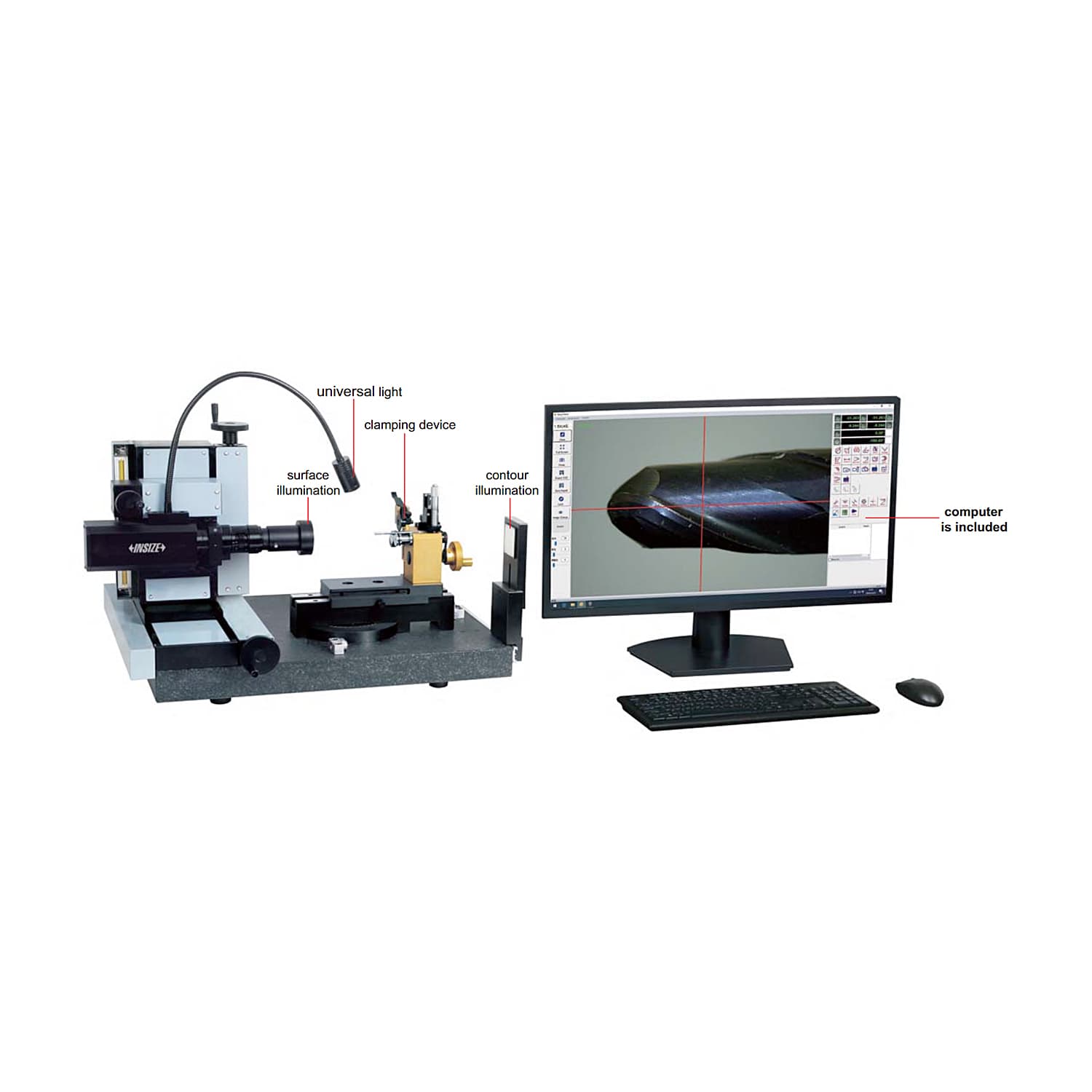

• CAD Comparison & Scan max. Profile
• Measurement and inspection of milling cutters, drill bits, non-standard molding tools under surface light
• Profile measurement, automatic profile capture for straight and helical fluted tools
• Import and export CAD files
• High magnification for clear observation of tool chipping and grinding wheel pattern on the back face
• Granite platform, more stable
• Ergonomically designed structure, easy and quick to operate
• The crosshairs of the cutting edge can be automatically recognized and captured
• Automatic and manual measurements
• Data storage, analysis, management, photography, image storage and management

Measurement items:

• Drill bit: helical angle bandwidth, back of blade, angle of main cutting edge in front, in back, back angle, top angle, cross angle, cross width, feed angle of internal edgeretreat angle height difference, cross-edge runout, rear blade width, B value, C value, tip chamfer angle, tip width, feed radius, chipformer parameters, overall comparison of dxf on end face.
• Milling cutter: groove front angle, back angle, groove depth, core thickness, spiral angle, belt width, blade width, end edge 1st 2nd back angle, front angle of the end blade, long tooth overcenter, parameters of the end tooth chipformer, taper, radius, chamfer size, etc.
• Tap: measurement of chamfer, groove shape, leading and trailing angles, tooth angle, pitch, pitch diameter.
• Blade: Using V-shaped fixtures for cross clamping or install on cylindrical tool holders to measure chamfers, back angles, and fillet sizes.
• Reamer: anterior angle, helix angle, core thickness, groove depth, belt width, chamfer, etc.
• Gun Drill Inspection
• Cutting edge wear inspection
• Step length
• Cutting edge end runout and trail runout
• Tool profile comparison

Standard Delivery:

Main unit	1 pc
Computer	1 pc
Dongle	1 pc

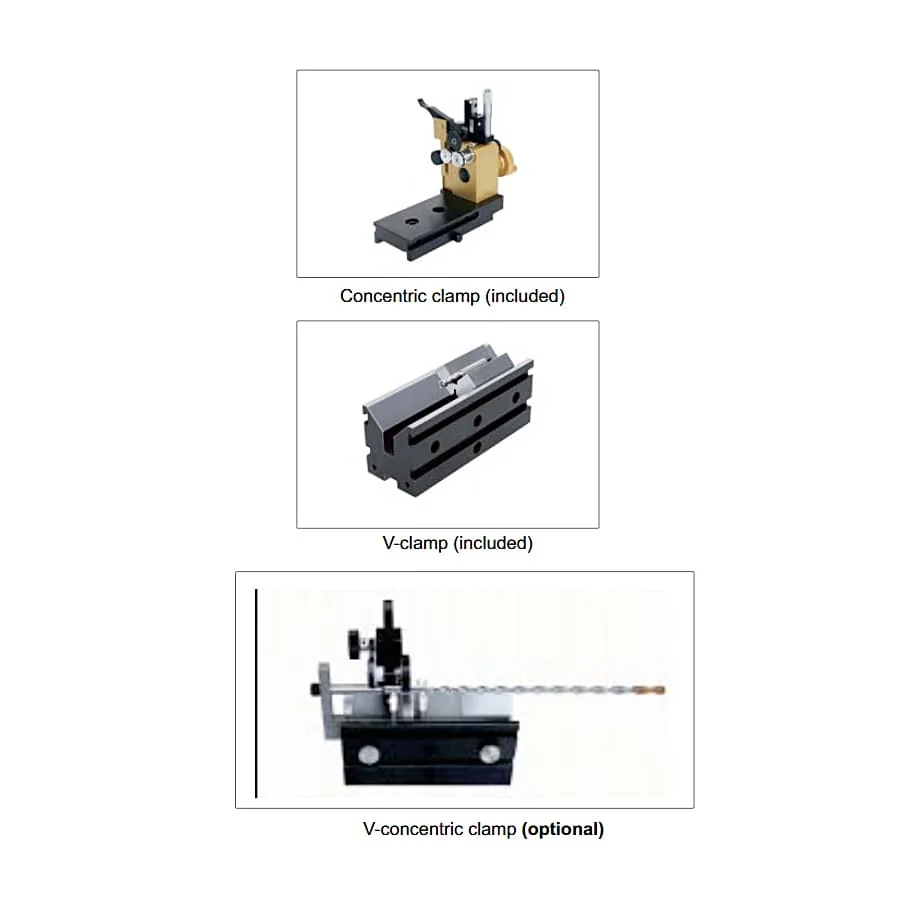

Concentric Clamp	1 pc
V-clamp	1 pc
Anti-dust cover	1 pc

Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
