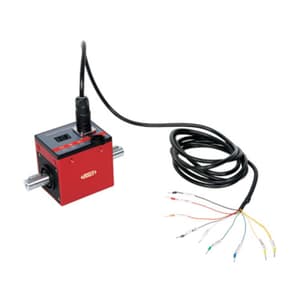

Insize 10000 Nm Dynamic Torque Sensor, IST-TA10000
Roll over image to zoom zoom_in
- Product Type: Torque Sensors
- Max. Torque: 10000 Nm
- Rated RPM: 3000 RPM
- receiptGST Invoice
- headphonesCustomer Service
- lockSecure Payments
- policyReturns & Warranty
- home_pinOrder Tracking
- paymentsBuy in Installments
₹253661.06 (Incl. of all taxes)
₹214967+ ₹38694.06 GST (18%)
MRP ₹330719
SAVE 35%
3 Business Days
1 Pcs
90318000
picture_as_pdfDownload Product Leafletkeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
Highlights

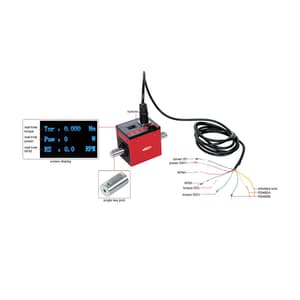

- Real-time display of torque, RPM & power values
- Support RS485 communication, support active uploading protocols
- Communication rate up to 1000 Hz
- The torque signal is +5V transformed voltage output
- OLED display, resolution 128*64
- Simple calibration, zeroing, filtering, etc. can be performed
- Attention: Customization Is Required For RPM Exceeding The Rated RPM

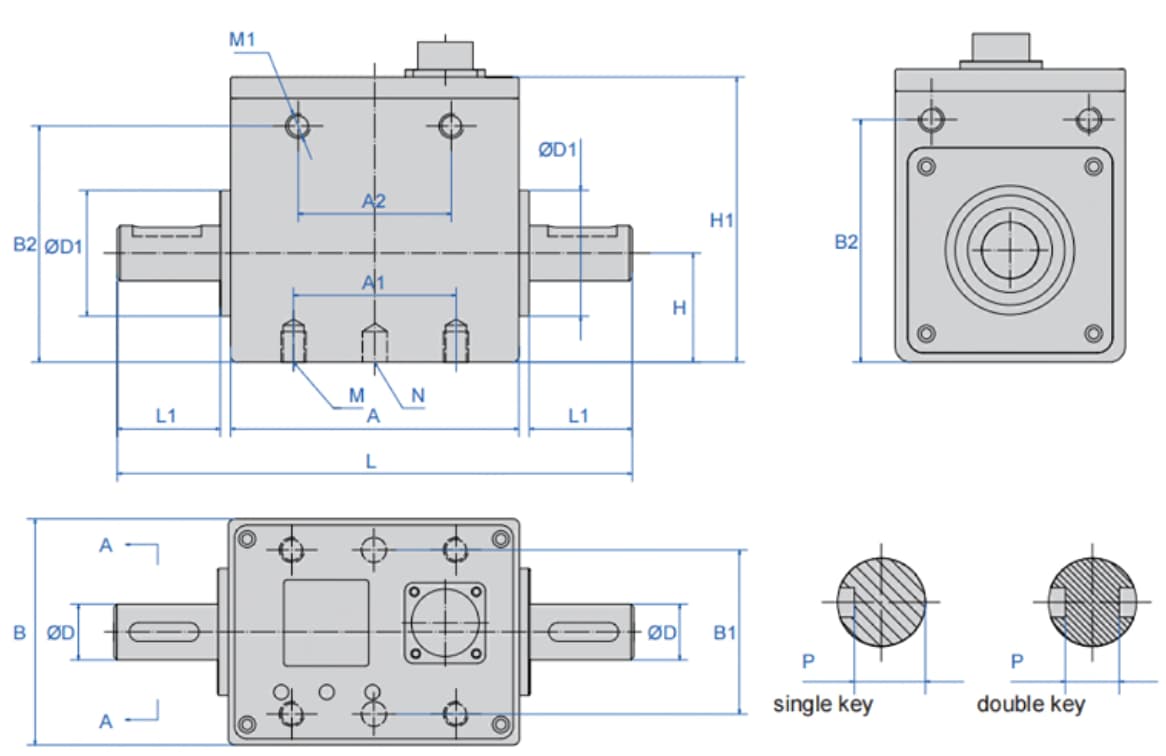

Dimension Measurement:
 | |
| D | 98 mm |
| B | 160 mm |
| L | 356 mm |
| L1 | 100.5 mm |
| H | 80 mm |
| H1 | 191.6 mm |
| A1 | 80 mm |
| A2 | 80 mm |
| B1 | 120 mm |
| B2 | 157 mm |
| D1 | 129 mm |
| M | 4-M12 depth 25 mm |
| M1 | 4-M12 depth 25 mm |
| P | 78 mm |
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| SKU | HA.WR.TO.00434 |
|---|---|
| Product Type | Torque Sensors |
| Model No | IST-TA10000 |
| Max. Torque | 10000 Nm |
| Rated RPM | 3000 RPM |
| Key Size (L x W) | 90 - 28 mm (Double Key) |
| RPM Signal | 120/60/10 pulses/rev. |
| Zero Output | ±0.1%F.S. |
| Accuracy | 0.1%F.S. |
| Hysteresis | 0.5%F.S. |
| Repeatability | 0.1%F.S. |
| Creep (30 Minutes) | 0.05%F.S. |
| Temperature Sensitivity Drift | 0.05%F.S./10°C |
| Zero Temperature Drift | 0.05%F.S./10°C |
| Response Time | 0.6ms (50% Response) |
| Response Frequency | 1kHz |
| Max. Torsion Angle | 2.6x10rad (0.149°) |
| Inertial Torque | 0.38kg.cm |
| Intrinsic Frequency of Rotor Vibration | 19.4kHz |
| Torque Constant | 3.85x10N.m/rad |
| Material | Stainless steel |
| Annual Stability | 0.3%/year |
| Load Resistance | >2k ohm |
| Power Supply | DC24V 0.2A |
| Working Environment | -10~50°C <85%RH |
| Safety Overload | 150% |
| Extreme Overload | 200% |
| Cable Specification | Ø5mm x 3m |
| Extreme Cable Pulling Force | 10 Kg |
