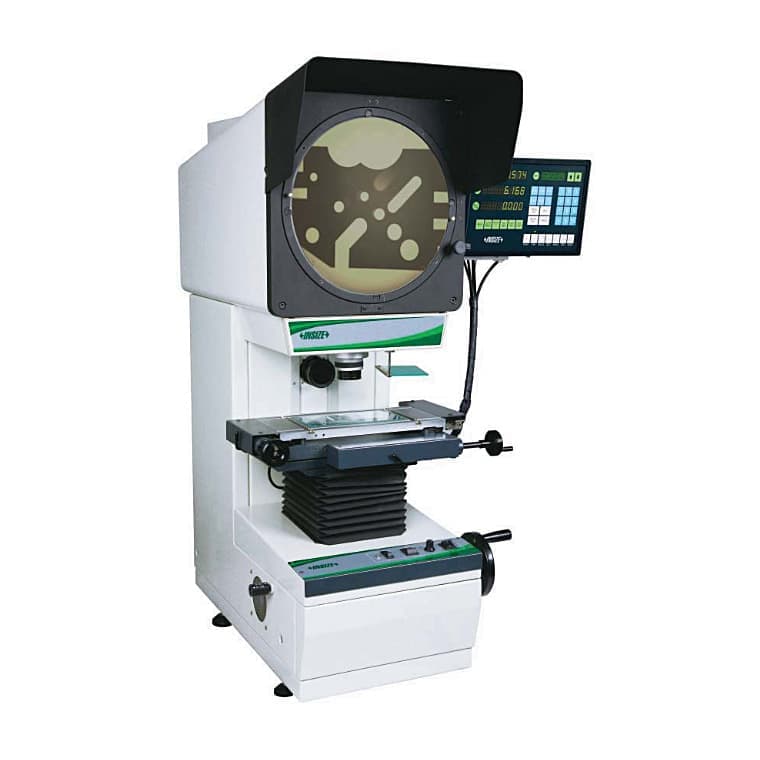

Insize 150 x 50 mm Basic Type Profile Projector (Erect Image), ISP-D150A
Roll over image to zoom zoom_in
- Weight: 125 Kg
- Product Type: Projector
- Image: Erect Image
- X-Y Stage Travel Range: 150 x 50 mm
- receiptGST Invoice
- headphonesCustomer Service
- lockSecure Payments
- policyReturns & Warranty
- home_pinOrder Tracking
- paymentsBuy in Installments
₹378206.52 (Incl. of all taxes)
₹320514+ ₹57692.52 GST (18%)
MRP ₹433127
SAVE 26%
15 Business Days
1 Pcs
90318000
picture_as_pdfDownload Product Leafletkeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
Highlights
- Contour illumination: 24V/150W halogen lamp, brightness is adjustable
- Surface illumination: 24V/150W halogen lamp
Technical Data:
| Projector Screen | Diameter: Ø300mm | |||||
| Rotation Range: 0 - 360°, Resolution: 1 inch or 0.05° | ||||||
| Reference Lines: Cross-hairs | ||||||
| Lens | Magnification | 10X (included) | 20X (Optional) | 50X (Optional) | 100X (Optional) | |
| View Field | Ø30 mm | Ø15 mm | Ø6 mm | Ø3 mm | ||
| Working Distance | 77.7 mm | 44.3 mm | 38.4 mm | 25.3 mm | ||
| Max. Workpiece Height | 90 mm | 90 mm | 90 mm | 90 mm | ||
Standard Delivery:
| Main unit | 1 Pc |
| 10 X lens with half-reflection mirror and oblique illuminator mirror | 1 Pc |
| Overlay chart clip | 4 Pc |
| Foot-switch | 1 Pc |
| Anti-dust cover | 1 Pc |
Optional Accessory:
| 20X lens with half-reflection mirror and oblique illuminator mirror | ISP-D150-LENS20X |
| 50x lens with half-reflection mirror | ISP-D150-LENS50X |
| 100X lens with half-reflection mirror | ISP-D150-LENS100X |
| Rotary table | ISP-D150-TABLE |
| Overlay chart | ISP-D150-CHART |
| Swivel center support | ISP-D150-SUPPORT |
| V-block with clamp | ISP-D150-VBLOCK |
| 50mm reading scale | ISP-D150-SCALE50 |
| 300mm calibration scale | ISP-D150-RULE |
| Demo sample | ISP-D150-DEMO |
| Printer | ISP-D150-PRINTER |
Once the Order is Placed, it can not be cancelled & Delivery time will be as per Stock Availiblity & it may take upto 25 days. Training & Installation will be charged extra if required.
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
Specifications
| SKU | ME.DI.PR.00005 |
|---|---|
| Product Type | Projector |
| Model No | ISP-D150A |
| Image | Erect Image |
| Metal Stage Size | 340 x 150 mm |
| Glass Stage Size | 196 x 96 mm |
| X-Y Stage Travel Range | 150 x 50 mm |
| X-Y Stage Travel Resolution | 0.5µm |
| X-Y Stage Travel Accuracy | (4+L/75)µm (L is the measuring length in mm) |
| Z (focus) Travel Range | 90 mm |
| Max. Load Capacity | 4 Kg |
| Power Supply | 110/220V, 50/60Hz |
| Dimensions (WxDxH) | 770 x 550 x 1100 mm |
