Insize 250 x 150 mm Basic Type Profile Projector (Erect Image), ISP-D250A

Shop all Insize

SKU: ME.DI.PR.00009

Model: ISP-D250A

Roll over image to zoom zoom_in
  1. Insize 250 x 150 mm Basic Type Profile Projector (Erect Image), ISP-D250A
  2. Insize 250 x 150 mm Basic Type Profile Projector (Erect Image), ISP-D250A
  3. Insize 250 x 150 mm Basic Type Profile Projector (Erect Image), ISP-D250A
  4. Insize 250 x 150 mm Basic Type Profile Projector (Erect Image), ISP-D250A
Visit Insize Store keyboard_double_arrow_right
  • Weight: 145 Kg
  • Product Type: Projector
  • Image: Erect Image
  • X-Y Stage Travel Range: 250 x 150 mm
See all product information chevron_right
  • receiptGST Invoice
  • headphonesCustomer Service
  • lockSecure Payments
  • policyReturns & Warranty
  • home_pinOrder Tracking
  • paymentsBuy in Installments

₹548812.1 (Incl. of all taxes)

₹465095+ ₹83717.1 GST (18%)

MRP ₹628507

SAVE 26%

15 Business Days

1 Pcs

90318000

picture_as_pdfDownload Product Leafletkeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right

Highlights

  • Contour illumination: 24V/150W halogen lamp, brightness is adjustable
  • Surface illumination: 24V/150W halogen lamp


Technical Data:

Projector ScreenDiameter: Ø300mm
Rotation Range: 0 - 360°, Resolution: 1 inch or 0.05°
Reference Lines: Cross-hairs
LensMagnification10X (included)20X (Optional)50X (Optional)100X (Optional)
View FieldØ30 mmØ15 mmØ6 mmØ3 mm
Working Distance77.7 mm44.3 mm38.4 mm25.3 mm
Max. Workpiece Height90 mm90 mm90 mm90 mm


Standard Delivery:

Main unit1 Pc
10 X lens with half-reflection mirror and oblique illuminator mirror1 Pc
Overlay chart clip4 Pc
Foot-switch1 Pc
Anti-dust cover1 Pc

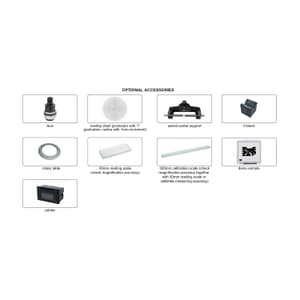

Optional Accessory:

20X lens with half-reflection mirror and oblique illuminator mirror ISP-D150-LENS20X
50x lens with half-reflection mirrorISP-D150-LENS50X
100X lens with half-reflection mirrorISP-D150-LENS100X
Rotary tableISP-D150-TABLE
Overlay chartISP-D150-CHART
Swivel center supportISP-D150-SUPPORT
V-block with clampISP-D150-VBLOCK
50mm reading scaleISP-D150-SCALE50
300mm calibration scaleISP-D150-RULE
Demo sampleISP-D150-DEMO
PrinterISP-D150-PRINTER

Once the Order is Placed, it can not be cancelled & Delivery time will be as per Stock Availiblity & it may take upto 25 days. Training & Installation will be charged extra if required.

Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.

Specifications

SKUME.DI.PR.00009
Product TypeProjector
Model NoISP-D250A
Image Erect Image
Metal Stage Size 405 x 280 mm
Glass Stage Size 306 x 196 mm
X-Y Stage Travel Range 250 x 150 mm
X-Y Stage Travel Resolution 0.5µm
X-Y Stage Travel Accuracy (4+L/75)µm (L is the measuring length in mm)
Z (focus) Travel Range 90 mm
Max. Load Capacity 4 Kg
Power Supply 110/220V, 50/60Hz
Dimensions (WxDxH) 780 x 780 x 1100 mm
