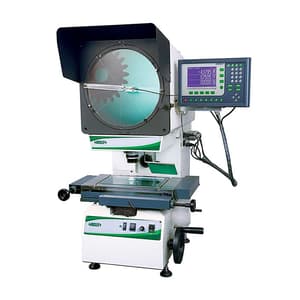

Insize 404 x 228 mm High Precision Profile Projector with Edge Detector, ISP-A5000E
Roll over image to zoom zoom_in
- Weight: 160 Kg
- Product Type: Projector
- Metal Stage Size: 404 x 228 mm
- receiptGST Invoice
- headphonesCustomer Service
- lockSecure Payments
- policyReturns & Warranty
- home_pinOrder Tracking
- paymentsBuy in Installments
₹764942.08 (Incl. of all taxes)
₹648256+ ₹116686.08 GST (18%)
MRP ₹831098
SAVE 22%
15 Business Days
1 Set
90318000
picture_as_pdfDownload Product Leafletkeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
Highlights
- Adjust the focus by ascending and descending the projector head, the stage doesn't move up and down
- Maximum workpiece weight 30kg
- Contour illumination: 24V/150W halogen lamp, brightness is adjustable
- Surface illumination: 24V/150W halogen lamp
Technical Data:
| Projector Screen | Diameter: Ø300 mm | |||||
| Rotation Range: 0 - 360°, Resolution: 1 inch or 0.01° | ||||||
| Reference Lines: Cross-hairs | ||||||
| Lens | Magnification | 10X (included) | 20X (Optional) | 50X (Optional) | 100X (Optional) | |
| View Field | Ø30 mm | Ø15 mm | Ø6 mm | Ø3 mm | ||
| Working Distance | 77.7 mm | 44.3 mm | 38.4 mm | 25.3 mm | ||
| Max. Workpiece Height | 90 mm | 90 mm | 90 mm | 90 mm | ||
Standard Delivery:
| Main unit | 1 Pc |
| 10 X lens half-reflection mirror and obliaue illuminator mirror | 1 Pc |
| Overlay chart clip | 4 Pc |
| Foot-switch | 1 Pc |
| Anti-dust cover | 1 Pc |
| Blue Filter | 1 Pc |

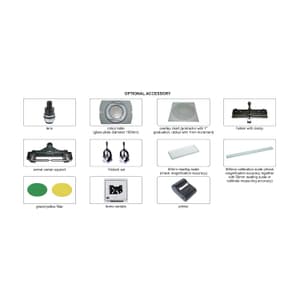

Optional Accessory:
- 20X lens with half-reflection mirror and oblique illuminator mirror (A1000-LENS20X)
- 50X lens with half-reflection mirror (ISP-A1000-LENS50X)
- 100X lens with half-reflection mirror (ISP-A1000-LENSIOOX)
- Rotary table for ISP-A4500E/A5000E (ISP-A5000-TABLE)
- Rotary table for ISP-A5001 E/A5002E (ISP-A5001-TABLE)
- Rotary table for ISP-A5003E (ISP-A5003-TABLE)
- Printer (ISP-A1000-PRINTER)
- Swivel center support for ISP-A4500E (ISP-A1000-SUPPORT)
- Swivel center support for ISP-A5000E/A5001E (ISP-A5000-SUPPORT)
- Overlay chart (ISP-A1000-CHART)
- Holder with clamp (ISP-A1000-HOLDER)
- V-block set (6896-12)
- 50 mm reading scale (ISP-A1000-SCALE50)
- 300 mm calibration scale (ISP-A1000-RULE)
- Green filter (ISP-A1000-GR-FILTER)
- Yellow filter (ISP-A1000-YE-FILTER)
- Demo sample (ISP-A1000-DEMO)
Once the Order is Placed, it can not be cancelled & Delivery time will be as per Stock Availiblity & it may take upto 25 days. Training & Installation will be charged extra if required.
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
Specifications
| SKU | ME.DI.PR.00022 |
|---|---|
| Product Type | Projector |
| Model No | ISP-A5000E |
| Magnification Accuracy | ±0.08% |
| Metal Stage Size | 404 x 228 mm |
| Glass Stage Size | 260 x 160 mm |
| X-Y Stage Travel Range | 200 x 100 mm |
| X-Y Stage Travel Resolution | 0.5µm |
| X-Y Stage Travel Accuracy | (3+L/75)µm (L is the measuring length in mm) |
| Z (focus) Travel Range | 100 mm |
| Max. Load Capacity | 30 Kg |

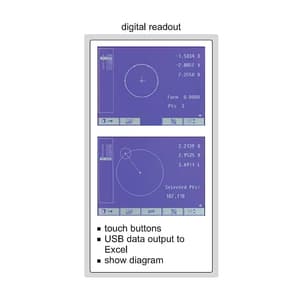

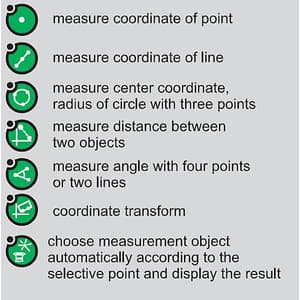

| Display | X-Z stage travel, screen rotation |
| Output | RS232C, USB (Data Output to Excel) |
| Image | Erect Image |
| Advanced Function | Programming for batch measurements |
| Power Supply | 220V, 50/60Hz |
| Dimensions (L x W x H) | 780 x 780 x 1100 mm |
