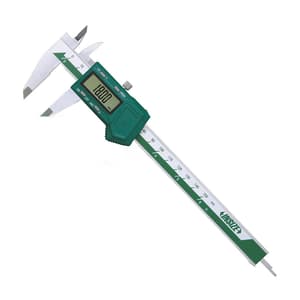

Insize 200 mm / 8 inch Digital Caliper (Absolute System), 1103-200
Roll over the image to zoom in
Key Features
- Product Type: Digital Caliper
- Range (mm): 0 - 200 mm
- Range (Inches): 0 - 8 inch
- Accuracy: ±0.03 mm
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹3,980 (Incl. of all taxes)
₹3,373 + ₹607 GST (18%)
MRP was MRP ₹7,028
Save 52%
3 Business Days
1
–
Download Product LeafletNot available
Download Insize CatalogueNot available
Download Insize CatalogueNot available
Highlights
- Absolute system, low power consumption, long battery life
- Resolution: 0.01mm/0.0005"
- Buttons: on/off, mm/inch, ORIGIN, ZERO/ABS
- Automatic power off, move the digital unit to turn on power
- Battery CR2032
- Data output
- Meet DIN862
- Made of stainless steel
- Optional accessory: Wireless transmitter, code 7315-1103, Data output cable (keyboard format), code 7302-1103
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
Specifications
| Range (mm) | 0 - 200 mm |
|---|---|
| Range (Inches) | 0 - 8 inch |
| Accuracy | ±0.03 mm |
| Resolution | 0.01 mm , 0.0005 inch |
| Power Supply | Battery CR2032 |
| Display | LCD |

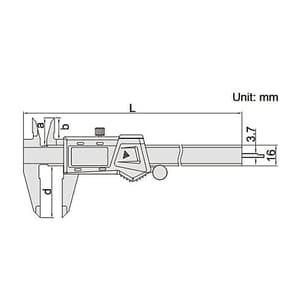

| Overall Length | 286 mm |
| Upper Jaw Length | 24 mm |
| Lower Jaw Length | 50 mm |
| Scale Width | 19.5 mm |
| Material | Stainless Steel |
| Applications | Used to measure Internal Diameter, Outer Diameter, Steps & Depth |
| Includes | Manufacturer Inspection certificate traceable to DKD Germany |
