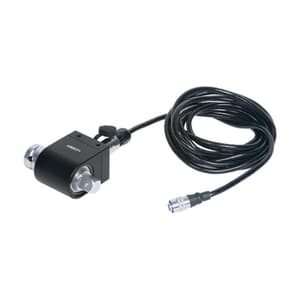

Insize 30 Nm Dynamic Torque Sensor (Compact Type), IST-IR30
Roll over image to zoom zoom_in
- Product Type: Torque Sensors
- Max. Torque: 30 Nm
- RPM Range: <3000 rpm
- receiptGST Invoice
- headphonesCustomer Service
- lockSecure Payments
- policyReturns & Warranty
- home_pinOrder Tracking
- paymentsBuy in Installments
₹135034.48 (Incl. of all taxes)
₹114436+ ₹20598.48 GST (18%)
MRP ₹165849
SAVE 31%
3 Business Days
1 Pcs
90318000
picture_as_pdfDownload Product Leafletkeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
Highlights

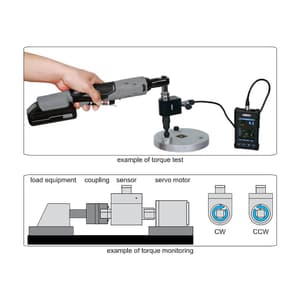

- Wide range of applications: for testing electric, pneumatic and manual torque screwdrivers and torque wrenches and other torque tools and torque monitoring
- Clockwise and counter-clockwise operation
- High overall accuracy, good long-term stability
- Attention: Not Suitable For High Speed Shock Torque Measurement

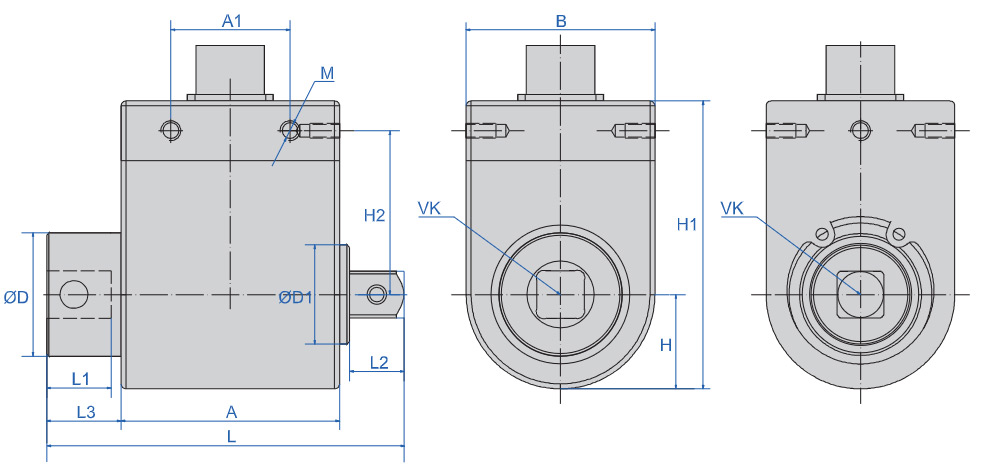

Dimension Measurement:
 | |
| VK | 3/8 inch |
| A | 44 mm |
| B | 38 mm |
| L | 72 mm |
| L1 | 13 mm |
| L2 | 11 mm |
| L3 | 15 mm |
| H | 19 mm |
| H1 | 58 mm |
| H2 | 33 mm |
| A1 | 24 mm |
| D | 25 mm |
| D1 | 20 mm |
| M | 5-M4 depth 8 |
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| SKU | HA.WR.TO.00388 |
|---|---|
| Product Type | Torque Sensors |
| Model No | IST-IR30 |
| Max. Torque | 30 Nm |
| RPM Range | <3000 rpm |
| Torque Signal | <2.0mV/V |
| Zero Output | ±0.5%F.S. |
| Accuracy | 0.1%F.S. |
| Hysteresis | 0.5%F.S. |
| Repeatability | 0.1%F.S. |
| Creep (30 minutes) | 0.05%F.S. |
| Temperature Sensitivity Drift | 0.05%F.S./10°C |
| Zero Temperature Drift | 0.05%F.S./10°C |
| Response Time | 1.0ms (50% response) |
| Response Frequency | 1kHz |
| Max. Torsion Angle | 2.6x10rad (0.149°) |
| Inertial Torque | 0.38 kg.cm |
| Intrinsic Frequency of Rotor Vibration | 19.4 KHz |
| Torque Constant | 3.85x10N.m/rad |
| Annual Stability | 0.3%/year |
| Load Resistance | >2k ohm |
| Power Supply | DC5 ~ 15V |
| Working Environment | -10 ~ 50°C (<85%RH) |
| Safety Overload | 150% |
| Extreme Overload | 200% |

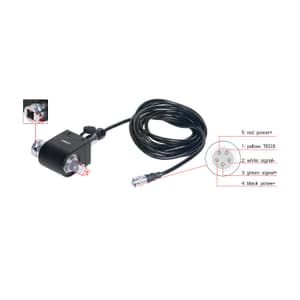

| Cable Specification | Ø5 mm x 3 m |
| Extreme Cable Pulling Force | 10 Kg |
| Material | Stainless Steel |
