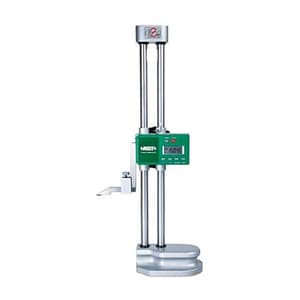

Insize 300 mm Digital Height Gauge, 1151-300A
Roll over the image to zoom in
Key Features
- Product Type: Height Gauge
- Range (mm): 0 - 300 mm
- Range (Inches): 0 - 12 inch
- Accuracy (mm): ±0.04 mm
- Length (mm): 475 mm
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹38,662 (Incl. of all taxes)
₹32,764 + ₹5,898 GST (18%)
MRP was MRP ₹46,147
Save 29%
3 Business Days
1
90318000
Download Product LeafletNot available
Download Insize CatalogueNot available
Download Insize CatalogueNot available
Highlights
- Resolution: 0.01mm/0.0005"
- Buttons: on/off, zero, mm/inch, ABS/INC, preset +, preset -, reset
- ABS/INC is for absolute and incremental measurement

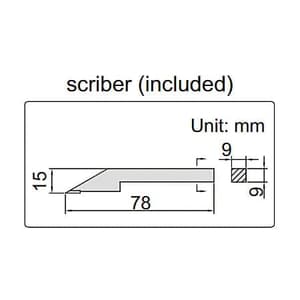

- Carbide tipped scriber
- Made of stainless steel (except the base)
- Battery CR2032, data output
- With driving wheel

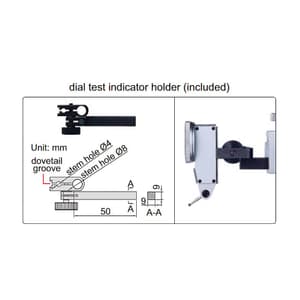

- With dial test indicator holder
- Supplied with dust cover
- Optional accessory: clamp for protractors (code 2372-CLAMP)
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
Specifications
| Range (mm) | 0 - 300 mm |
|---|---|
| Range (Inches) | 0 - 12 inch |
| Type of Product | Digimatic Height Gauge |
| Resolution | 0.01 mm / 0.0005 inch |
| Accuracy (mm) | ±0.04 mm |
| Material | Stainless Steel |
| Power supply | Battery CR2032 |
| Button Function | on/off, zero, mm/inch |
| Display | LCD |

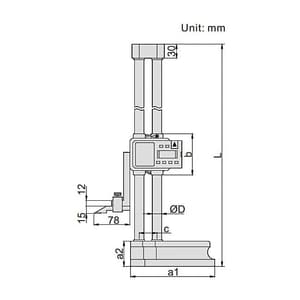

| Length (mm) | 475 mm |
| a1 | 135 mm |
| a2 | 43 mm |
| b | 84 mm |
| c | 33 mm |
| D | 15 mm |
