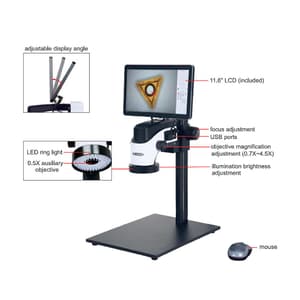

Insize 6X - 38X Large View Field Digital Measuring Microscope (Standard Type), 5307-ID200A
Roll over image to zoom zoom_in
- Weight: 7.6 Kg
- Product Type: Digital Microscope
- Pixel: 2M
- Focus distance: 130 mm
- Max workpiece height: 210mm
- Frame rate: 60fps
- receiptGST Invoice
- headphonesCustomer Service
- lockSecure Payments
- policyReturns & Warranty
- home_pinOrder Tracking
- paymentsBuy in Installments
₹191135.22 (Incl. of all taxes)
₹161979+ ₹29156.22 GST (18%)
MRP ₹234752
SAVE 31%
3 Business Days
1 Pcs
90112000
picture_as_pdfDownload Product Leafletkeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
Highlights
- Electronic magnification feedback lens: when the objective lens magnification is changed manually, the software automatically selects the corresponding pre-calibration data, and calibration is not needed
- Two methods of LED brightness adjustment, knob adjustment, and software adjustment
- Built-in software without a computer, operated by a mouse
- Take pictures, save to a USB flash disk
- Measuring results can be sent to Excel.
Magnification and Measuring Accuracy:
| Objective magnification | Magnification | Measuring Accuracy |
| 0.7X | 6X | ±15µm |
| 1X | 8X | ±15µm |
| 1.5X | 13X | ±9µm |
| 2X | 17X | ±9µm |
| 2.5X | 21X | ±9µm |
| 3X | 25X | ±9µm |
| 3.5X | 30X | ±8µm |
| 4X | 34X | ±8µm |
| 4.5X | 38X | ±7µm |
Standard Delivery:
| Digital Measuring Microscope | 1 Pc |
| 0.5X Auxiliary Objective | 1 Pc |
| Calibration plate | 1 Pc |
| Power adapter | 1 Pc |
| Mouse | 1 Pc |
| 16G USB flash disk | 1 Pc |
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
Specifications
| SKU | ME.DI.DI.00560 |
|---|---|
| Product Type | Digital Microscope |
| Model No | 5307-ID200A |
| Sensor | 1/2" CMOS |
| Pixel | 2M |
| Resolution | 1920x1080 Pixel |
| Magnification | 6 - 38X |
| Focus distance | 130 mm |
| View field | 6.4x3.6 - 41.8x23.4 mm |
| Max workpiece height | 210mm |
| Frame rate | 60fps |
| Output | USB/HDMI |
| Power supply | Power adapter |
| Dimensions (L x W x H) | 305 x 405 x 530 mm |
