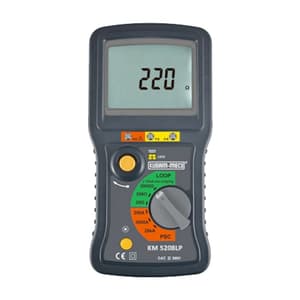

As Per the guidelines for implementation of Electrical Installation Standards in buildings, the earth fault loop impedance has to be low enough to allow adequate earth fault current flow to cause an over-current protective device in a faulty circuit to operate in a sufficiently short time. KM-5208 LP measures the earth fault loop impedance for the safe operation of the circuits.

Features:

• 3 ½ digit LCD (2000-count)
• Backlight function
• 15mA loop measurement which will not trip ELCBs
• Convenient and easier for users to measure the loop impedance directly without bypassing the wires.
• Wiring check function
• Over temperature protection
• Safety standard: EN 61010-1 CAT III 300V EN 61326-1
• Over-voltage protection
• Built-in voltmeter
• Built-in earth tester
• Built-in loop/psc tester
• No Batteries used
• 15mA Loop measurement: Loop impedance 200Ω range measurement is carried out with a low test current (15mA). The Current will not cause tripping out for ELCBs.

Technical Data:

Loop Impedance

Range	Measuring Range	Nominal Test Current At 0Ω External Loop	Accuracy
20 Ω	0.00 ~ 19.99 Ω	23A / 40ms	(2%rdg + 4dgt)
200 Ω	0.0 ~ 199.9 Ω	2.3A / 40ms
2000 Ω	0~1999 Ω	15mA / 400ms



Prospective Short-Circuit Current

Range	Measuring Range	Nominal Test Current At 0Ω External Loop	Accuracy
20KA	0.00 ~ 4.00 KA	23A / 40ms	Consider the accuracy of loop impedance
2000A	0 ~ 1999 A	23A / 40ms
200A	0.0 ~ 199.9 A	2.3A / 40ms



Voltage Display

Measuring Range	150 ~ 260 V
Accuracy	(2%rdg + 4dgt)
Remark	At 0 Ω External loop



Wiring Check

P - E	LEDs illuminate when the wiring polarity of the circuit under test is correct
P - N
N - E	LED is light when P and N are reversed or the Earth is not connected
