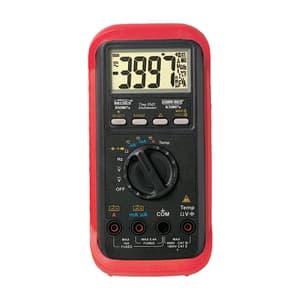

Kusam-Meco 3-3/4 Digit / 4000 Counts Auto Ranging TRMS Digital Multimeter, KM807s
Roll over image to zoom zoom_in
- Weight: 396 Grams
- Product Type: Multimeter
- Digits: 3-3/4
- Update Rate: 3 per second nominal
- receiptGST Invoice
- headphonesCustomer Service
- lockSecure Payments
- policyReturns & Warranty
- home_pinOrder Tracking
- paymentsBuy in Installments
₹10454.8 (Incl. of all taxes)
₹8860+ ₹1594.8 GST (18%)
MRP ₹11075
SAVE 20%
3 Business Days
1 Pcs
90303100
picture_as_pdfDownload Product Leafletkeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
Highlights
The meter protection rating, against the users, is double insulation per IEC/UL/EN61010-1 Ed.3.0, IEC/EN61010-2-030 Ed.1.0, IEC/EN61010-2-033 Ed. 1.0, IEC/UL/EN61010-031 Ed. 1.1 & CAN/CSA C22.2 No. 61010-1-12 Ed. 3.0 to Category II 1000V, CAT III 600V & CAT IV 300V AC & DC.
Features & Benefits:
- Basic Accuracy: 0.5% DCV
- 25ms Max Hold
- Fully Autoranging
- Data Hold
- Relative Zero Mode
- Jack Beep audible warning against improper plug-in
- Diode Test
- Fast audible Continuity Test
- Fire retarded case
- Splashproof construction.
- Auto power off
Safety:
- Transient Protection: 6kV (1.2/50ms surge)
- Terminals (to Com) Measurement Category: V / A / mAµA: CAT II 1000V, CAT III 600V & CAT IV 300V AC & DC
- Overload Protection: µA & mA: 0.4A/1000V DC/AC rms, IR 30kA @ 1000V DC/AC rms, A: 11A/1000V DC/AC rms, IR 20kA @ 1000V DC/AC rms, V: 1100V DC/ACrms, Hz, Ohm & Other : 1000V DC/AC rms,
- EMC: Meets EN61326-1:2013 In an RF field of 3V/m : Capacitance function is not specified
- AC 4.000V range : Total Accuracy = Specified Accuracy + 700 dgts
- AC 400.0µA range : Total Accuracy = Specified Accuracy + 300 dgts
- Other function ranges : Total Accuracy = Specified Accuracy + 40 dgts
- Performance above 3V/m is not specified
Package Content:
- Test lead (pair)
- Holster
- Battery installed
- User Manual & Carrying case
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| SKU | ME.EL.MU.00144 |
|---|---|
| Product Type | Multimeter |
| Model No | KM807s |
| Digits | 3-3/4 |
| Update Rate | 3 per second nominal |
| Polarity | Automatic |
| Operating Temperature | 0°C to 40°C |
| Altitude | Operating below 2000 m |
| Pollution degree | 2 |
| Low Battery | Below Approx 2.4 V |
| Power Supply | Standard 1.5V AAA Battery x 2 |
| Power Consumption | 3.2mA Typical |
| Sleep Mode Timing | Idle For 30 Minutes |
| Sleep Mode Consumption | 360µA typical |
| Counts | 4000 Counts (Backlight Large Easy To Read Lcd Display) |
| Storage Temperature | -20°C to 60°C, < 80% R.H. (With Battery Removed) |
| Temperature Coefficient | nominal 0.15 x (specified accuracy) / °C @ (0 °C--18 °C or 28 °C--40 °C), or otherwise specified |
| Relative Humidity | Maximum 80% R. H. For temperature upto 31°C decreasing linearly to 50% Relative Humidity at 40°C |
| Dimension (LxWxH) | 198 x 97 x 55 mm (with Holster) / 186 x 87 x 35.5 mm (without holster) |
| Weight | 296 gms (Without Holster) / 396 gm (with holster) |
