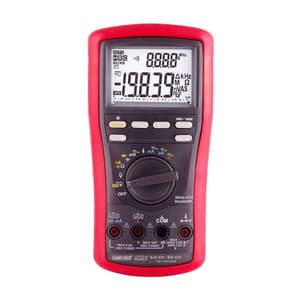

Kusam-Meco 3-5/6 & 4-1/2 Digit / 20000 Counts Dual Display TRMS Digital Multimeter, KM 839
Roll over image to zoom zoom_in
- Weight: 635 Grams
- Product Type: Multimeter
- Operating Temperature: 10° C to 50° C
- Pollution degree: 2
- receiptGST Invoice
- headphonesCustomer Service
- lockSecure Payments
- policyReturns & Warranty
- home_pinOrder Tracking
- paymentsBuy in Installments
₹22184 (Incl. of all taxes)
₹18800+ ₹3384 GST (18%)
MRP ₹23500
SAVE 20%
3 Business Days
1 Pcs
90303100
picture_as_pdfDownload Product Leafletkeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
Highlights
- Beep-Jack Audible & Visible Input Warning
- BeepLit Continuity Tester
- Relative Zero Mode
- Crest (Peak Hold) MAX/MIN Readings
- VFD Function
- 61 Segment Analog Bar-graph
- Display Hold
- Record MAX / MIN
Features & Benefits:
- DC Voltage Basic Accuracy 0.09%
- Dual digital display AC + Hz readings
- Selectable 6,000 & 20,000 counts resolution.
- Nominal 5/sec Fast Measurements, Fully Auto-Ranging
- Paper-White Back-lighted LCD Display.
- High update record Max/Min readings
- Rugged fire retarded casing with battery & fuse access door.
- Replaceable protective holster with probe holders & tilt-stand.
- Diode & Continuity Test
- Auto Power Off
Safety:
- Double insulation per IEC/UL/EN61010-1 Ed., 3.0, IEC/UL/EN61010-2-030 Ed. 1.0, IEC/UL/ EN61010-2-033 Ed. 1.0, IEC/UL/EN61010-031 Ed. 1.1 & the corresponding CAN/CSA-C22.2 regulations to measurement CAT III 1000V AC & DC & Category IV 600V AC & DC.
- Transient Protection: 8 kV (1.2/50µs surge)
- Overload Protection: µA & mA - : 0.4A/1kV DC/AC rms, IR 30kA, F Fuse or better / A: 11A/1kV DC/AC rms, IR 20kA, F Fuse or better / V: 1100V DC/AC rms / mV, ohms & Others : 1000V DC/AC rms
- EMC: Meets EN61326-1:2013 In an RF field of 3V/m : Total Accuracy = Specified Accuracy + 150 dgts Performance above 3V/m is not specified
Package Content:
- Test lead pair
- Holster
- Battery installed
- User Manual
- BKP60 banana plug type-K Thermocouple
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| SKU | ME.EL.MU.00140 |
|---|---|
| Product Type | Multimeter |
| Model No | KM839 |
| Operating Temperature | 10° C to 50° C |
| Pollution degree | 2 |
| Low Battery | Approx 4.6V |
| Sensing | AC True RMS |
| Altitude | Operating below 2000 m |
| Power Consumption | 8mA typical for VFD ACV+Hz, 6.5 mA typical for other functions |
| APO Timing | Idle for 20 minutes |
| Power Supply | 4 Alkaline AA batteries |
| IP Rating | IP40 |
| Display | 3-5/6 digits 6000 counts & 4 Digit 20,000 counts Max Large Backlight LCD Dual Display |
| Update Rate | 3-5/6 Digits : 5 per second nominal / 4-1/2 Digits : 5 per second nominal / 61 Segments Bar-graph : 40 per second max |
| Relative Humidity | Max. 90% R.H. for Temperature up to 28° C decreasing linearly to 50% R.H. at 50° C |
| Storage Temperature | -20°C to 60°C, <80% R.H. (with battery removed) |
| Temperature Coefficient | Nominal 0.1 x ( specified accuracy)/° C @ (-10° C ~ 18° C or 28° C ~ 50° C), or otherwise specified |
| Dimension (LxWxH) | 208 x 103 x 64.5 mm with holster |
