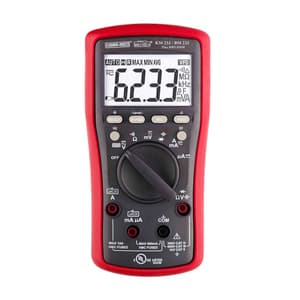

Kusam-Meco 3-5/6 Digits / 6000 Counts Digital Multimeter With VFD, EF-Detection, KM 233
Roll over image to zoom zoom_in
- Weight: 334 Grams
- Product Type: Multimeter
- Operating Temperature: -10°C to 45°C
- Update Rate: 5 Per Second Nominal
- receiptGST Invoice
- headphonesCustomer Service
- lockSecure Payments
- policyReturns & Warranty
- home_pinOrder Tracking
- paymentsBuy in Installments
₹9133.2 (Incl. of all taxes)
₹7740+ ₹1393.2 GST (18%)
MRP ₹9675
SAVE 20%
Out of Stock
3 Business Days
1 Pcs
90303100
picture_as_pdfDownload Product Leafletkeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
Highlights
Double insulation per IEC/UL/EN61010-1 Ed. 3.0, IEC/UL/EN61010-2-030 Ed. 1.0, IEC/UL/EN61010-2-033 Ed. 1.0, IEC/UL/EN61010-031 Ed. 1.1 & the corresponding CAN/CSA-C22.2 regulations to measurement CAT II 1000V, CAT III 600V and CAT IV 300V AC & DC.
Features & Benefits:
- VFD V & Hz Function
- BeepLit Continuity, Features Audible Beep & Visible Backlight Effects
- EF-Detection (NCV)
- Beep-Jack Input warning on mAmA/A terminals plug in
- Paper White Backlight Display
- Auto-ranging Relative Zero Mode
- Auto Power Off
- Low Battery Indication
- Auto-ranging MAX/MIN/AVG record
- Display Hold
- Diode & Continuity Test
- Rugged Fire retarded casing
Safety:
- E. M. C: Meets EN61326-1:2006
- In an RF field of 3V/m: Ohm function - Total Accuracy = Specified Accuracy + 15 digits
- Other function ranges: Total Accuracy = Specified Accuracy
- Performance above 3V/m is not specified.
- Transient Protection: 6.0kV lightning surge (1.2/50µs)
- Terminals (to COM) Measurement Category V/ mAµA / A: CAT II 1000 Volts and CAT III 600V and CAT IV 300 Volts AC & DC
- Overload Protection (µA & mA): : 0.4A / 1000V DC/AC rms, IR 30kA, F fuse
- Overload Protection (A): 11A / 1000V DC/AC rms, IR 20kA, F fuse
- Overload Protection (V & Auto V): 1100V DC/ACrms
- Overload Protection (mV, Ω & Others): 1000V DC/AC rms
Package Content:
- Test leads pair
- Carrying Case
- Batteries installed
- User's Manual
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| SKU | ME.EL.MU.00149 |
|---|---|
| Product Type | Multimeter |
| Model No | KM233 |
| Operating Temperature | -10°C to 45°C |
| Update Rate | 5 Per Second Nominal |
| Altitude | Operating Below 2000 m |
| Pollution Degree | 2 |
| Low battery | Below approx. 2.5 V |
| Power Consumption | Typical 3.2 µ A |
| APO Consumption | Typical 10 µ A |
| APO Timing | Idle for 30 minutes |
| Power Supply | 1.5 V AAA Battery x 2 |
| Sensing | TRUE RMS Sensing |
| Display | 3-5/6 Digits 6000 Counts LCD Display |
| Storage Temperature | -20°C to 60°C, <80% R.H. (With Battery Removed From Meter) |
| Relative Humidity | Maximum Relative Humidity 80% For Temperature Upto 31°c Decreasing Linearly To 50% Relative Humidity At 45°c |
| Temperature Coefficient | Nominal 0.15 x (Specified Accuracy) /°C @ (0°C~18°C or 28°C~45°C), or Otherwise Specified |
| Dimension (LxWxH) | 161 X 80 X 50 mm |
