• (Battery & Charger are not included)
• Applicable to large diameter rebars: The tool tip portion of tying mechanism is redesigned from DTR180 to enable to tie large diameter rebars that the current model cannot
• Compatible with thick rebars (D22 x D25)
• Extension handle available as option allows you to operate in a stand-up position, reducing lower back strain
• 6-stage adjustable tying strength: Tying strength can be adjusted to suit the combination of rebars simply by operating the panel located above the battery

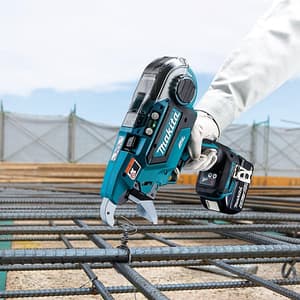

• Tying rebars automatically
• Tying rebars can be done automatically in a various range of applications such as building concrete foundations

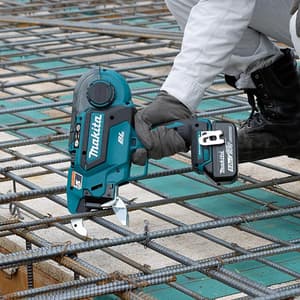

• Operable by only one hand, allowing the other hand to be free to adjust the position of rebar
• Continuous actuation mode for efficient continuous tying
• Users can tie rebars by only pulling contact arm against rebars if they continuously hold the trigger
• Users can also tie rebars by pulling the trigger as single actuation mode
• According to the condition of tying material, tying strength can be adjusted in 6 stages
• Extreme Protection Technology (XPT) is engineered for improved dust and water resistance for operation in harsh conditions
• BL motor with high power to weight and size ratio
• BL motor generates less heat buildup and is ideal for prolonged use in high production applications
• BL motor eliminates carbon brushes, enabling the BL motor to run cooler and more efficiently for longer life

What's Included in this Package:

Cordless Rebar Tying Tool

Nylon brush

Hex wrench

Hook

+ Screw

Applicable Tie Wire:

• Annealed wire: 21 Ga (0.8 mm)
• Galvanized wire: 21 Ga (0.8 mm)
• Poly coated wire: 20 Ga (0.9 mm)

Dimensions (L x W x H):

• w/o Battery: 317 x 93 x 269 mm (12-1/2 x 3-5/8 x 10-5/8″)
• w/ BL1815N / BL1820B: 317 x 93 x 301 mm (12-1/2 x 3-5/8 x 11-7/8″)
• w/ BL1830B / BL1840B / BL1850B / BL1860B: 317 x 93 x 318 mm (12-1/2 x 3-5/8 x 12-1/2″)



	Lithium-ion Extreme Technology
	Brushless Motor
	Extreme Protection Technology
	Torque Setting 6
	Carrying-Case
