Mastech 2000μF / 200M Ohms Digital LCR Meter, MS5308

Shop all Mastech

SKU: ME.EL.LC.00032

Model: MS5308

Roll over the image to zoom in

Visit Mastech Store

Key Features

  • Product Type: LCR Meter
  • Resistance: 2Ω / 200MΩ
  • Capacitance: 2000pF / 2000μF
  • Inductance: 2000μH ~ 2000H
  • Max. Display Count: 20,000 Counts (Main Display) / 2,000 Counts (Secondary Display)
See all product information

ToolBuy Benefits

₹18,771 (Incl. of all taxes)

₹15,908 + ₹2,863 GST (18%)

MRP was MRP ₹19,400

Save 18%

5 Business Days

1

90303100

Download Product LeafletNot available
Download Mastech CatalogueNot available

Product Information

Highlights

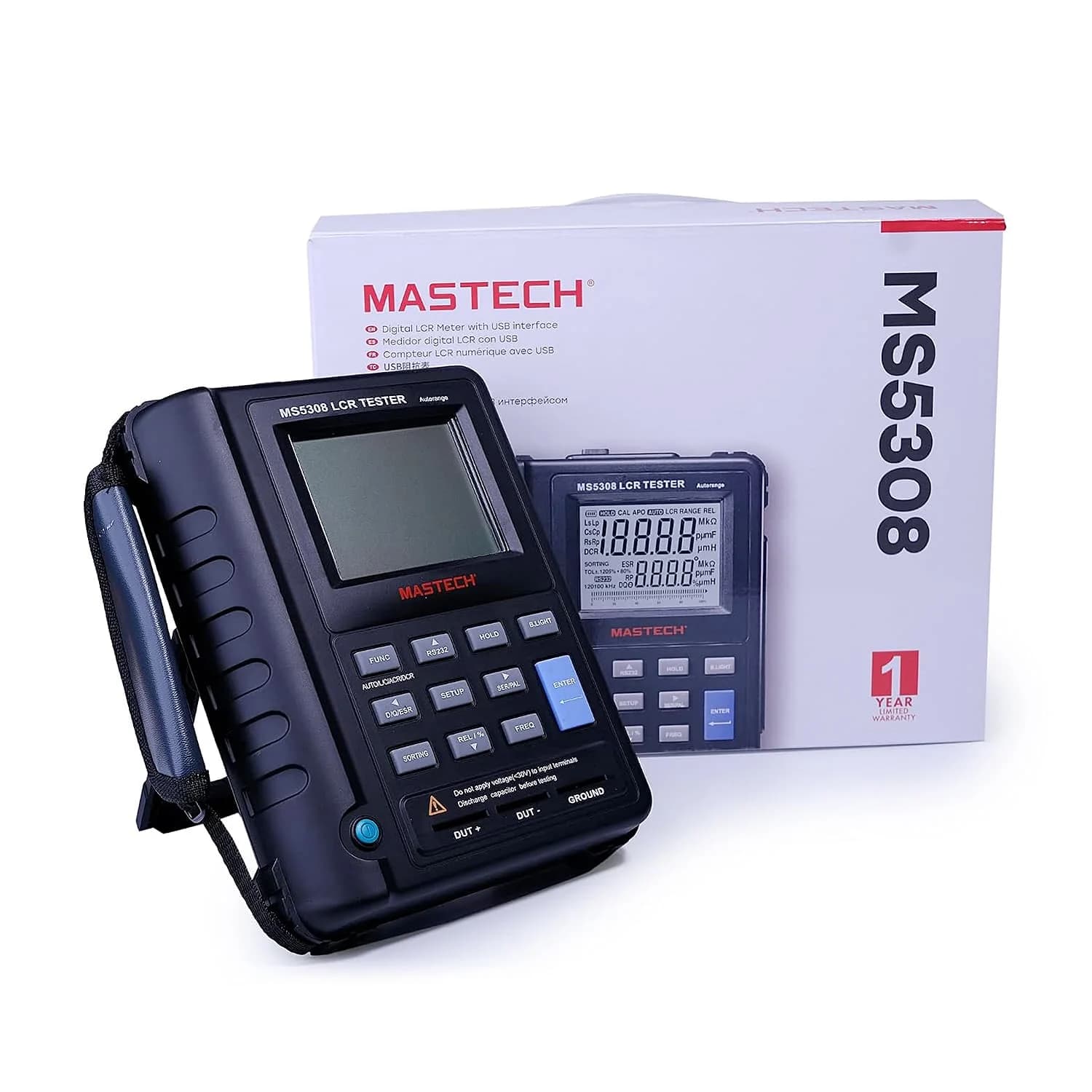

The MASTECH MS5308 Digital LCR Meter offers reliable measurements for inductance, capacitance, and resistance. Designed for professionals and electronics enthusiasts, this versatile tool ensures accurate testing across a wide range of components.


Features:

  • Multifunctional Measurement: Inductance, capacitance, resistance.
  • Auto and Manual Ranging: Provides flexibility in measurement settings.
  • Max Display: 20000 counts for the main display, 2000 counts for the secondary display.
  • Data Hold: Freeze readings for easy analysis.
  • Relative Measurement: Eliminate low resistance or impedance on the test leads during measurements.
  • DCR mode: Resistance DC measurement mode.
  • Backlight: Illuminated display for low-light conditions.
  • RS232 Interface: For PC connectivity.
  • Versatility: Supports a wide range of components for thorough testing.
  • Portability: Compact and lightweight design, easy to carry and use.
  • User-Friendly: Intuitive controls with dual display for clear readings.
  • Connectivity: RS232 interface for data transfer to a computer.

Functions:

  • Auto & Manual Ranging
  • Auto power off.
  • LCR smart check and measurement.
  • DCR mode.
  • Data Hold
  • Series / Parallel measurement mode.
  • Display Backlight.
  • Low Battery Display.
  • Data hold.

Applications:

  • Electrical troubleshooting
  • Educational purposes
  • Laboratory testing

Why Choose MASTECH MS5308?

The MASTECH MS5308 Digital LCR Meter stands out for its combination of accuracy and ease of use, making it an essential tool for anyone involved in electronics. With its comprehensive measurement capabilities and robust design, it ensures reliable performance across a wide range of applications.


Resistance Measurement:

  Frequency   Range   Resolution  Accuracy
100Hz/120Hz  200.00Ω  0.01Ω1.0%+5d
  2.0000kΩ  0.1Ω0.3%+5d
  20.000kΩ  1Ω 0.3%+5d
  200.00kΩ  0.01kΩ0.5%+5d
  2.0000MΩ  0.1kΩ1.0%+5d
  20.000MΩ  1kΩ1.0%+5d
 200.0MΩ   0.1MΩ5.0%+5d
 1kHz   20.000Ω 0.001Ω   1.0%+5d
 200.00Ω   0.01Ω   0.3%+5d
 2.0000kΩ   0.1Ω   0.3%+5d
 20.000kΩ   1Ω   0.3%+5d
 200.00kΩ   0.01kΩ   0.5%+5d
 2.0000MΩ   0.1kΩ   1.0%+5d
 20.000MΩ   1kΩ   2.0%+5d
 200.0MΩ   0.1MΩ   5.0%+5d
 10kHz   20.000Ω   0.001Ω  1.0%+5d
 200.00Ω   0.01Ω   0.5%+5d
 2.0000kΩ   0.1Ω  0.3%+5d
 20.000kΩ   1Ω  0.5%+5d
 200.00kΩ   0.01kΩ  1.0%+5d
 100kHz   20.000Ω   0.001Ω   1.0%+5d
 200.00Ω   0.01Ω   1.0%+5d
 2.0000kΩ   0.1Ω   1.0%+5d
 20.000kΩ   1Ω   2.0%+5d


Capacitance Measurement:

  Frequency Range Resolution Accuracy
  100Hz/120Hz20.000nF1pF1.0%+5d
200.00nF0.01nF0.5%+5d
2000.0nF0.1nF0.5%+5d
20.000μF1nF0.5%+5d
200.00μF0.01μF1.0%+5d
2000.0μF0.1μF2.0%+5d
20.00mF0.1mF2.0%+5d
 1kHz  2000.0pF  0.1pF1.0%+5d
20.000nF  1pF  1.0%+5d
200.00nF  0.01nF  0.5%+5d
2000.0nF  0.1nF  0.5%+5d
20.000μF  1nF  0.5%+5d
200.00μF  0.01μF  1.0%+5d
2000.0μF  0.1μF  1.0%+5d
10kHz  200.00pF  0.01pF 1.0%+5d
2000.0pF  0.1pF 1.0%+5d
20.000nF    1pF    1.0%+5d
200.00nF    0.01nF    1.5%+5d
2000.0nF    0.1nF   2.0%+5d
 100kHz   200.00pF   0.01pF   2.0%+5d
 2000.0pF   0.1pF    1.0%+5d
 20.000nF   1pF   2.0%+5d
 200.00nF   0.01nF  5.0%+5d

Inductance Measurement:

 Frequency Range Resolution Accuracy
  100Hz/120Hz  20.000mH 1µH1.0%+5d
 200.00mH 0.01mH0.5%+5d
 2000.0mH 0.1mH0.5%+5d
 20.000H 1mH0.5%+5d
 200.00H 0.01H1.0%+5d
 2000.0H 0.1H1.0%+5d
 20.000KH 1H2.0%+5d
1kHz2000.0µH0.1µH 1.0%+5d
20.000mH 1µH  0.5%+5d
200.00mH0.01mH 0.5%+5d
2000.0mH0.1mH 1.0%+5d
20.000H1mH 1.0%+5d
200.00H0.01H2.0%+5d
2000.0H0.1H 5.0%+5d
10kHz200.00µH0.01µH 1.0%+5d
2000.0µH 0.1µH0.5%+5d
20.000mH1µH 0.5%+5d
200.00mH0.01mH1.5%+5d
2000.0mH0.1mH2.0%+5d
20.000H0.001H5.0%+5d
100kHz20.000µH0.001µH1.0%+5d
200.00µH0.01µH2.0%+5d
2000.0µH0.1µH 2.0%+5d
20.000mH1µH 2.0%+5d
200.00mH0.01mH 5.0%+5d


Resistance
Data Hold
Display Backlight

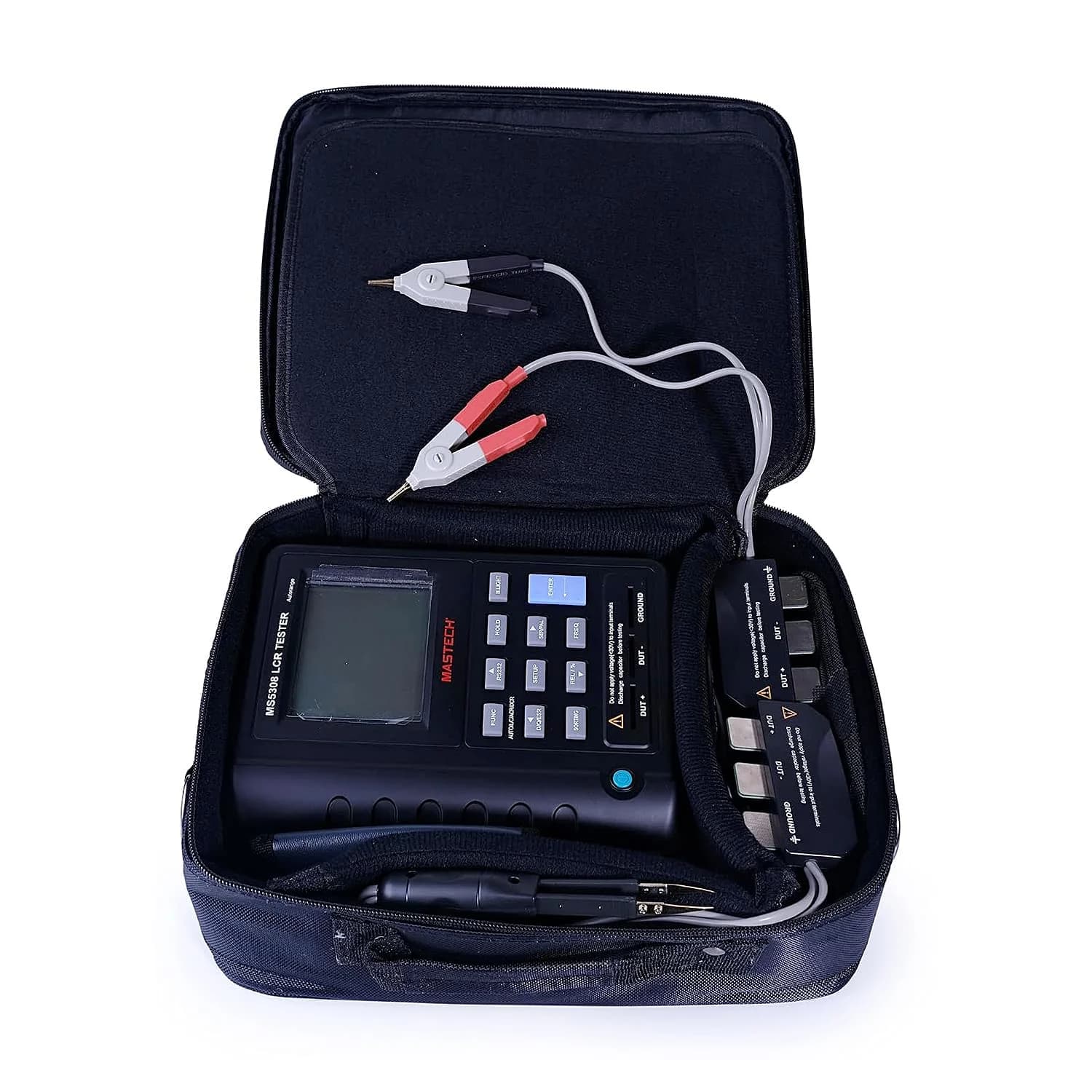

Package Content:

  • Digital LCR Meter
  • Test Clips

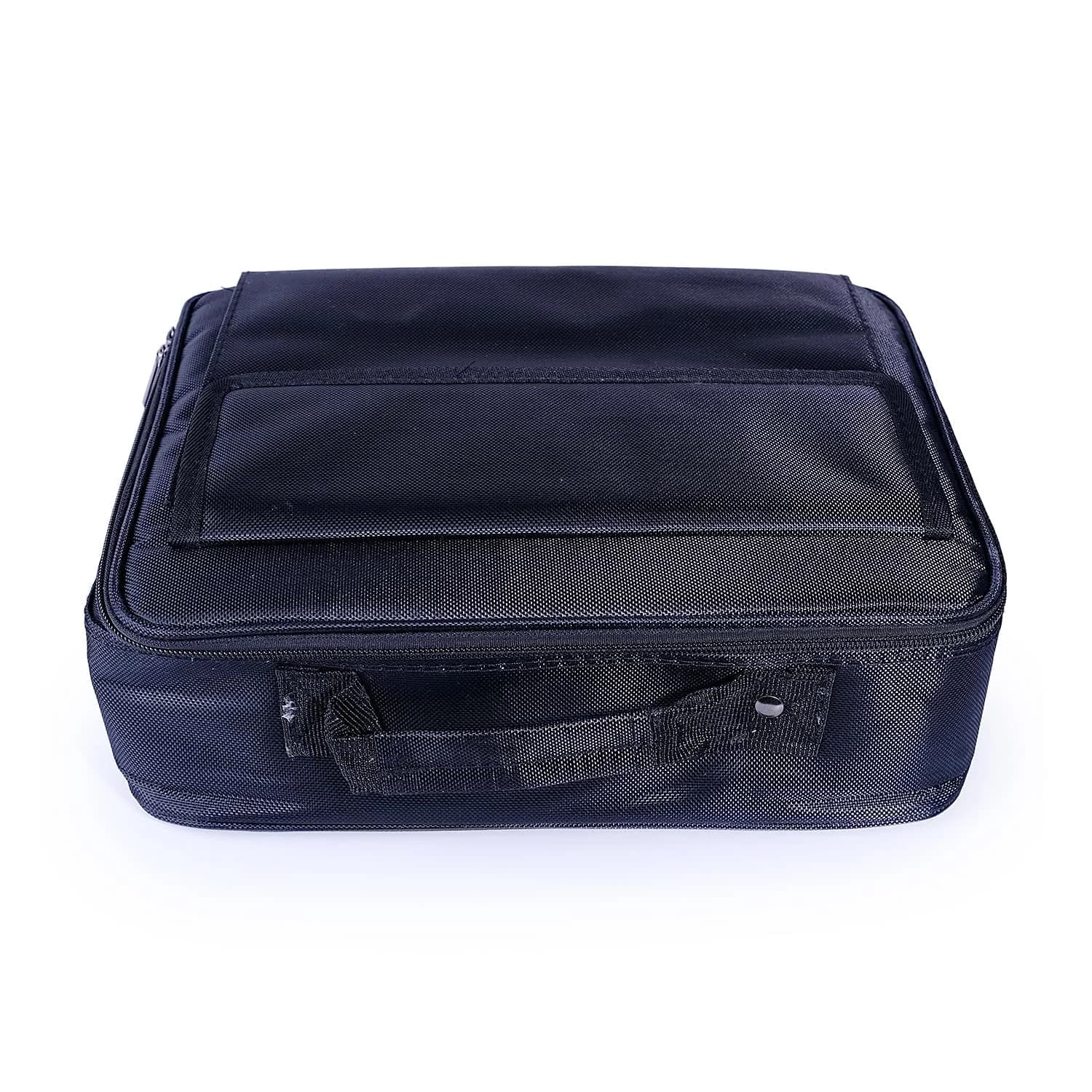

  • Carry bag
  • 8x 1.5 AA Batteries
  • User's manual


Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.

Specifications

Technical specifications for Mastech 2000μF / 200M Ohms Digital LCR Meter, MS5308
Resistance2Ω / 200MΩ
Capacitance2000pF / 2000μF
Inductance2000μH ~ 2000H
Max. Display Count20,000 Counts (Main Display) / 2,000 Counts (Secondary Display)
Elevation< 2000m
Relative Humidity< 80%RH
Operating Temperature0 ~ 40°C
InterfaceRS232
Dimensions224 x 172 x 58 mm (8.8 x 6.8 x 2.3 inch)
Power Supply8x 1.5 AA Batteries
