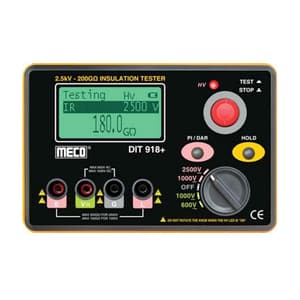

MECO DIT 918+ is a 2.5KV Digital Insulation Tester with Large LCD Display. It measures Insulation Resistance upto 200G AC Voltage upto Ω 600V and DC Voltage up to 1000V. It has Special functions to Measure P.I. (Polarization Index) and D.A.R. (Dielectric Absorption Ratio). It is ideally suited for testing of Insulation Resistance and Voltage of Transformers, Switches, High Voltage Systems, Cables, Appliances, Motors etc.

Features:

• Large LCD Display (128 x 64 Dot-Matrix)
• High Accuracy for Insulation Measurement and for AC/DC Voltage Measurement
• Suitable for P.I. and D.A.R. Measurement
• Range Selection & Single Person Push Button Operation
• Data Holding Function
• Measurement of Voltage upto 600V AC and 1000V DC
• Auto Range (Insulation Test)
• Red LED Indicator & Red Backlight for HV (High Voltage)
• Battery Operated
• As per IS10656-1983
• As per Safety Standard IEC/EN 61010-1 & 61010-31
• Over Voltage CAT II, 600V
• As per EMC Standard IEC 61326 Class B
• High Voltage LED Indication
• Terminal Voltage (E&L) Indication on LCD Display
• Low Battery Indication
• Low Resistance Warning

Technical Data:

	Test Voltage	Range	Resolution	Test Current	Accuracy
Insulation Resistance	1000V / 2500V DC	0.1MΩ to 200MΩ	0.01MΩ to 0.1GΩ	2mA Max.	±(3% + 5)
		200MΩ to 10GΩ			±(5% + 5)
		10GΩ to 200GΩ			±(10% + 5)
AC Voltage Measurement	-	0 ~ 600VAC (40 ~ 60Hz)	1V	-	±(2% + 5)
DC Voltage Measurement	-	0 ~ 1000VDC		-

Package Content:

• Insulation Tester
• Test and Calibration Certificate
• 1 Pair x Insulation Resistance Measurement Test Leads
• Pair of Alligator Clips
• 6x 1.5V AA Batteries
• 1x Instruction Manual
• 1x Carrying Bag

Please Note that Products may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
