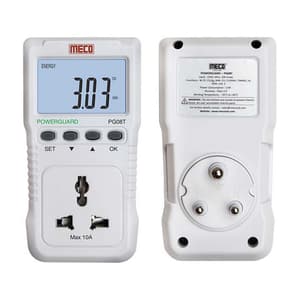

Power Guard is a simple-to-use and easy-to-handle product that has many applications because of its portability and lightweight. Teaching, Demonstration & Testing of Electrical Energy Consumption of Household / Office Appliances like Refrigerator, Washing Machine, Microwave Oven, LED Lights, etc. It can be used in Houses, Offices, Shops, Schools, Laboratories etc.

Features:

• Three Pin Socket & Plug Suitable for Indian Socket

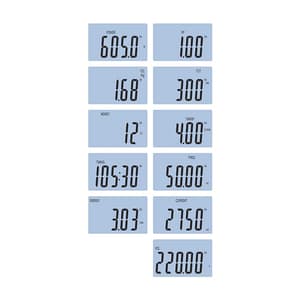

• Large LCD Display with Backlight
• Memory Retention (KWh, MIN, CU, CU/KWh, CO2)
• Counts CO2 generated by Electrical Equipment (0.555kg CO2 is generated by using 1 KWh Energy)
• Timer & Relay Function for Power ON / OFF the Load

Measures:

• Power (W)
• Power Factor (PF)
• Carbon Emission (CO2 in Kg)
• Total Used Time (MIN)
• Money (CU)
• Tariff (CU/KWh)
• Timer (DHH:MM)
• Frequency (Hz)
• Energy (KWh)
• TRMS Current (mA)
• TRMS Voltage (V)

Technical Data:

Functions (Annunciator)	Input Range	Display Format	Accuracy (% of FS) (FS = 2200W)
Power (W)	0.2 ~ 1W	XXXX.X	< 10
	1 ~ 10W		5
	10 ~ 2200W		1
Power Factor (PF)	For 0.2 ~ 5W	X.XX	NA
	For 5 ~ 10W		NA
	For 10 ~ 2000W		< 0.05 PF
CO2 (Kg)	CO2 (Kg)	XXX.XX	NA
Total Usage Time (MIN)	Minutes	XXXXX
Money (CU)	CU	XXXXX
Tariff (CU/KWh)	CU/KWh	XX.XX
Timer	000:01 ~ 923:59 (DHH:MM)	XXX:XX
Frequency (Hz)	45 - 55Hz	XX.XX	±0.05Hz
Energy (KWh)	For 5 ~ 2200W	XXX.XX	1
TRMS Current (mA)	0.02 ~ 100mA	XXXXX	NA
	100mA ~ 10A		3
TRMS Voltage (V)	195 ~ 265V	XXX.XX	0.5


Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
