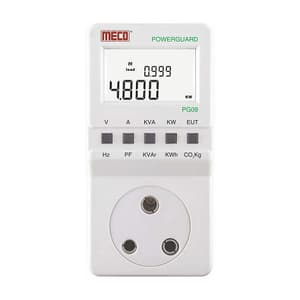

Power Guard is a simple-to-use and easy-to-handle product that can be widely used because of its portability and lightweight. Teaching, Demonstration & Testing of Electrical Energy Consumption of Household & Office Appliances. It can be used in Houses, Offices, Shops, Schools, Laboratories etc

Features:

• Three Pin Socket and Plug Suitable for Indian Socket

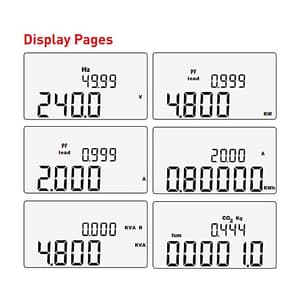

• Large Dual Row LCD Display with Backlight and Annunciators
• Memory Retention (KWh, EUT)
• Simple, Easy and Accurate
• Continuous Measurements
• Counts CO2 generated by Electrical Equipment (0.555kg CO2 is generated by using 1 KWh Energy)

Measures:

• TRMS Voltage (V)
• Frequency (Hz)
• TRMS Current (A)
• Power Factor (PF)
• Apparent Power (KVA)
• Reactive Power (KVAr)
• Active Power (KW)
• Energy Consumption (KWh)
• Energy Usage Time (EUT)
• Carbon Emission (CO2 in kg)

Technical Data:

Function	PG09 - 1A	Accuracy
RMS Voltage (V)	240V AC (Nominal) (195V ~ 265Vrms)	± 0.5% of FS
RMS Current (A)	(0.010 ~ 1.200) Arms	± 0.5% of FS
Active Power 240VAC (KW)	(2.400 ~ 288.0) W	±1.0% of FS
Apparent Power 240VAC (KVA)	(2.400 ~ 288.0) VA	±1.0% of FS
Reactive Power 240VAC (KVAr)	(2.400 ~ 288.0) VAr	±1.0% of FS
Power Factor (PF)	(021.6 ~ 048.0) W	> 0.03 PF
	(048.0 ~ 288.0) W	< 0.03 PF
Line Frequency (Hz)	45.00 ~ 55.00 Hz	± 0.2 Hz
Active Energy (KWh)	000000 ~ 999999 KWh	Class 1
Energy Usage Time (EUT)	Hours / Minutes	NA
Carbon Emission (CO2 in kg)	CO2 (Kg)	NA
