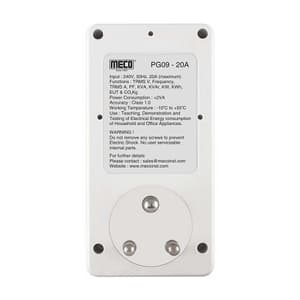

Power Guard is a simple-to-use and easy-to-handle product that can be widely used because of its portability and lightweight. Teaching, Demonstration & Testing of Electrical Energy Consumption of Household & Office Appliances. It can be used in Houses, Offices, Shops, Schools, Laboratories etc

Features:

• Three Pin Socket and Plug Suitable for Indian Socket
• Large Dual Row LCD Display with Backlight and Annunciators
• Memory Retention (KWh, EUT)
• Simple, Easy and Accurate
• Continuous Measurements
• Counts CO2 generated by Electrical Equipment (0.555kg CO2 is generated by using 1 KWh Energy)

Measures:

• TRMS Voltage (V)
• Frequency (Hz)
• TRMS Current (A)
• Power Factor (PF)
• Apparent Power (KVA)
• Reactive Power (KVAr)
• Active Power (KW)
• Energy Consumption (KWh)
• Energy Usage Time (EUT)
• Carbon Emission (CO2 in kg)

Technical Data:

Function	PG09 - 1A	Accuracy
RMS Voltage (V)	240V AC (Nominal) (195V ~ 265Vrms)	± 0.5% of FS
RMS Current (A)	(0.110 ~ 20.00) Arms	± 0.5% of FS
Active Power 240VAC (KW)	(0.026 ~ 4.800) KW	±1.0% of FS
Apparent Power 240VAC (KVA)	(0.026 ~ 4.800) KVA	±1.0% of FS
Reactive Power 240VAC (KVAr)	(0.026 ~ 4.800) KVAr	±1.0% of FS
Power Factor (PF)	(0.026 ~ 0.120) KW	> 0.03 PF
	(0.120 ~ 4.800) KW	< 0.03 PF
Line Frequency (Hz)	45.00 ~ 55.00 Hz	± 0.2 Hz
Active Energy (KWh)	000000 ~ 999999 KWh	Class 1
Energy Usage Time (EUT)	Hours / Minutes	NA
Carbon Emission (CO2 in kg)	CO2 (Kg)	NA


Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
