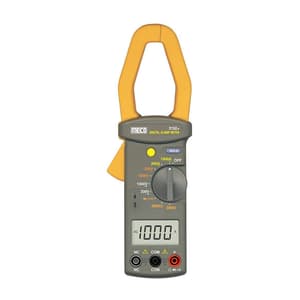

Digital multimeter: 3-1/2 Digit / 2000 count 1000A  AC/DC Digital Clampmeter with Data Hold,  Audible Continuity, Diode Test and APO functions

Features & Benefits:

• Display 3-1/2 digit liquid crystal display (LCD) with a maximum reading of 2000
• Polarity  Automatic, positive implied, negative polarity indication.
• Overrange (OL) or (-OL) is displayed.
• Zero  Automatic.
• Maximum Jaw n Can measure round cables upto 43mm
• Opening dia & Flats (Bus Bar) 65mm x 16mm
• Low battery indication “ ” is displayed when the battery voltage drops below the operating level.
• Measurement rate 3 times per second, nominal.
• Operating Environment  0°C to 50°C at < 70% relative humidity.
• Storage Temperature -20°C to 60°C, 0 to 80% R.H. with battery removed from meter.
• Power Two 1.5V ‘AAA’ Size Battery
• Battery life  200 hours typical
• Dimensions 247mm (H) X 76mm (W) X 39mm (D)

Accessories

• One pair of test leads,
• Instruction manual,
• 1.5V batterys (installed),
• Carring Case,

Specifications:

DC Voltage:  : 4V / 40V / 400V / 1000V Accuracy: : ± (0.5% rdg + 4 dgt) on 4V ± (0.7% rdg + 4 dgt) on 40V & 400V ± (1% of rdg + 4 dgt) on 1000V Resolution : 1mV to 1V Input Impedance : 10MV on all ranges except, 11MV on 4V Overload Protection: 1000A AC Max for 1 minute

AC Voltage:4V / 40V / 400V / 750V Accuracy: ±(1.2% rdg + 3 dgt) on allexcept  ±(1.2% rdg + 8 dgt) on 600V Overload Protection: 1200V DC/800V AC Input Impedance : 10MV on all ranges except, 11MV on 4V

AC Current: 40A / 400A / 1000A Accuracy: ±(2.5% rdg + 10 dgt) on 2A / 20, ±(2.5% rdg + 10 dgt) Overload Protection: 1000A AC Max for 1 minute

Resistance: 400V, 4KV, 40KV, 400KV, 4MV, 40MV Accuracy:: ± (0.7% rdg + 4 dgt) on all ranges except ± (1.2% of rdg + 4 dgt) on 4MV ± (2.5% of rdg + 4 dgt) on 40MV Resolution : 0.1V to 0.01MV Test Current : 0.7mA on 400V, 0.1mA on 4KV, 30µA on 40KV, 4µA on 400KV Overload Protection: 500V DC/AC

Continuity Check Threshold Level : 40V Approx. Response Time : 1m Sec. Approx. Open Circuit Voltage : 0.4V Approx. Indication : ‘ ’ is displayed on LCD and buzzer sounds at continuity. Overload Protection : 500V DC / AC

Diode Test Measurement Current : 1.0 ± 0.6 mA Approx. Open Circuit Voltage : 0.4V Approx. Overload Protection : 500V DC / AC

Frequency: 10.00Hz, 50.00Hz, 500.0Hz, 5.000kHz, 50.00kHz, 500.0kHz Accuracy : ± (0.5% rdg + 2 dgt) Sensitivity : 3V Overvoltage Protection: 200V DC or AC peak

% Duty Cycle (Auto Ranging) Range : 1% to 90% Accuracy : ± (0.5% rdg + 5 dgt) Resolution : 0.1% Overvoltage Protection: 200V DC or AC peak

Capacitance (Auto Ranging) Range : 40nf, 400nf, 4mf, 40mf, 100mf Accuracy : ± (5% rdg + 10 dgt) Resolution : 0.01nf to 0.1mf
