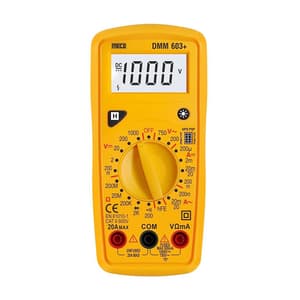

Meco 3-1/2 Digit / 2000 Counts Digital Multimeter, DMM 603+

Shop all Meco

SKU: ME.EL.MU.00293

Model: DMM603+

Roll over image to zoom zoom_in
  1. Meco 3-1/2 Digit / 2000 Counts Digital Multimeter, DMM 603+
Visit Meco Store keyboard_double_arrow_right
  • Weight: 155 Grams
  • Product Type: Multimeter
  • Display Digits: 3-1/2 Digit
  • Display Counts: 2000 Counts
See all product information chevron_right
  • receiptGST Invoice
  • headphonesCustomer Service
  • lockSecure Payments
  • policyReturns & Warranty
  • home_pinOrder Tracking
  • paymentsBuy in Installments

₹902.7 (Incl. of all taxes)

₹765+ ₹137.7 GST (18%)

MRP ₹900

SAVE 15%

3 Business Days

1 Pcs

9030

picture_as_pdfDownload Product Leafletkeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right

Highlights

  • Audible Continuity
  • Diode Test
  • hFE Test (Transistor Test)
  • Data Hold
  • LCD with Backlight
  • Low Battery Indication
  • Auto Power Off


Technical Data:

DC Voltage
  • Range: 200mV / 2 / 20 / 200 / 1000V
  • Accuracy: ±(0.5% rdg + 3 dgt) 200mV; ±(0.8% rdg + 5 dgt) 2V, 20V, 200V; ±(1.0% rdg + 5 dgt) 1000V
AC Voltage
  • Range: 200/750V (45~450Hz)
  • Accuracy: ±(2.0% rdg + 10 dgt)
DC Current
  • Range: 200 μA / 2mA / 20mA / 200mA / 20A
  • Accuracy: ±(1.8% rdg + 2 dgt) 200µA, 2mA, 20mA / ±(2.0% rdg + 2 dgt) 200mA / ±(2.0% rdg + 10 dgt) 20A
AC Current
  • Range: 20mA / 200mA / 20A (45~450Hz)
  • Accuracy: ±(1.8% rdg + 2 dgt) 20mA / ±(2.0% rdg + 2 dgt) 200mA / ±(2.0% rdg + 10 dgt) 20A
Resistance
  • Range: 200Ω / 2kΩ / 20kΩ / 200kΩ / 2MΩ
  • Accuracy: ±(1.2% rdg + 8 dgt) on all ranges, except / ±(1%rdg+10dgt) on 200Ω


Package Content:

  • 1x Digital Multimeter
  • 1 Pair x Test Leads
  • 2x 1.5V 'AAA' Batteries
  • 1x Instruction Manual


Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.

Specifications

SKUME.EL.MU.00293
Product TypeMultimeter
Model NoDMM603+
Display Digits 3-1/2 Digit
Display Counts 2000 Counts
DC Voltage Upto 1000V
AC Voltage Upto 750V
AC/DC Current Upto 20A
Resistance Upto 2MOhm
Power Supply 2x 1.5V AAA Battery
Battery Life 200 Hours Typical
Dimensions (mm) 160 x 76 x 32 mm
