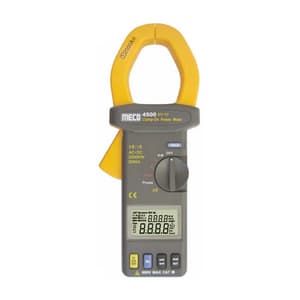

Meco 3 / 1 Phase Clamp - On TRMS Power Meter For AC / DC Measurement, 4500
Roll over image to zoom zoom_in
- Weight: 650 Grams
- Product Type: Clamp Meters
- Opening Jaw: Cable Dia 55 mm (max.)
- Bus Bar: 65 (D) x 24 (W) mm
- receiptGST Invoice
- headphonesCustomer Service
- lockSecure Payments
- policyReturns & Warranty
- home_pinOrder Tracking
- paymentsBuy in Installments
₹47264.9 (Incl. of all taxes)
₹40055+ ₹7209.9 GST (18%)
MRP ₹47124
SAVE 15%
3 Business Days
1 Pcs
90303390
picture_as_pdfDownload Product Leafletkeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
Highlights
3Phase / 1Phase TRMS Clamp-On Autoranging Power Meter for AC/DC Power Measurement (2000A, 2000kW) with PF, Phase Angle, Frequency & Memory for Recording. Jaw Opening - For Cable of 55mm Diameter / Bus Bar 65 x 24mm
Features:
- 3f4W, 3f3W, 3fBalanced, 1f2W, 1f3W
- AC + DC 2000KW(3f), 1200KW(1f)
- Dual displayKW+ PF,
- KVA+KVAR, V + A, V + Hz, A + Hz
- Phase AngleMeasurment (±900), Phase
- Sequence Indication (R, S, T)
- AC 600V, DC 600V, AC + DC 2000A
- Power Factor
- AC/DC Auto Detection
- TRMS Values
- Memory of 4 records
- Auto Range
Accessories:
- Carrying Bag x 1 Pc
- Users Manual x 1 Pc
- Battery (Installed) x 1 Pc
- Test Leads x 1 Pair
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| SKU | ME.EL.CL.00142 |
|---|---|
| Product Type | Clamp Meters |
| Model No | 4500 |
| Opening Jaw | Cable Dia 55 mm (max.) |
| Bus Bar | 65 (D) x 24 (W) mm |
| Power Supply | 9V Battery |
| Display | 2 x 4 Digits Dual Display |
| Type of Display | LCD |
| Range Selection | Auto |
| Overload Indication | OL |
| Power Consumption | 25mA (approx) |
| Sampling Time | 0.5 sec. (V and A), 1.6 sec. (W) |
| Operating Temp. | 40° to 500° C |
| Operating Humidity | <85% RH |
| Storage Temperature | -20°C to 60°C |
| Storage Humidity | <75% RH |
| Dimensions | 271 x 112 x 46 mm |
