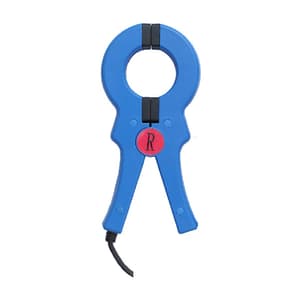

MECO CCT Series of Clamp-On Current Transformers are designed for fast and easy installation. Clamp-On Current Transformer uses a Permalloy Magnetic Core or Silicon Amorphous Core, with characteristics of small size, high precision, good stability and strong anti-interference ability. These sensors give a standard AC Current output which is suitable to conveniently measure on Single Phase / Three Phase Circuits with good stability and high anti-interference ability.

It is ideal for power and energy measurement with high precision and small phase angle error in applications related to electric power, communication, monitoring and control. It can measure a variety of electric parameters without removing cables. The Standard length of Output Leads is 2 Meters. However, Output and Leads Cable can be customized.

Features:

• Clamp - On Design, Fastening Safe, Easy to Install, Portable.
• Wide Inner Window, Allowing Clamping of Big Cables or Bus - Bar
• Output Connection UL1015 22AWG Wire (Twisted Wire) 2m

Application:

• Current Measurement, Monitoring and Protection for Electrical Wiring and Equipment.
• Current and Power Measurement for Electric Motors, Lighting, Air Compressor, Heating and Ventilation System, Air-Condition Equipment and Automation-Control System.
• Current, Power and Energy Monitoring Device

Technical Data:

Model	Rated Input (A AC)	Rated Output	Accuracy	Window Size (mm) (ID)
CCT50	0 - 100A	5A AC	2.5% < 60A, 1.0% >60A	50
	0 - 500A		1.0%
	0 - 1000A
